C1 Clutch Drum TOYOTA / LEXUS Hybrid PC60 - 4 friction discs

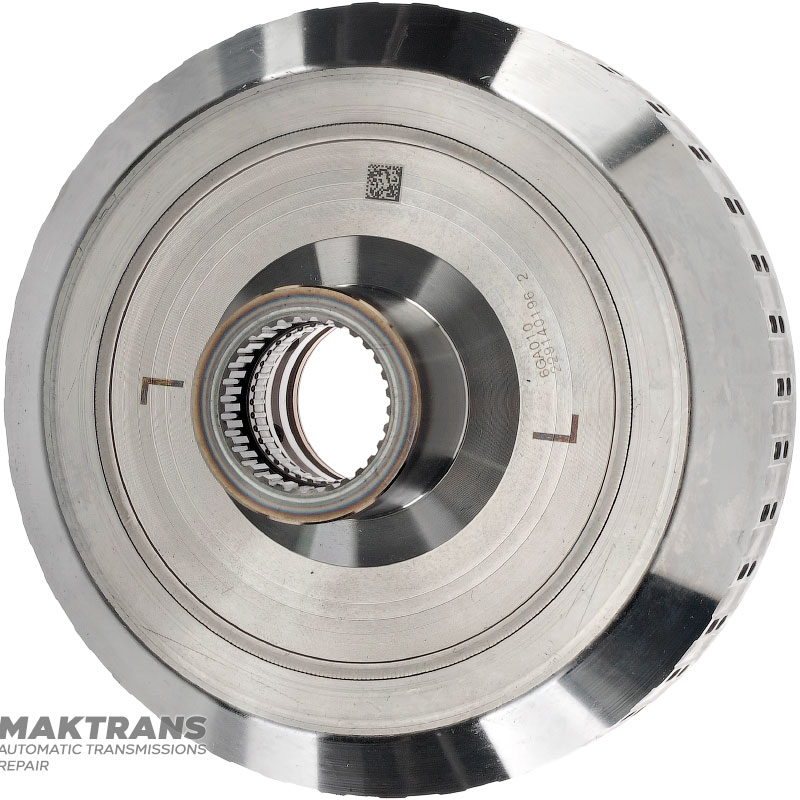

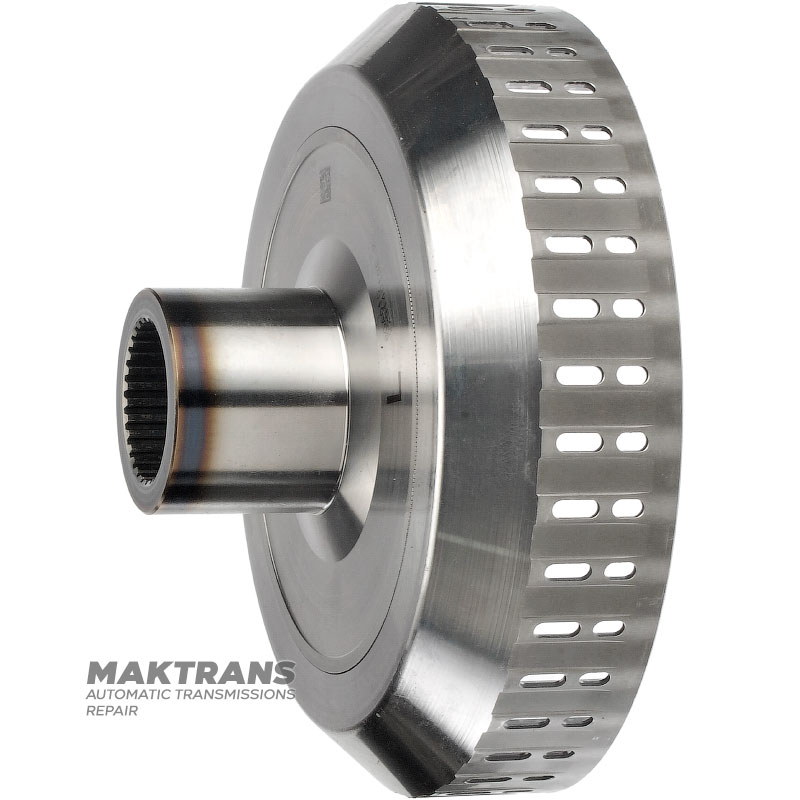

C1 Clutch Drum:

• Overall height - 84 mm;
• Drum outer diameter - 163.10 mm;
• Neck height - 39 mm;
• The outer diameter of the neck is 45.90 mm;
• Number of splines on the inner side of the neck - 31 pcs.;
• Height from piston to retaining ring - 22 mm;

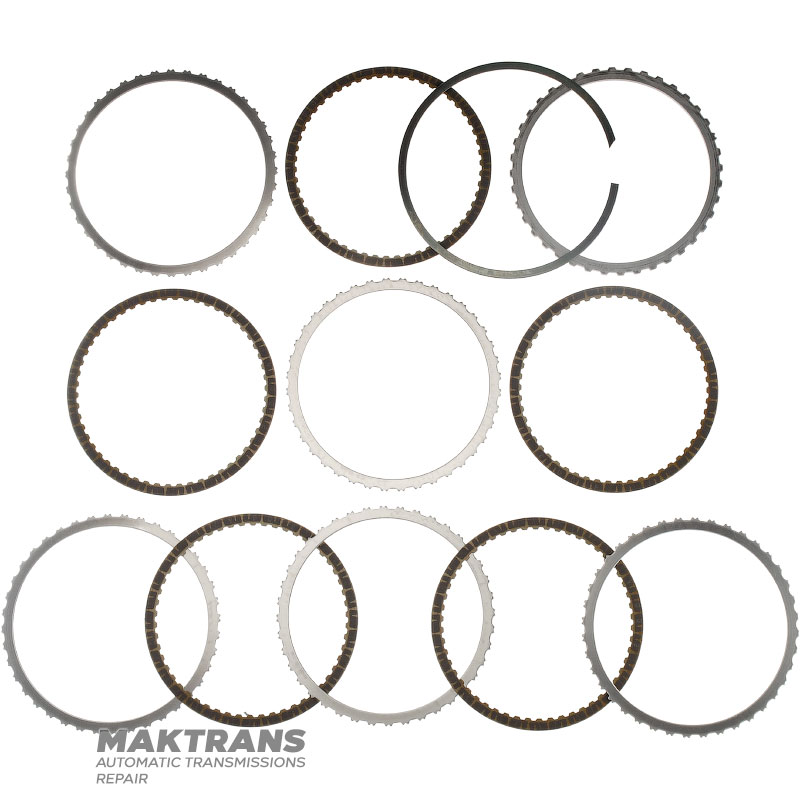

C1 Clutch Steel and Friction Disc Set:

• The total thickness of the set is 21.05 mm;

Support disk:

• Thickness - 4.45 mm;
• Inner diameter - 140.55 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 154.20 mm;
• Number of teeth - 54 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 140.60 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 5 pcs.;
