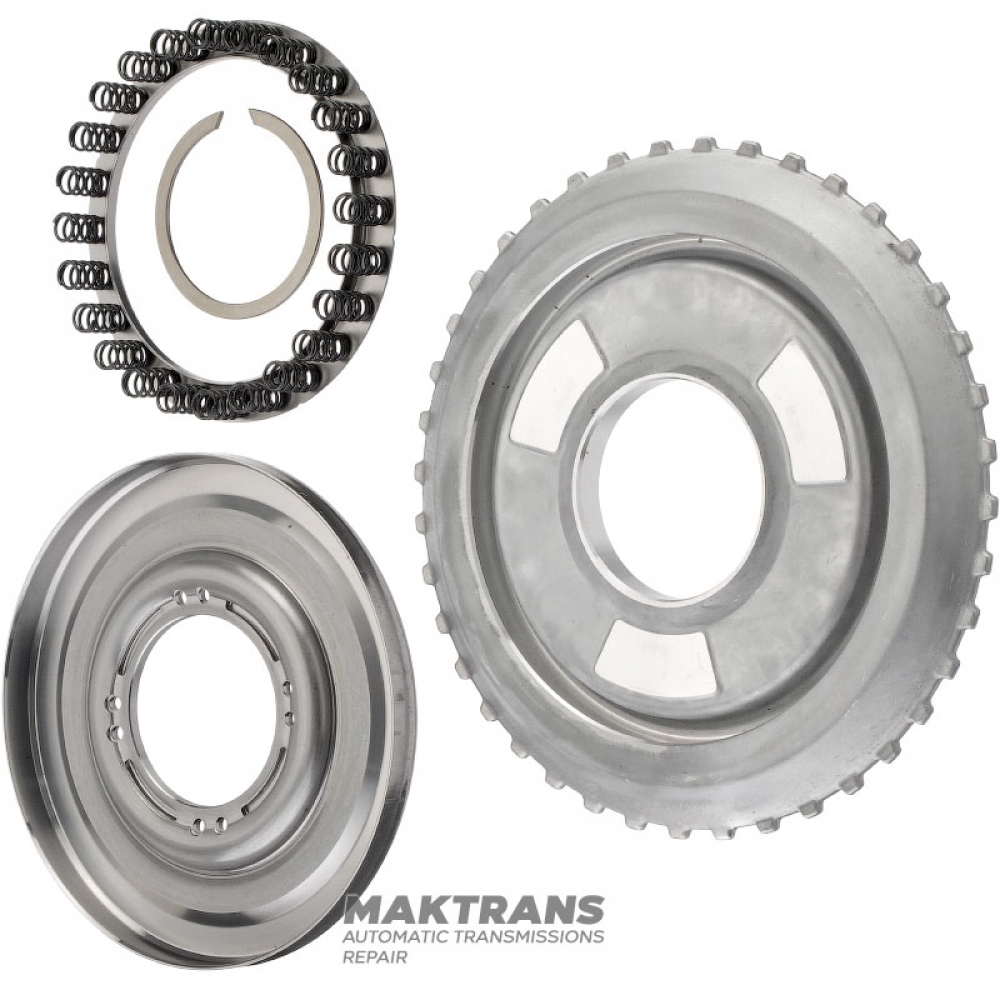

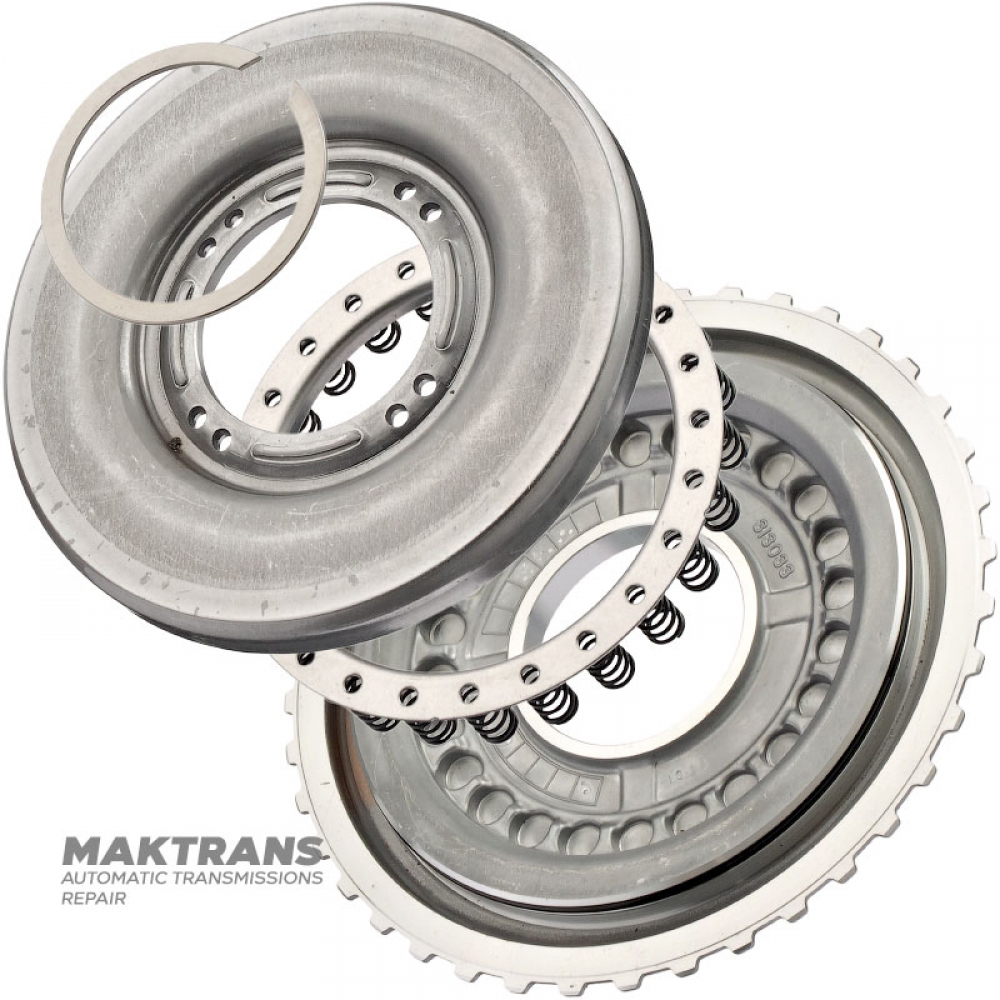

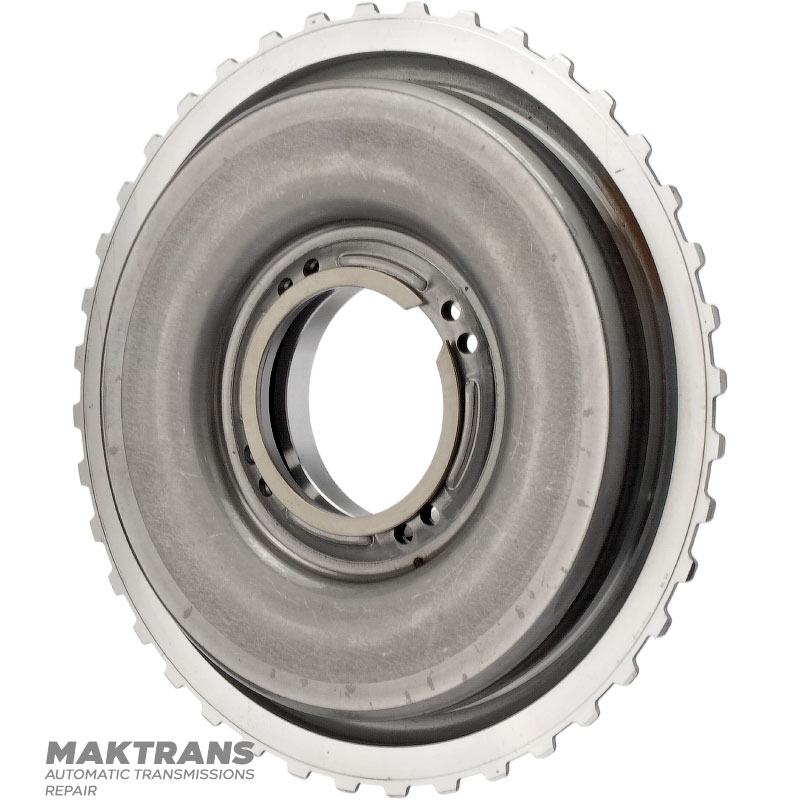

C1 Clutch Piston with Return Spring - Aisin Warner TG-81SC

Aluminum piston:

• Total height - 15 mm;
• Number of teeth - 40 pcs.;
• Outer diameter of gear ring - 162.65 mm;
• Outer diameter of rubber ring - 126.95 mm;
• Inner diameter - 50.70 mm;

Steel piston body (cylinder):

• Overall height -
• Outside diameter -
• Inner diameter -

Return spring block:

• Overall height - 15.35 mm;
• Outer body diameter - 101.60 mm;
• Inner diameter - 80.50 mm;
• Number of springs - 24 pcs.;
