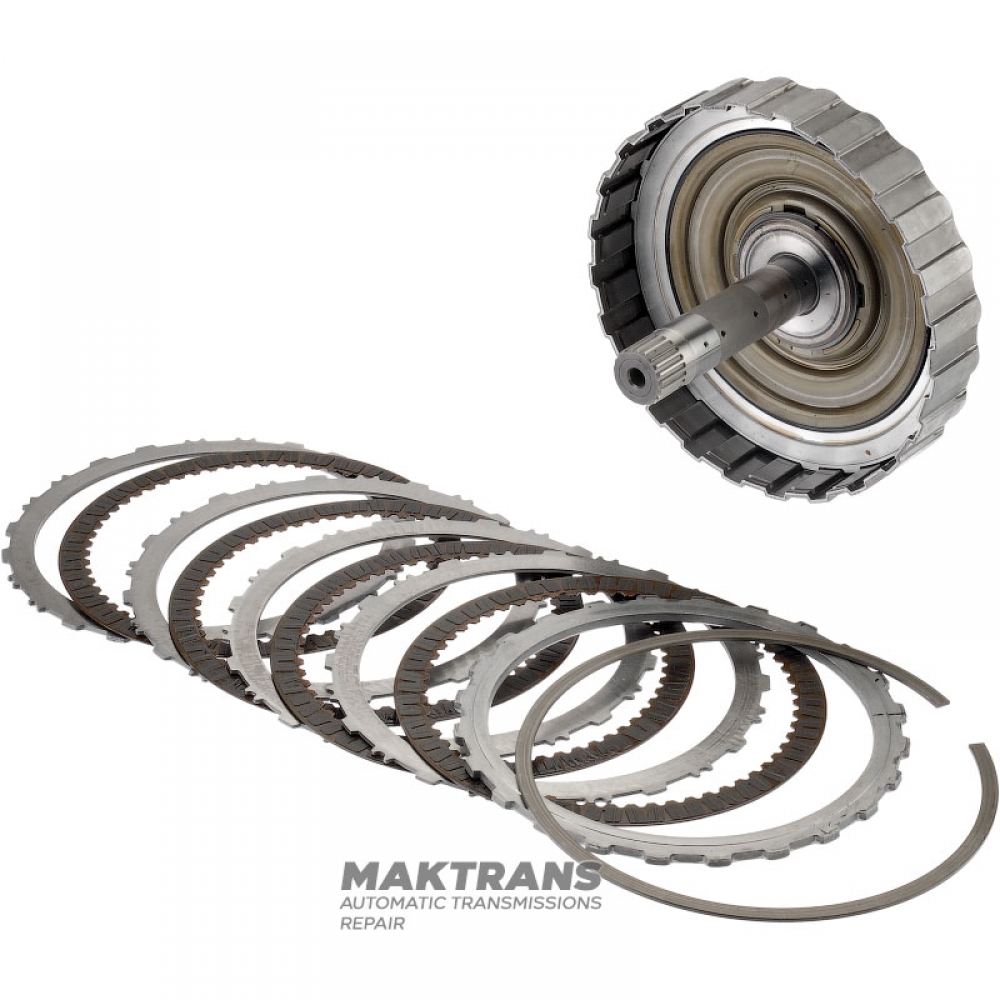

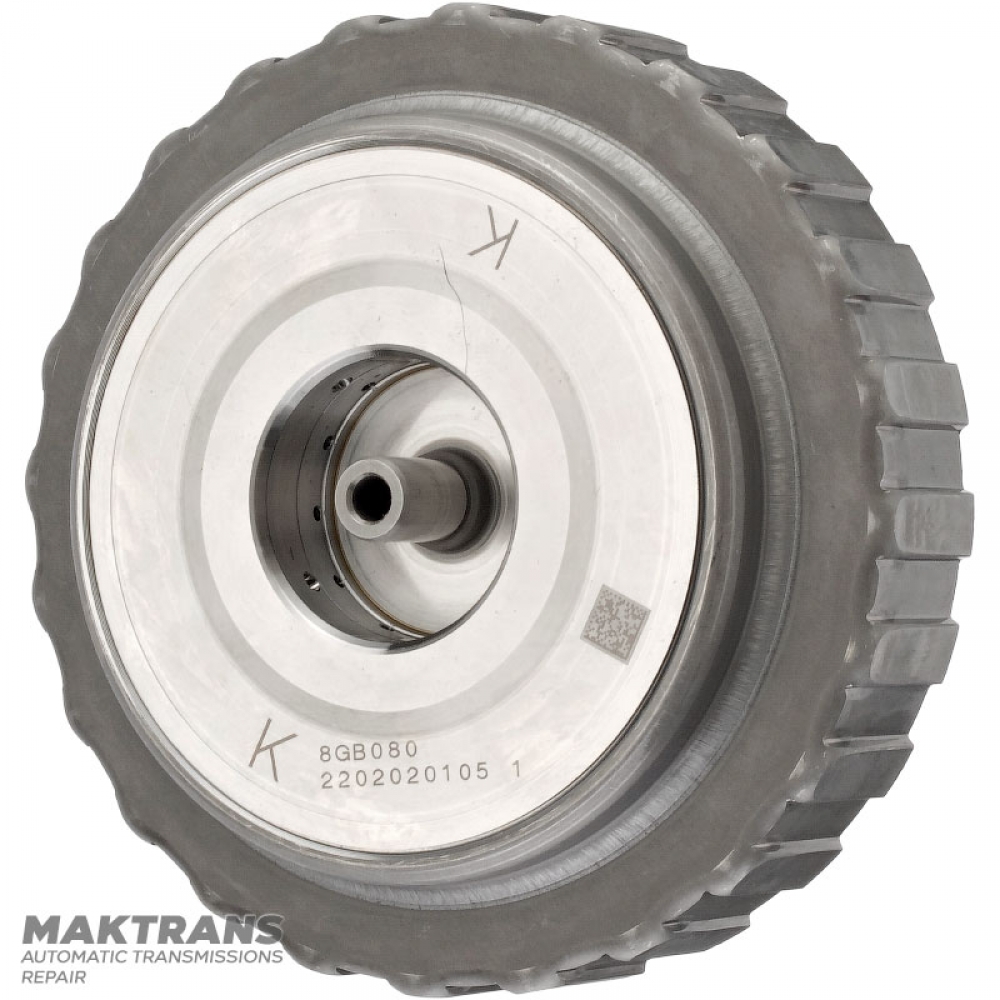

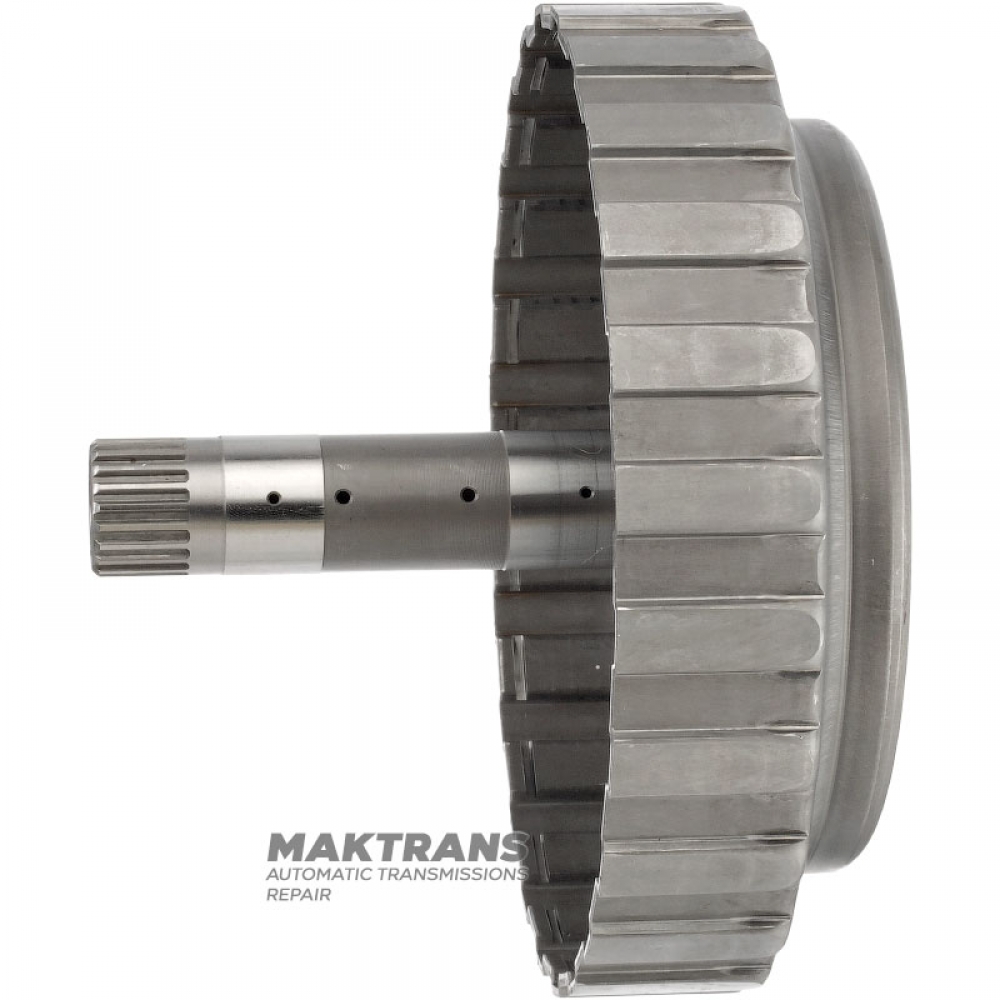

C2 Clutch Drum (from new transmissions) AISIN WARNER AWF8G30, VAG A1300 (09S) - total height 123 mm, 4 friction discs, without bearings

• Overall height - 123 mm;
• Number of splines on the shaft - 21 pcs.;
• The outer diameter of the splined part is 21.50 mm;
• Drum outer diameter - 155.30 mm;
• Height from piston to retaining ring - 18 mm;
• Pilot diameter (on the back side of the drum) - 13 mm;

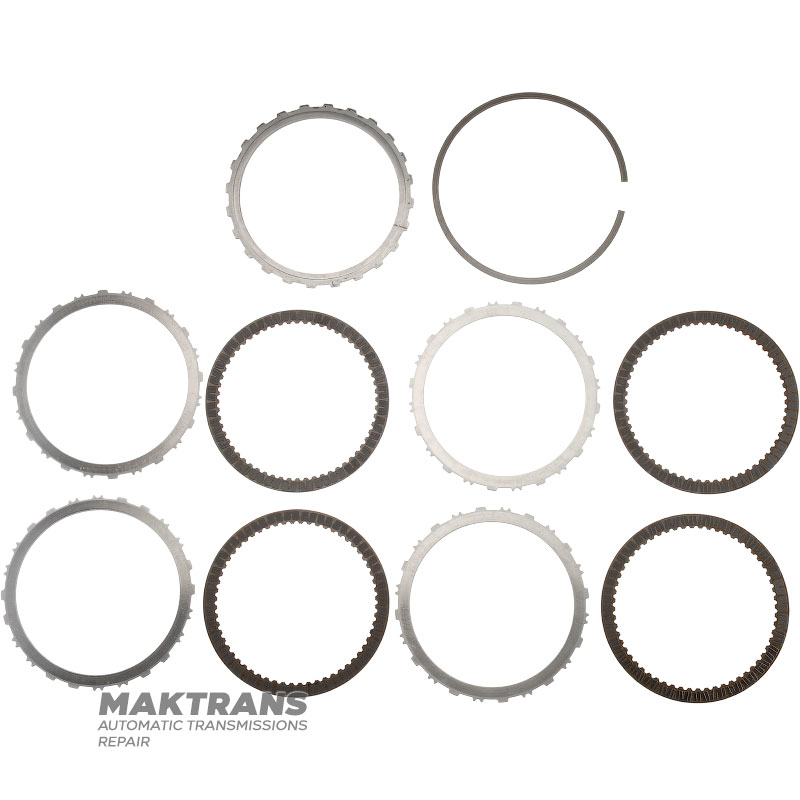

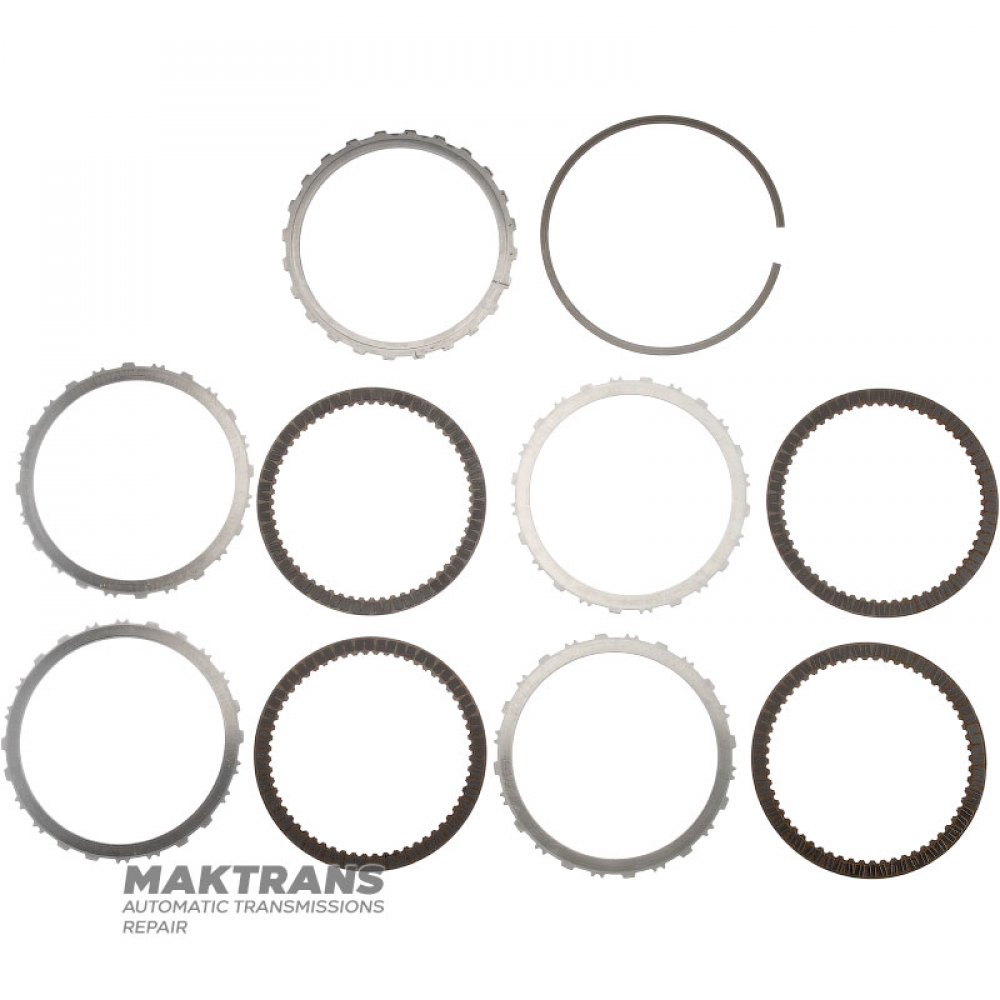

Set of steel and friction discs:

• The total thickness of the set is 18 mm;

Support disk:

• Thickness - 3.85 mm;
• Inner diameter - 127 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 145.45 mm;
• Number of teeth - 60 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 127 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 1.85 mm;
• Inner diameter - 127 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;
