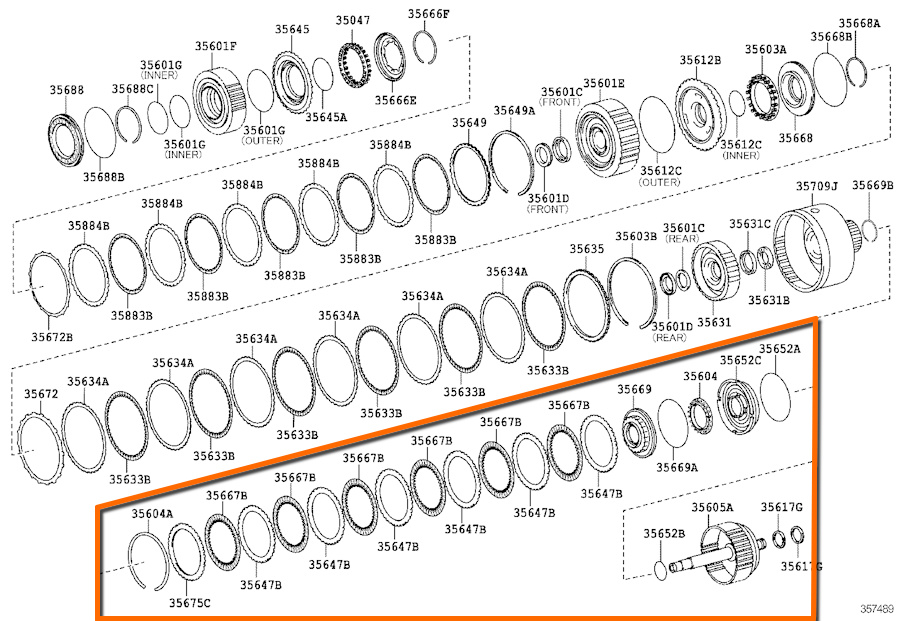

C2 Clutch Drum TOYOTA / LEXUS AA80E, AA80F - 6 friction discs (total kit thickness 28.80 mm)

C2 Clutch Drum:

• Total shaft length - 261 mm;
• Number of splines on the shaft - 24 pcs.;
• The outer diameter of the splined part is 25.95 mm;
• Outer diameter of the working parts of the shaft - 22 mm | 28.70mm | 29.45 mm;
• Outer diameter over Teflon rings - 24.90 mm;
• Drum outer diameter - 147.90 mm;
• Height from piston to retaining ring - 30 mm;

C2 Clutch Steel and Friction Disc Set:

• Total thickness of the package - 28.80 mm;

Support disk:

• Thickness - 4.60 mm;
• Number of teeth - 36 pcs.;
• Inner diameter - 114.40 mm;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.05 mm;
• Number of teeth - 42 pcs.;
• Outer diameter - 136.65 mm;
• Number of discs in the set - 6 pcs.;

Steel disk:

• Thickness - 2 mm;
• Number of teeth - 36 pcs.;
• Inner diameter - 114.25 mm;
• Number of discs in the set - 6 pcs.;

Tags: 3560550020, 3560450020, 3565250010, 3566950010, 3564750020, 3566750070, 3563550180, 9052199144
