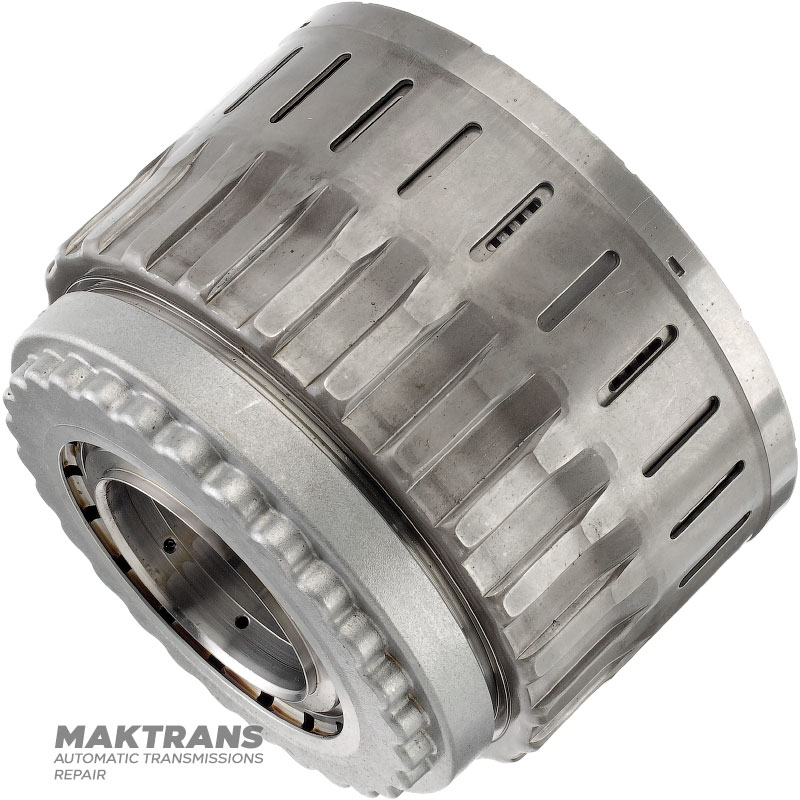

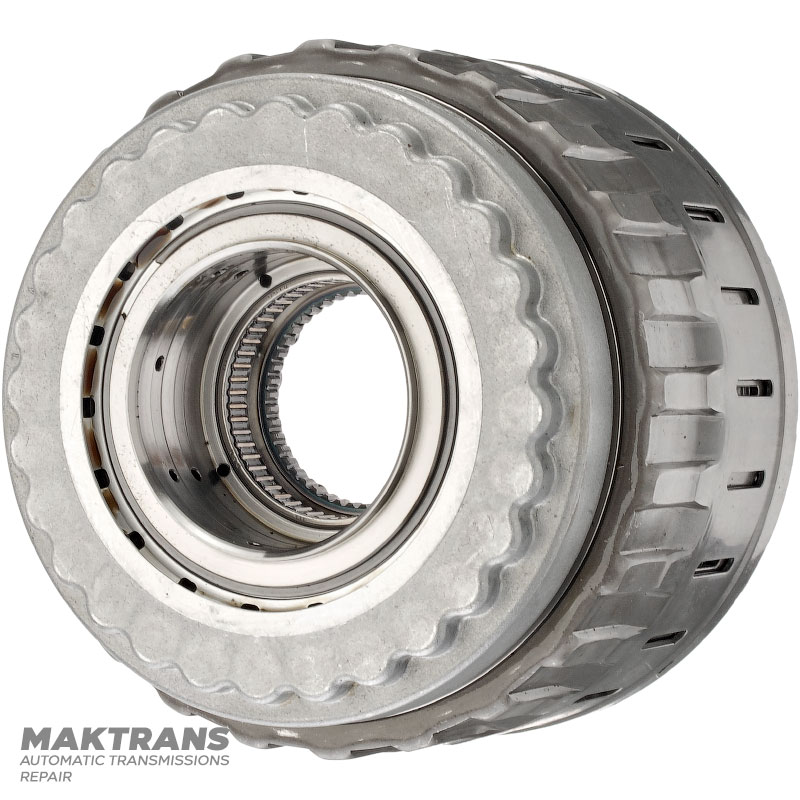

C2/C3 Clutch Drum TOYOTA, LEXUS A960E, A960F — C2 Clutch (5 friction discs), C3 Clutch (5 friction discs)

Drum C2 / C3 Clutch:

• Total height - 120 mm;
• Number of splines on the inner side - 48 pcs.;
• Drum outer diameter - 170.20 mm;
• Inner diameter under the hub - 67.30 mm;

C2 Clutch Drum:

• Height from piston to retaining ring - 22 mm;

C3 Clutch Drum:

• Height from stopper to drum edge - 27 mm;

C3 Clutch Steel and Friction Disc Set:

• Total thickness of the set (without the supporting aluminum disk) - 24.05 mm;

Support disk (aluminum):

• Thickness - 3.10 mm;
• Inner diameter - 137.20 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 1 pc.;

Support disk:

• Thickness - 3.10 mm;
• Inner diameter - 137.20 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 151.80 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 2.40 mm;
• Inner diameter - 137.25 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 4 pcs.;

Pressure disc:

• Thickness - 3.05 mm;
• Inner diameter - 137.25 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 1 pc.;

Spring disc:

• Thickness - 1.40 mm;
• Inner diameter - 139.35 mm;
• Number of teeth - 8 pcs.;
• Number of discs in the set - 1 pc.;

C2 Clutch Steel and Friction Disc Set:

• The total thickness of the set is 20.60 mm;

Support disk:

• Thickness - 3.50 mm;
• Inner diameter - 139.25 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 151.80 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 5 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 139.20 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 5 pcs.;

Tags: 35667-22030, 3566722030, 35677-22100, 3567722100, 3504822010, 3560122010, 3568822010, 3504722010, 3565222040, 3560422010, 3567222030, 3565922020
