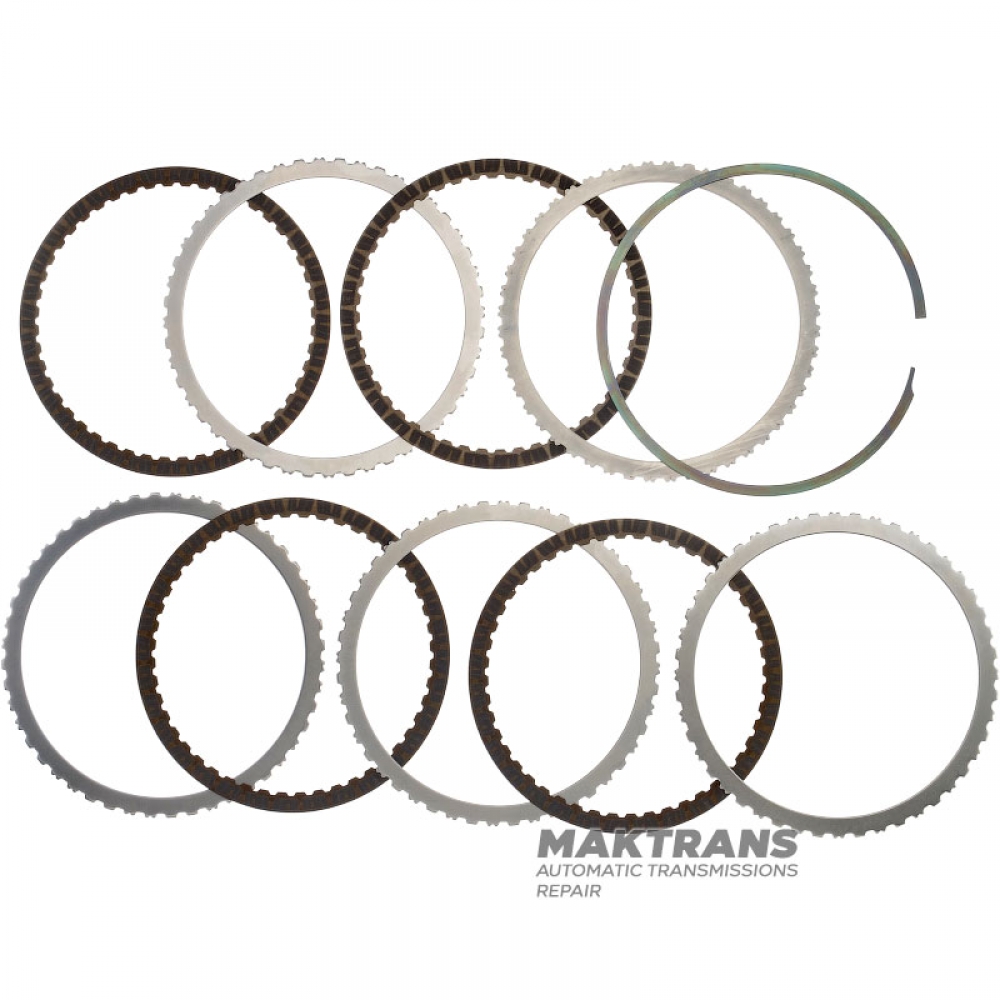

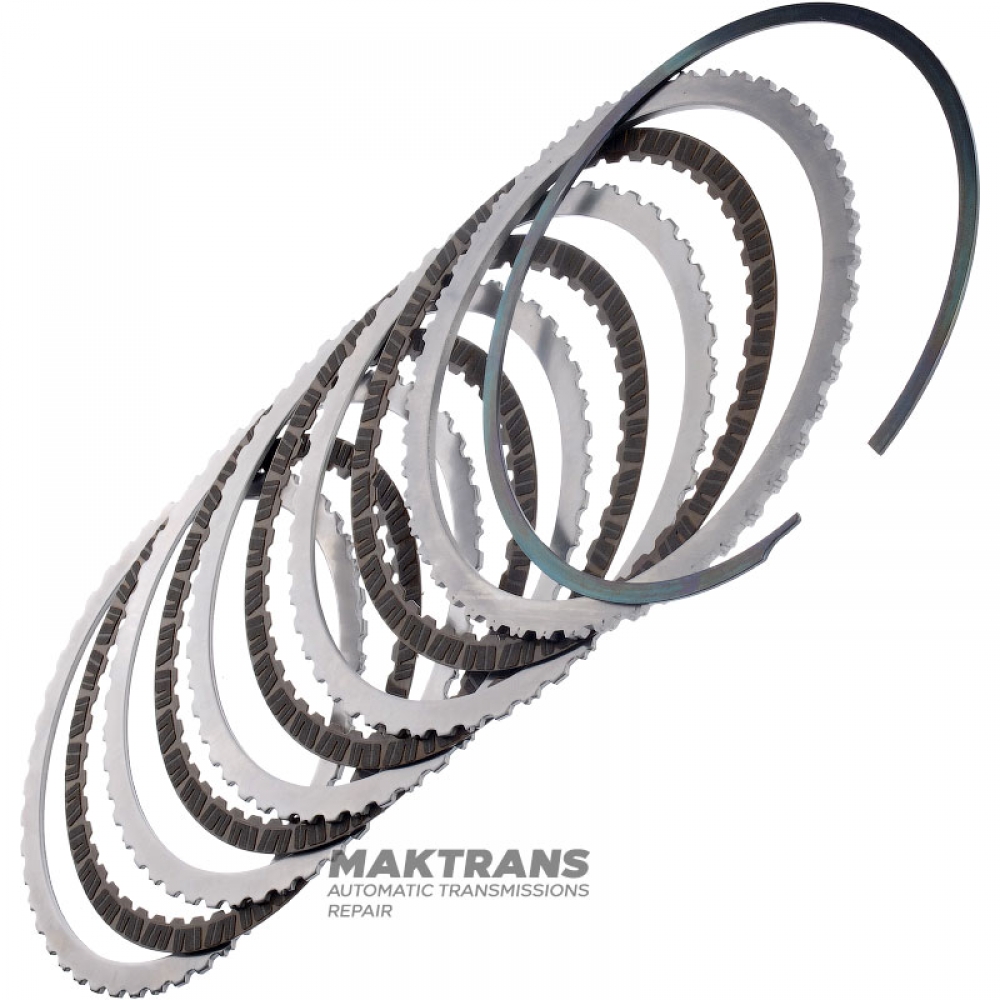

C3 Clutch Aisin Warner AWF8G45 Steel and Friction Disc Set - 4 Friction Discs (Total Set Thickness 18.40mm)

• The total thickness of the set is 18.40 mm;

Support disk:

• Thickness - 3.60 mm;
• Inner diameter - 157.15 mm;
• Number of teeth - 47 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 175.15 mm;
• Number of teeth - 47 pcs.;
• Number of teeth in the set - 4 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 157.55 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 3 pcs.;

Pressure disc:

• Thickness - 3 mm;
• Inner diameter - 140.60 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;
