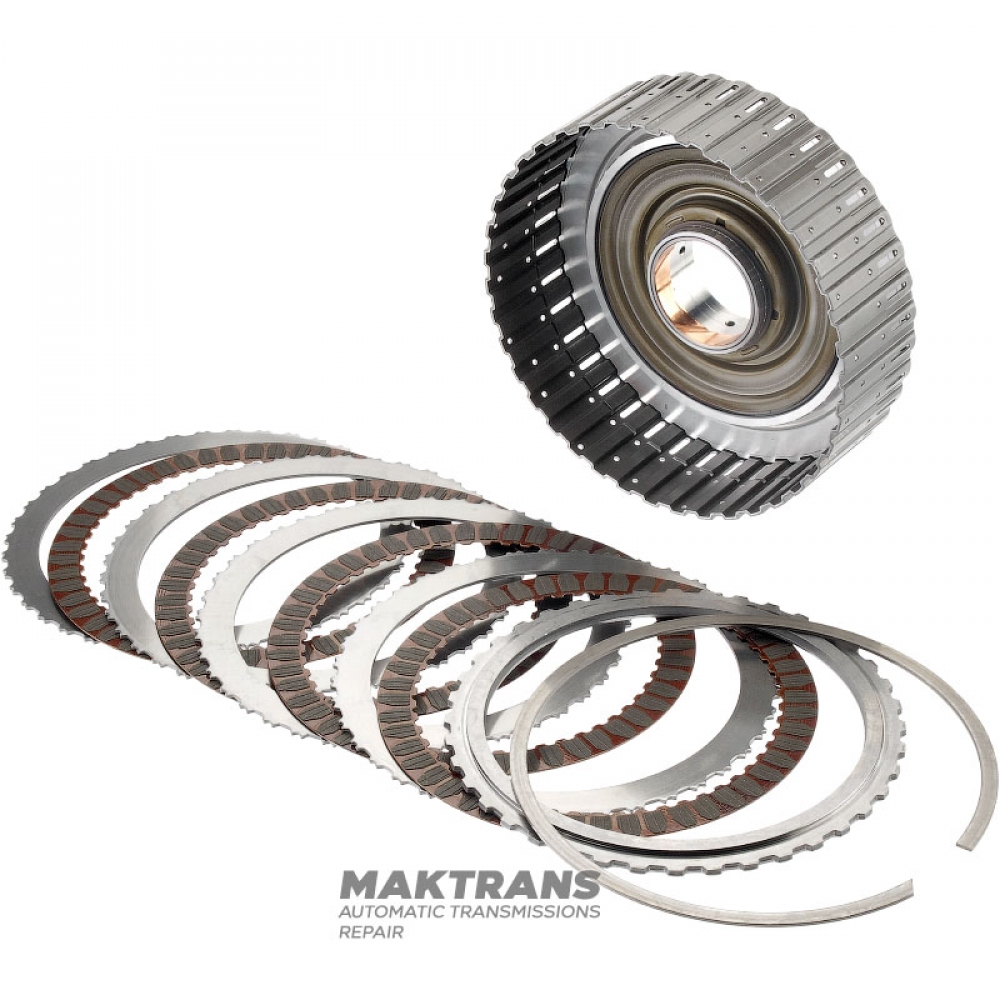

C3 Clutch Drum TOYOTA / LEXUS Hybrid PC60 - 4 friction discs

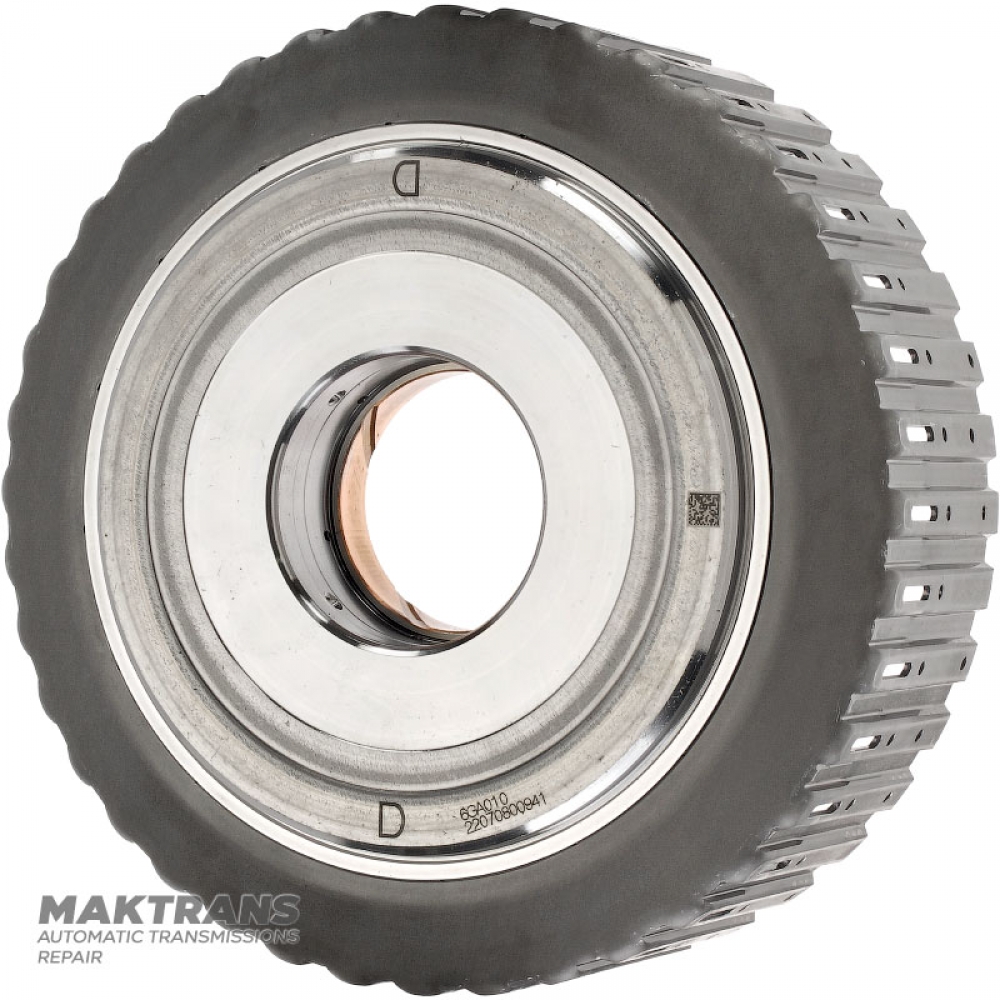

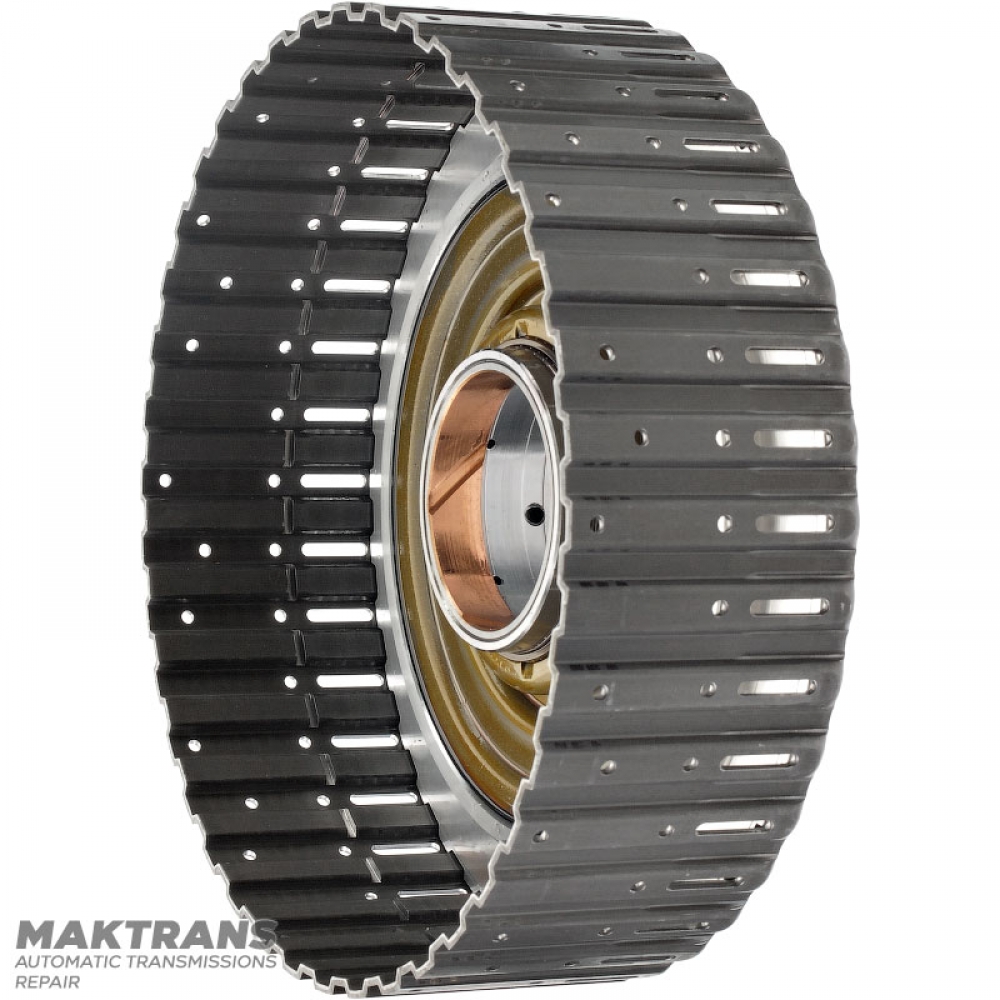

C3 Clutch Drum:

• The total height of the banana is 65 mm;
• Drum outer diameter - 175.65 mm;
• Inner diameter under the hub - 51.05 mm;
• Height from piston to retaining ring - 17.50 mm;

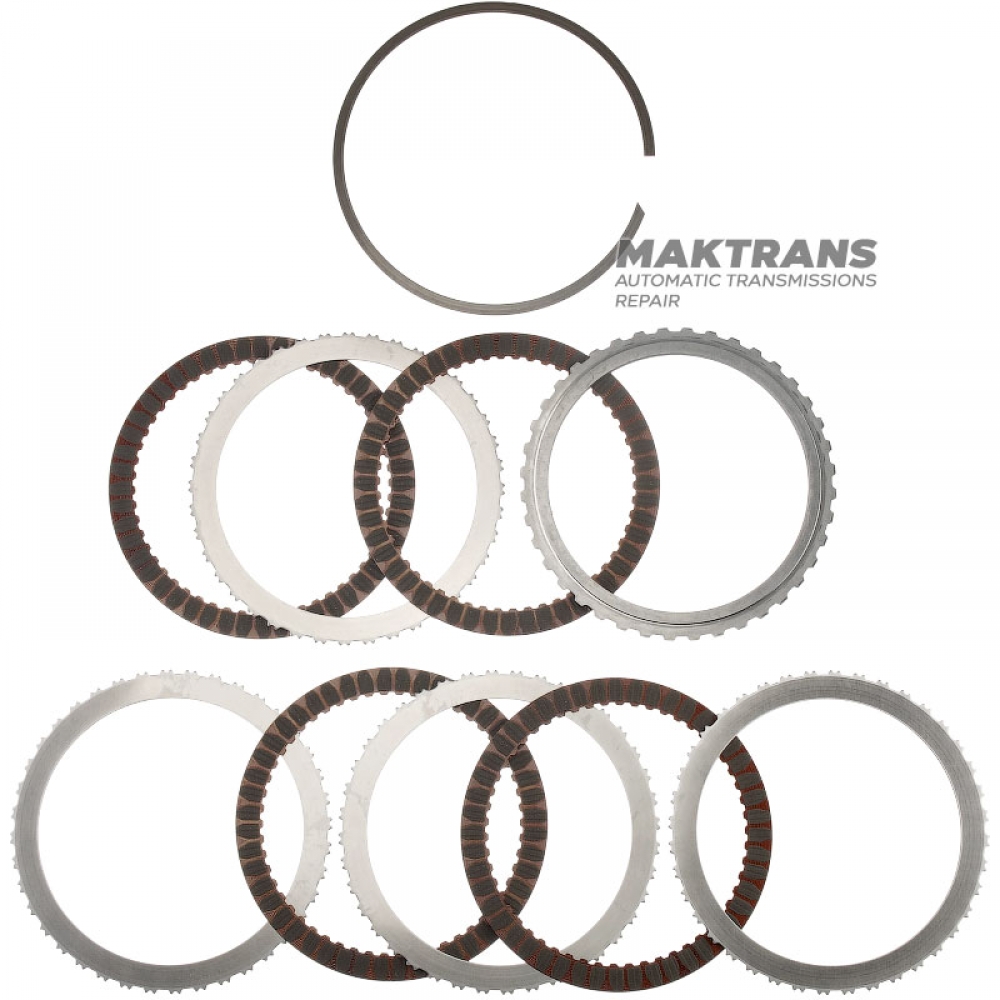

C3 Clucth Steel and Friction Disc Set:

• The total thickness of the set is 16.90 mm;

Support disk:

• Thickness - 5.30 mm / 3.25 mm;
• Inner diameter - 140.55 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 166.35 mm;
• Number of teeth - 54 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.85 mm;
• Inner diameter - 140.60 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 4 pcs.;
