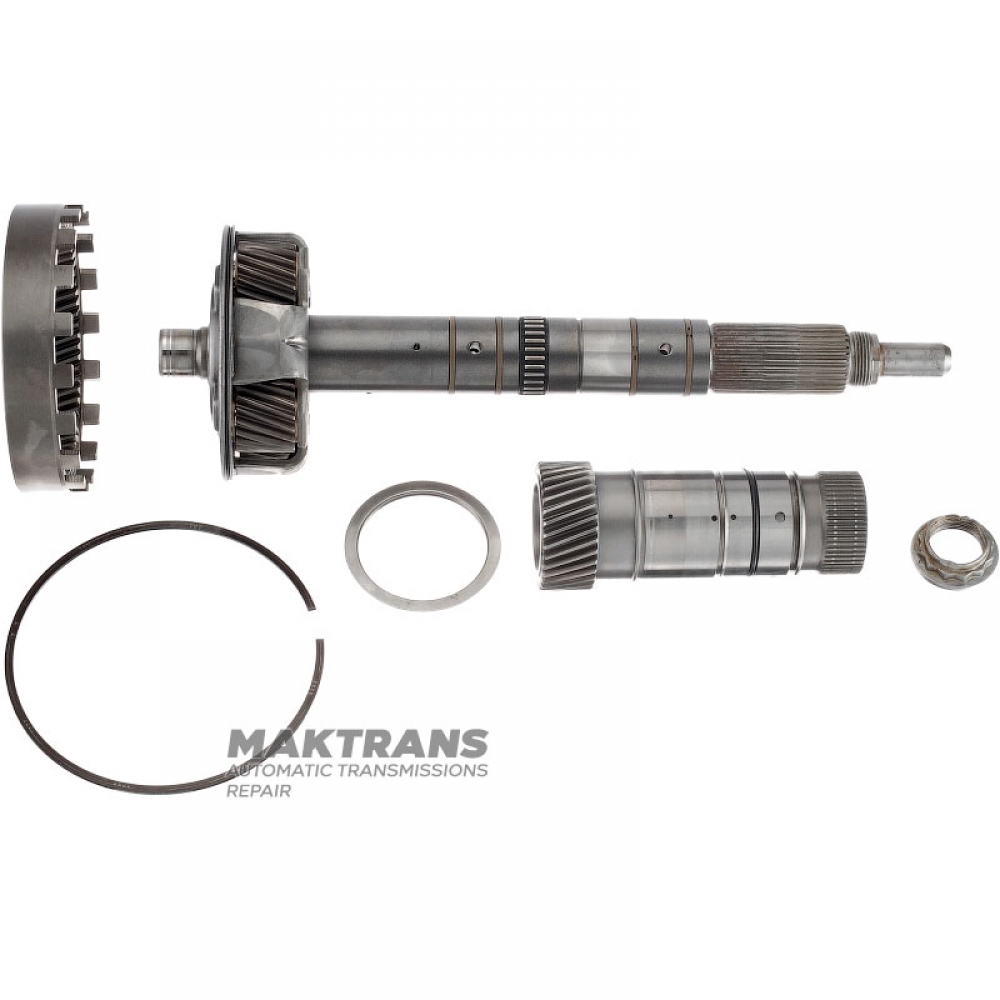

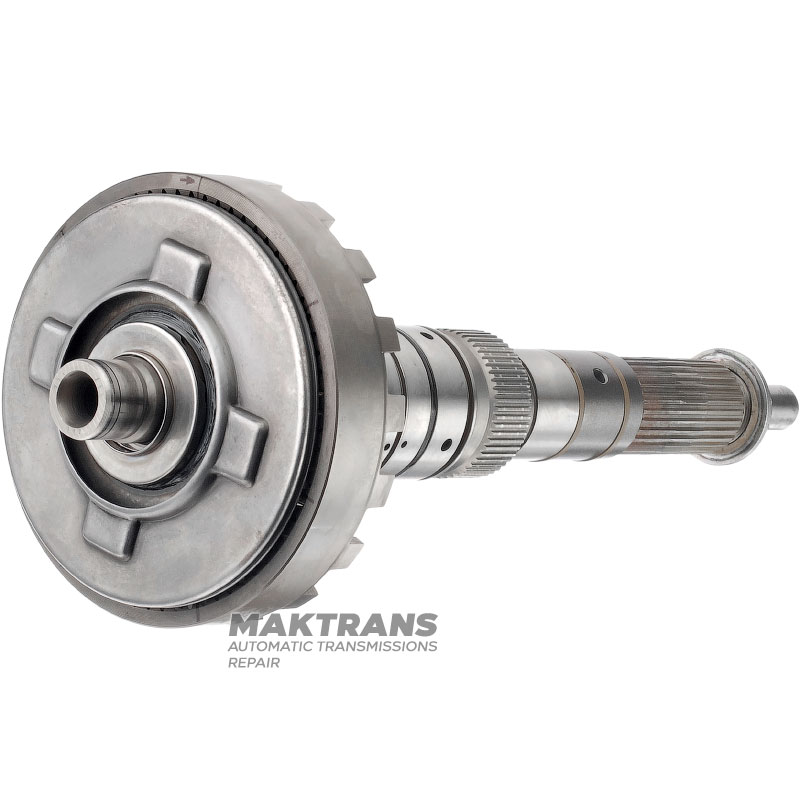

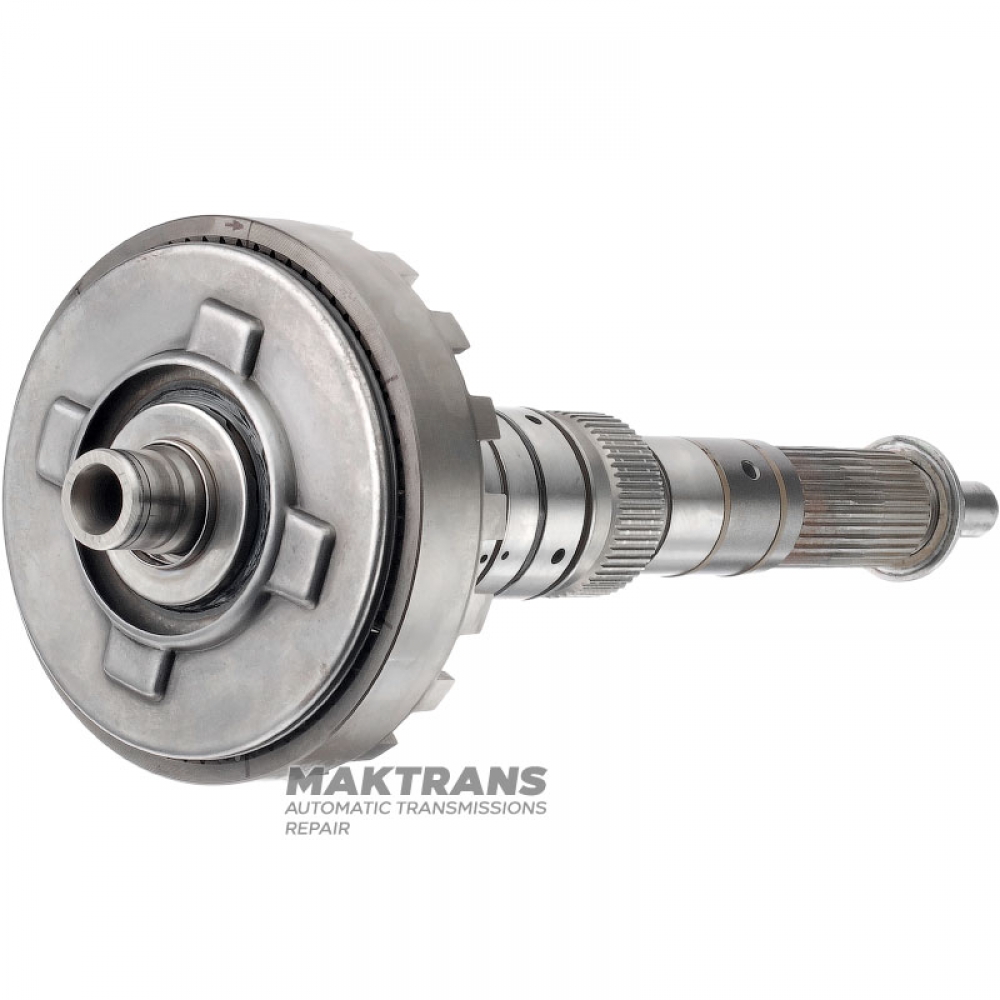

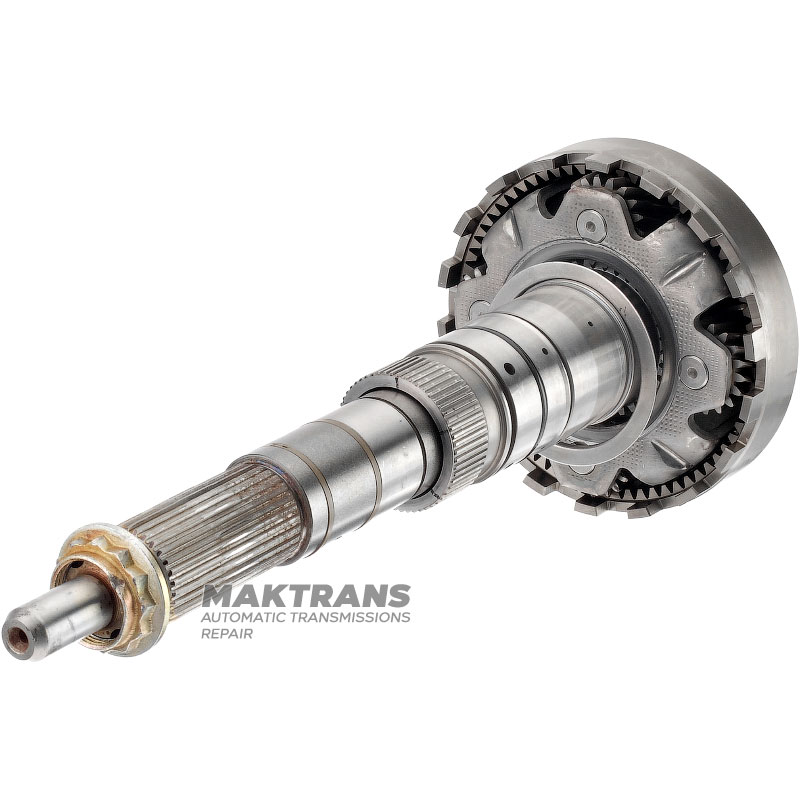

Center planetary gear / output shaft (RWD) Mercedes-Benz 722.6 - 4 pinions (18 teeth per pinion), 34 teeth (external Ø 56.50 mm) sun gear, 70 teeth ring gear

Planetary gear/output shaft:

• Total height - 350 mm;
• Spout length - 33 mm;
• Number of splines - 30 pcs.;
• The outer diameter of the spline part is 31.65 mm;
• The length of the spline part is 60 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 18 pcs.;
• Satellite height - 25 mm;

Sun gear:

• Total height - 142 mm;
• Number of splines - 56 pcs.;
• The outer diameter of the spline part is 45.70 mm;
• Number of teeth on the gear - 34 pcs.;
• Gear outer diameter - 56.60 mm

Ring gear:

• Overall height - 29.45 mm;
• Outer diameter - 126.70 mm;
• Number of teeth - 70 pcs.;
