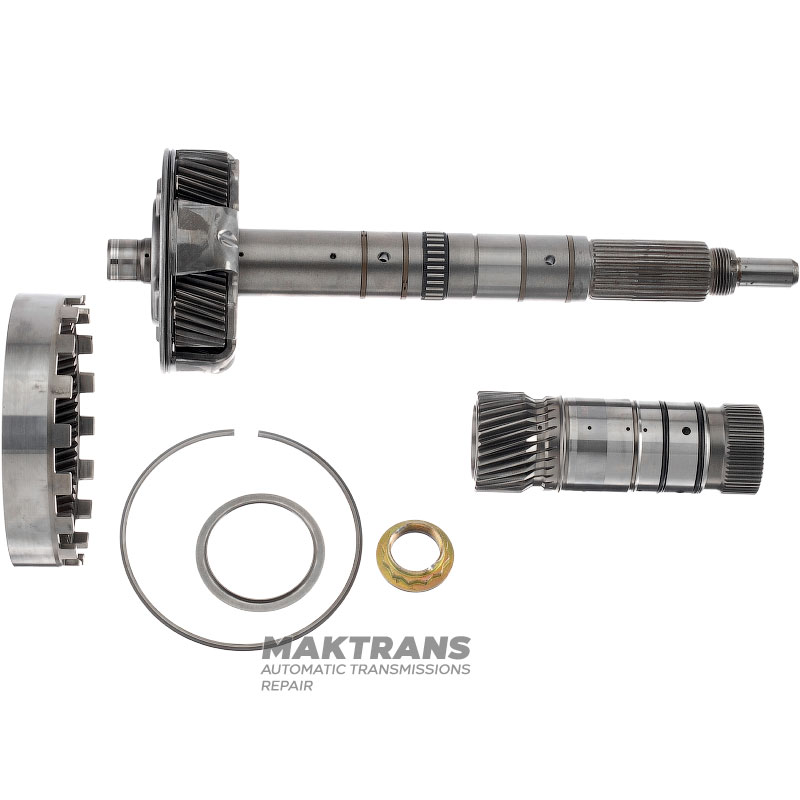

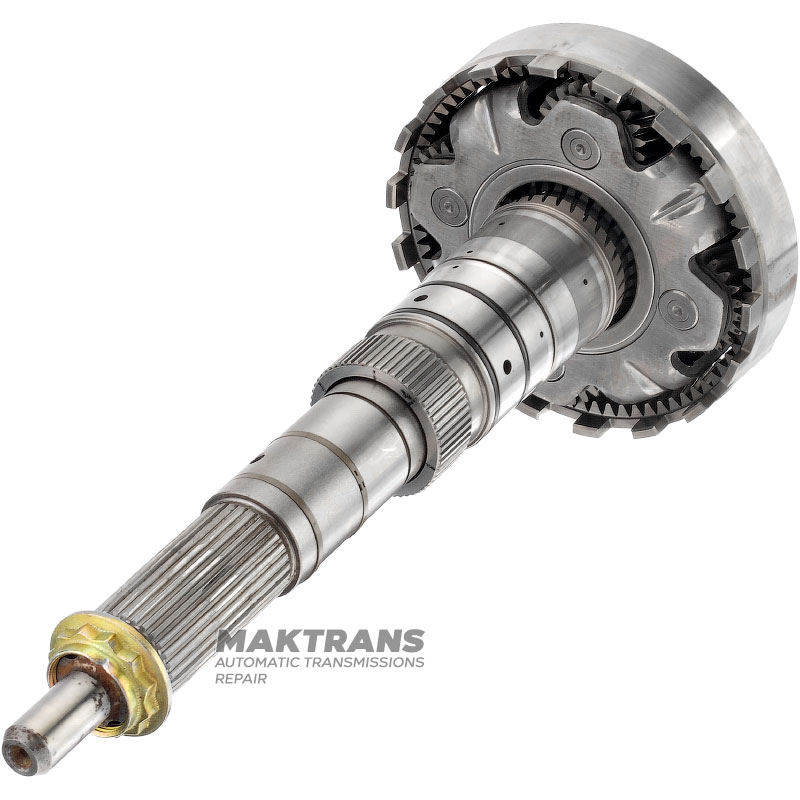

Center planetary gear / output shaft (RWD) Mercedes-Benz 722.6 - 4 pinions (22 teeth per pinion), 30 teeth (out. Ø 50.95 mm) sun gear, 74 teeth ring gear

Planetary gear/output shaft:

• Total height - 350 mm;
• Spout length - 33 mm;
• Number of splines - 30 pcs.;
• The outer diameter of the spline part is 31.65 mm;
• The length of the spline part is 60 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellite is 22 pcs.;
• Satellite height - 25 mm;

Sun gear:

• Total height - 142 mm;
• Number of splines - 56 pcs.;
• The outer diameter of the spline part is 45.70 mm;
• The number of teeth on the gear is 30 pcs.;
• Gear outer diameter - 50.95 mm

Ring gear:

• Overall height - 31.45 mm;
• Outer diameter - 131.95 mm;
• Number of teeth - 74 pcs.;
