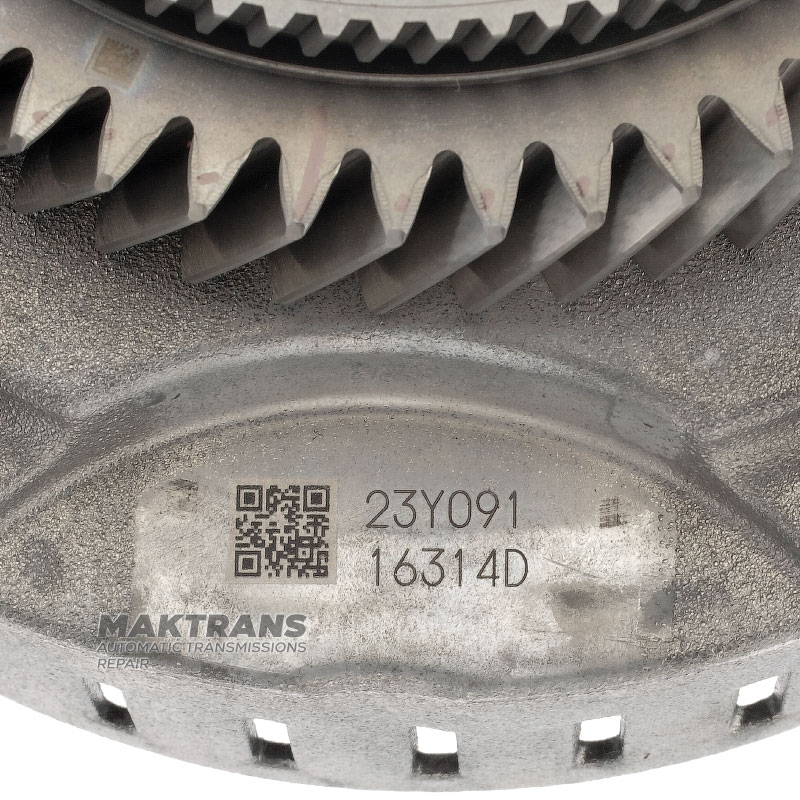

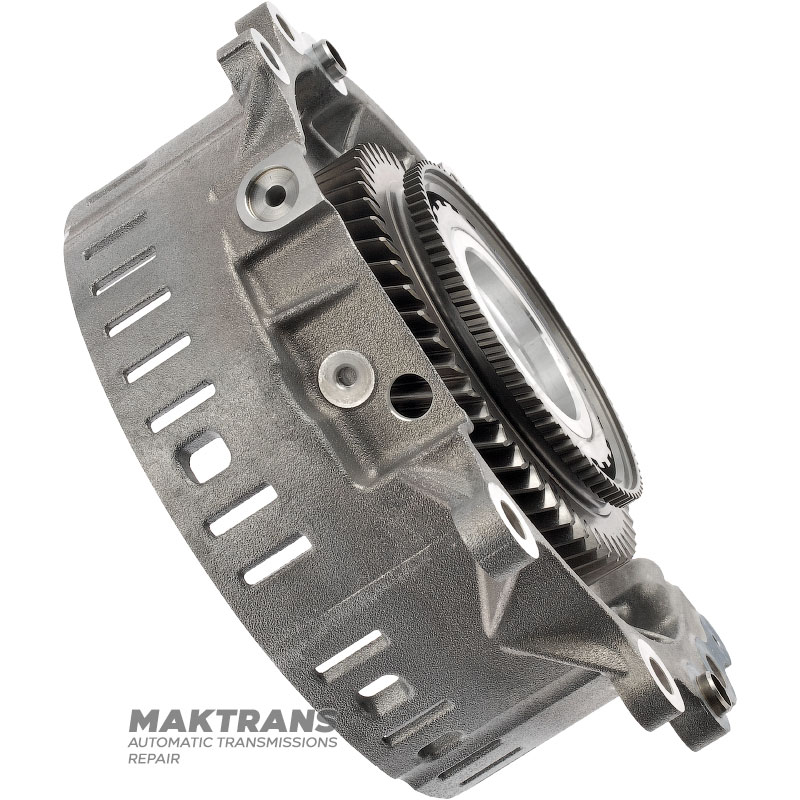

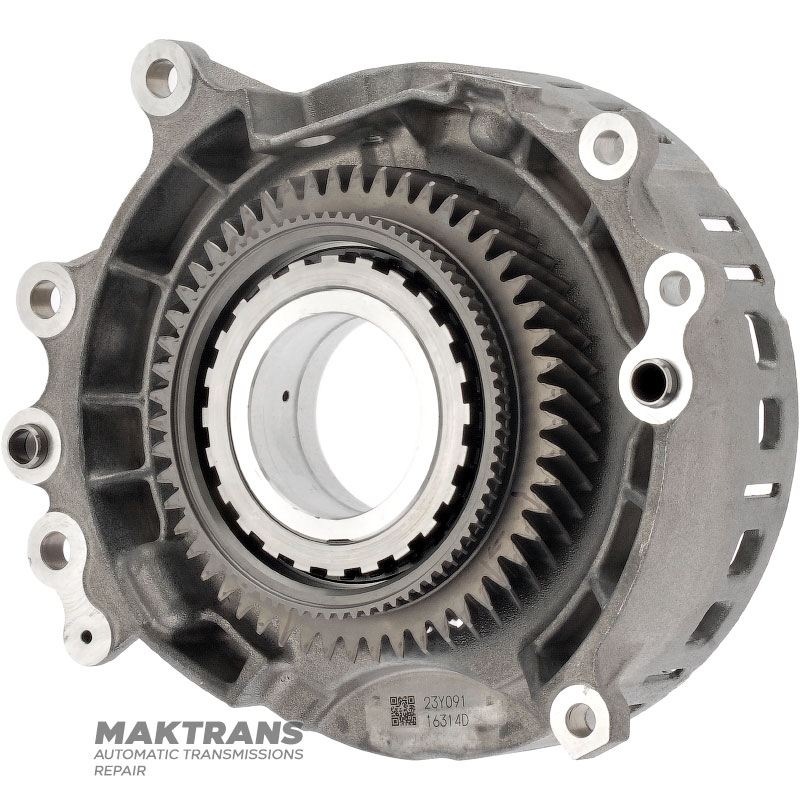

Central Caliper, B1 Brake Drum AISIN WARNER AWF8G30 - Removed from New Transmissions - 53 Teeth Helical Gear, B1 Brake Drum (4 Friction Discs)

• Overall height - 87 mm;
• The outer diameter of the neck for the ball bearing race is 75.40 mm;
• B1 Brake drum outer diameter - 203.60 mm;
• Height from piston to retaining ring B1 Brake - 20 mm;

Helical gear:

• Number of teeth - 53 pcs.;
• Gear outer diameter - 141.65 mm;

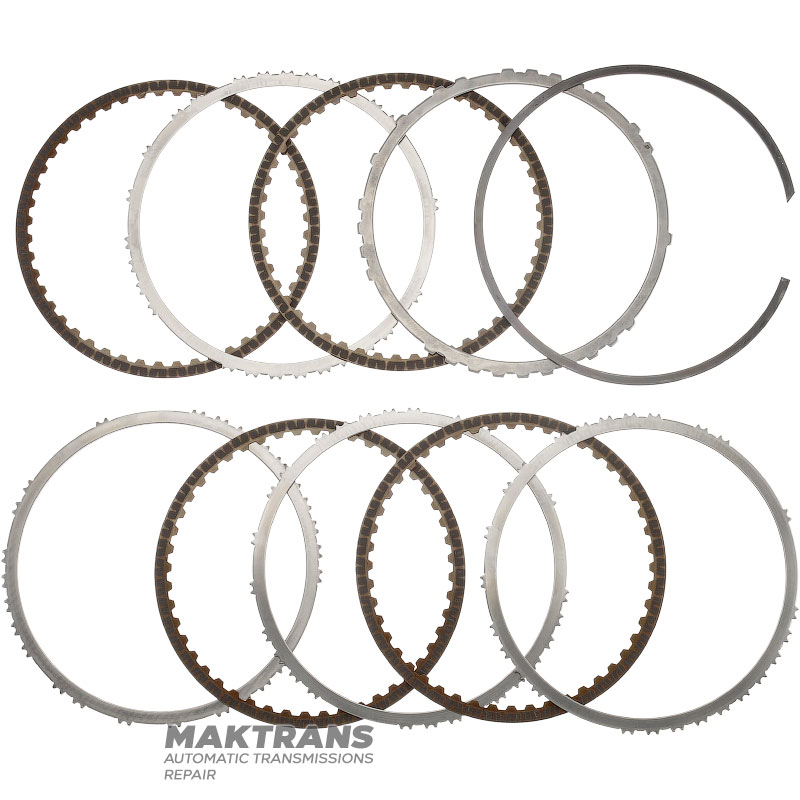

B1 Brake Steel and Friction Disc Set:

• The total thickness of the set is 19 mm;

Support disk:

• Thickness - 4.20 mm;
• Inner diameter - 175.65 mm;
• Number of teeth - 26 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 189.60 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.85 mm;
• Inner diameter - 175.80 mm;
• Number of teeth - 26 pcs.;
• Number of discs in the set - 3 pcs.;

Pressure disc:

• Thickness - 3.05 mm;
• Inner diameter - 175.65 mm;
• Number of teeth - 26 pcs.;
• Number of discs in the set - 1 pc.;
