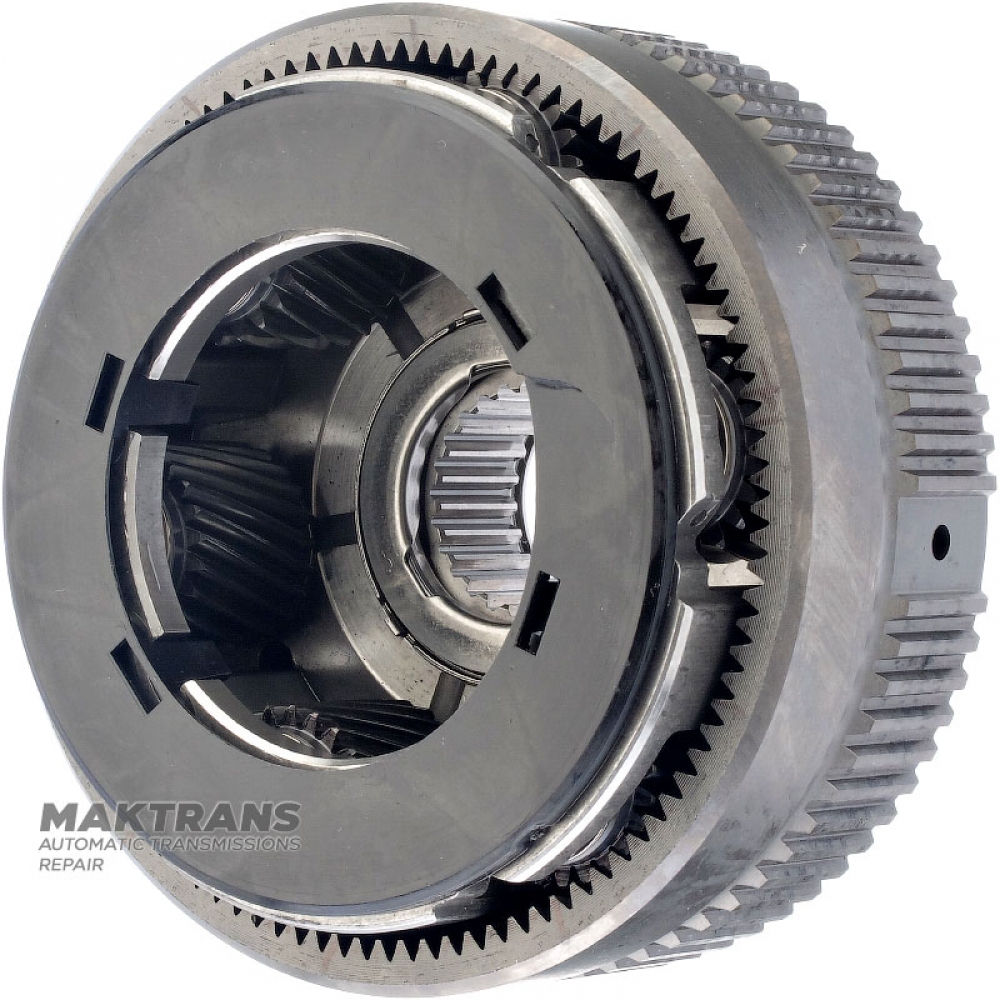

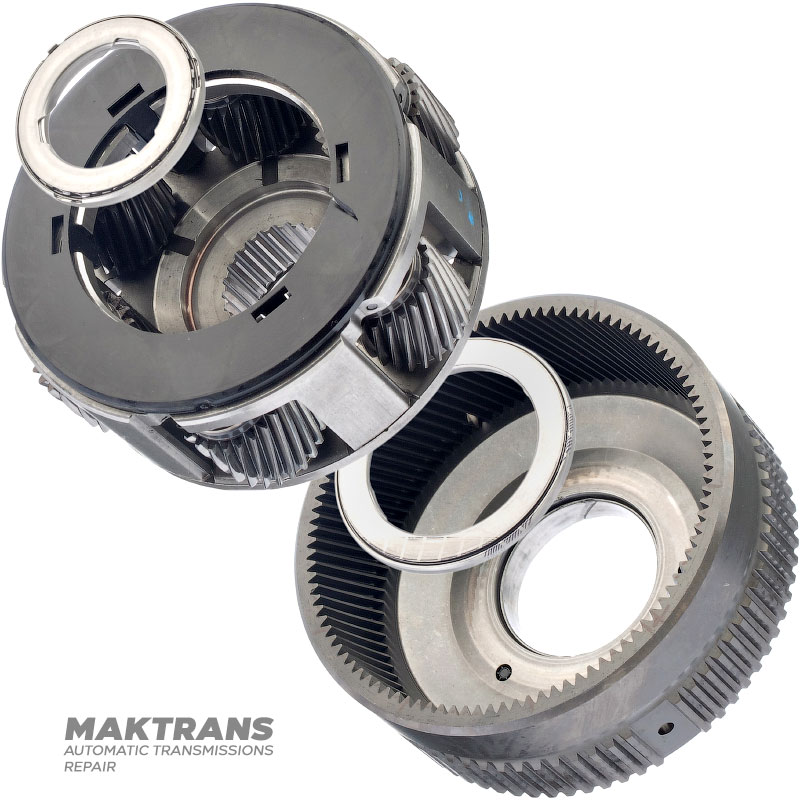

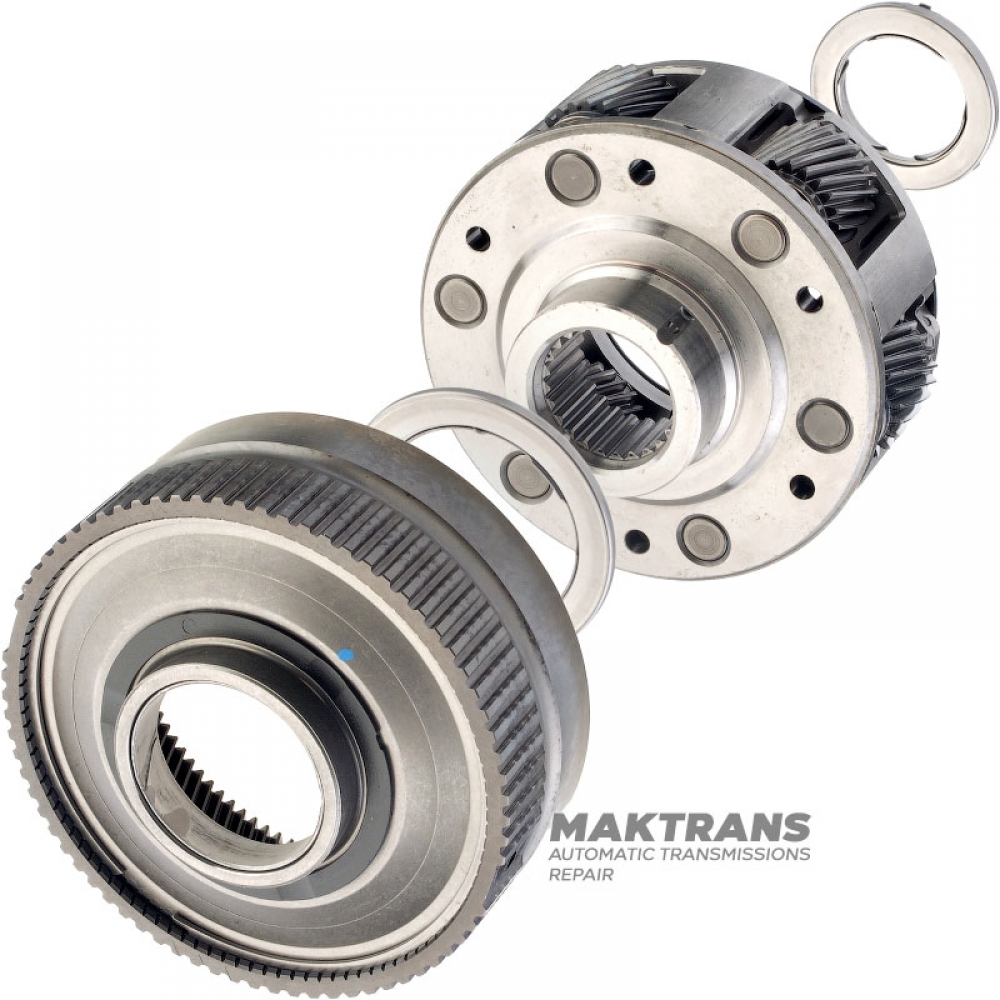

Central planetary gear (FORWARD) FORD 5R110W 5C3Z-7A398-SA — 6 satellites (23 teeth), ring gear 101 teeth (outer Ø 134.80 mm)

Planetary gear:

• Overall height - 75 mm;
• Number of splines on the inner side - 25 mm;
• Outer diameter of the neck - 48.40 mm;
• Number of satellites - 6 pcs.;
• Number of teeth on satellites - 23 pcs.;

Needle bearing (installed between the ring gear and the planetary gear):

• Thickness - 4.50 mm;
• Outer diameter - 72.85 mm;
• Inner diameter - 52.45 mm;

Needle bearing (installed between planet gear and sun gear):

• Thickness - 5.45 mm;
• Outer diameter - 53.50 mm;
• Inner diameter - 34.95 mm;

Ring gear:

• Overall height - 61.50 mm;
• Number of teeth on the gear - 101 pcs.;
• Outer diameter - 134.80 mm;
• Inner diameter of the sleeve - 48.50 mm;
