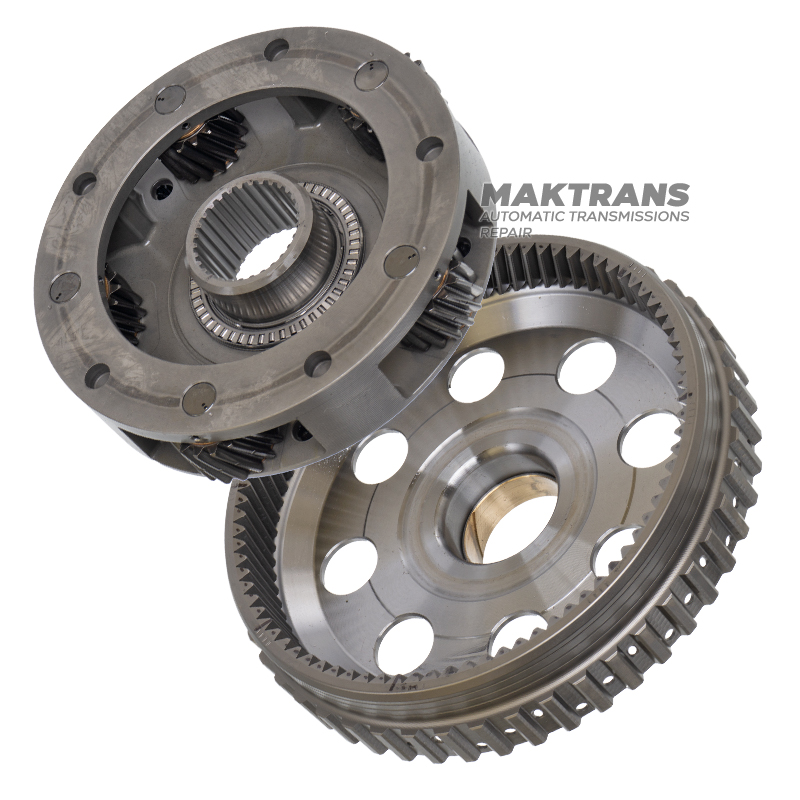

Central planetary gear JEEP A8F27, A8F30 — 45892P4G810, 240322P4G810, 5 satellites (16 teeth, outer Ø 27 mm, satellite height 16.60 mm), ring gear 83 teeth

Planetary gear:

• Overall height - 32 mm;
• The height of the steel body of the satellites is 29.35 mm;
• The outer diameter of the satellite housing is 128.60 mm;
• Number of satellites - 5 pcs.;
• Number of teeth on the satellites - 16 pcs.;
• Satellite height - 16.60 mm;
• Satellite outer diameter - 27.15 mm;
• Number of splines on the inner side - 30 pcs.;

Ring gear:

• Overall height - 51 mm;
• Number of teeth on the gear - 83 pcs.:
• Gear outer diameter - 145.35 mm;
• Hub outer diameter - 153.55 mm;
• Neck outer diameter - 39.80 mm;
• Neck height - 22 mm;
• Inner diameter of the sleeve - 32.95 mm;
