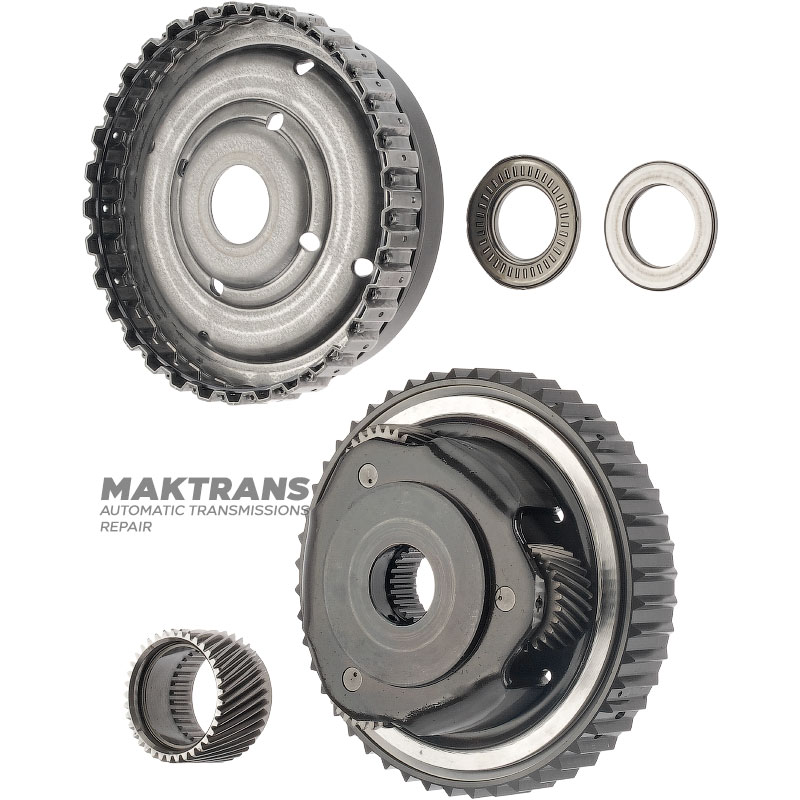

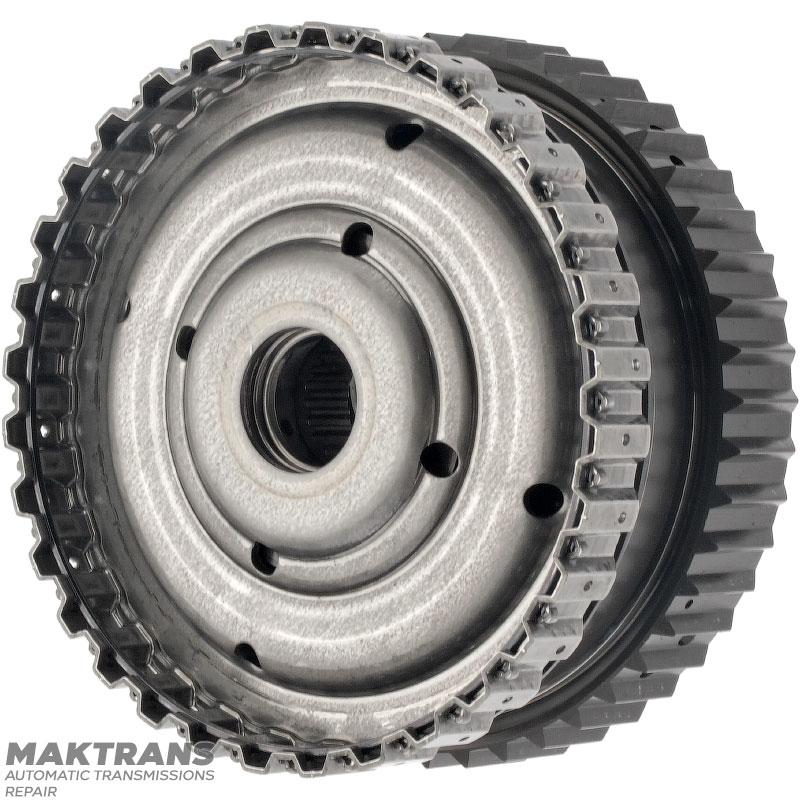

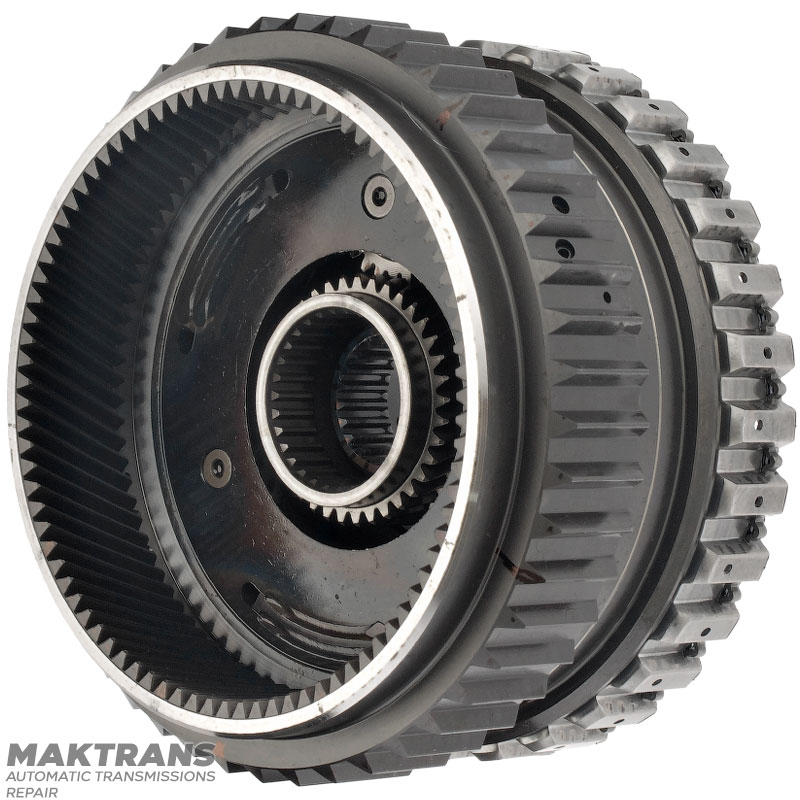

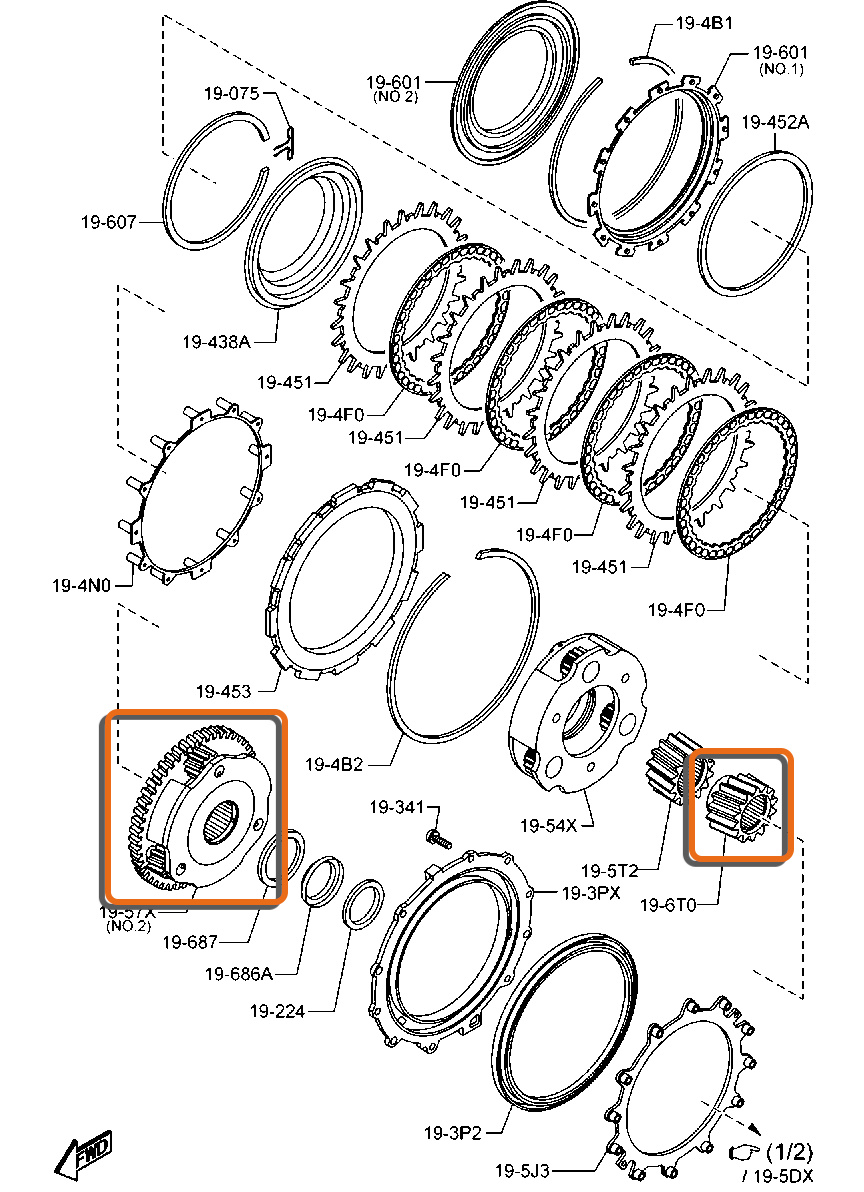

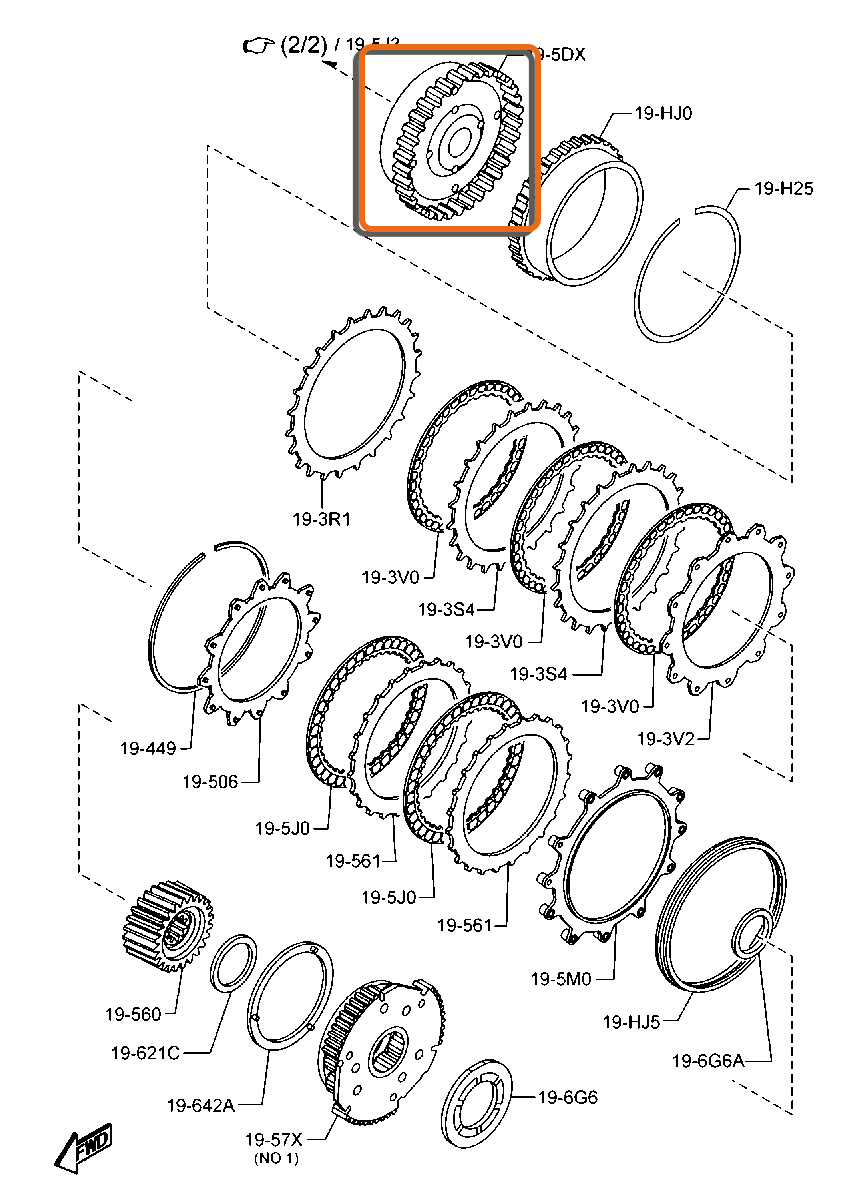

Central planetary gear MAZDA CW6A-EL, EW6A-EL — 3 satellites (26 teeth), FZ11-19-H9X

Central planetary gear:

*The central planetary gear is a single part with the ring gear of the front planetary gear.

• Total height - 64 pcs.;
• Number of splines on the inner side - 22 pcs.;
• Number of teeth on the ring gear of the front planetary gear - 86 pcs.;
• Number of teeth on the hub - 48 pcs.;
• Hub outer diameter - 136.22 mm;
• Number of satellites - 3 pcs.;
• Number of teeth on satellites - 26 pcs.;

Sun gear:

• Overall height - 30.40 mm;
• Number of splines - 31 pcs.;
• Number of teeth on the gear - 37 pcs.;
• Gear outer diameter - 45.65 mm;
• Gear width - 25 mm;

Ring gear of the central planetary gear:

• Overall height - 39 mm;
• Number of teeth on the gear - 89 pcs.;
• Gear outer diameter - 117.80 mm;
• Hub outer diameter - 133.85 mm;

Tags: FZ11-19-H9X, FZ11-19-57X, FZ11-19-6T1, FZ11-19-687, FZ11-19-686
