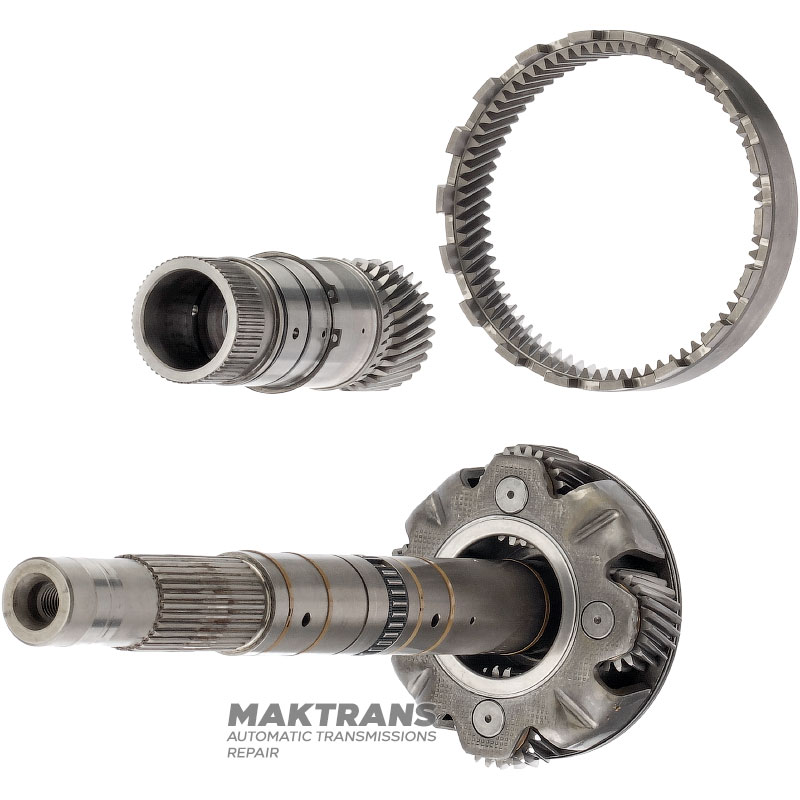

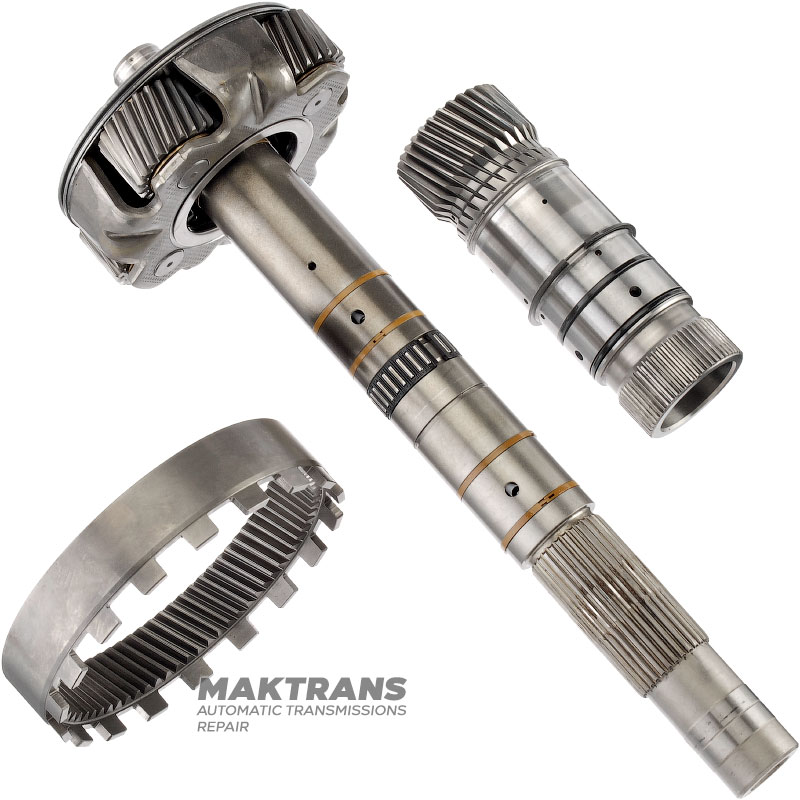

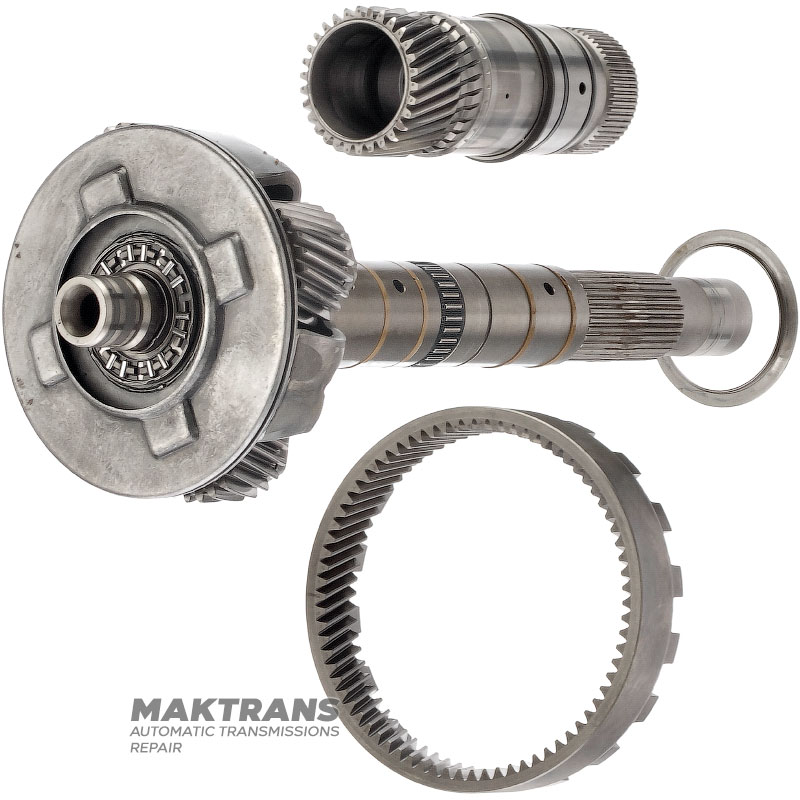

Central planetary gear, output shaft (4WD) DODGE 722.6 — 4 satellites (22 teeth per satellite, width 24 mm), sun gear 30 teeth (ext. Ø 50.90 mm), ring gear 74 teeth (ext. Ø 131.90 mm)

Central planetary gear, output shaft:

• Total shaft length - 356 mm;
• Number of splines on the shaft - 30 pcs.;
• Outer diameter of spline part - 31.90 mm;

• Number of satellites - 4 pcs.;
  Number of teeth on satellites - 22 pcs.;
  Satellite width - 24 mm;

Ring gear:

• Overall height - 31.45 mm;
• Number of teeth - 74 pcs.;
• Outer diameter - 131.90 mm;

Sun gear:

• Overall length - 142 mm;
• Number of splines - 60 pcs.;
• The outer diameter of the splined part is 45.70 mm.;
• Number of teeth on the gear - 30 pcs.;
• Gear outer diameter - 50.90 mm;
