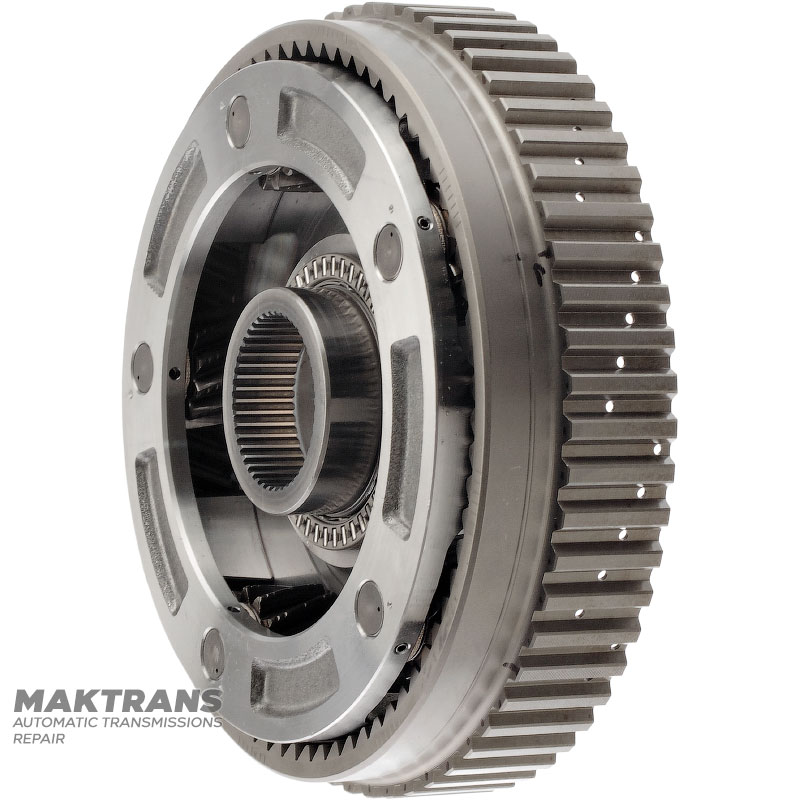

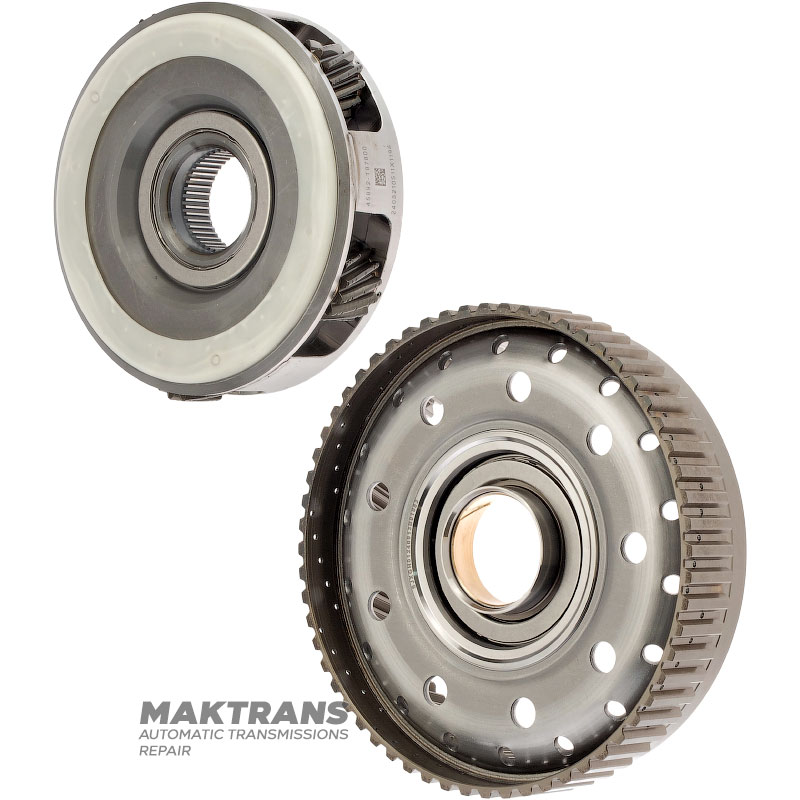

Central planetary gear VAG 09H, AQ451 (8-speed transmission) - 5 satellites (13 teeth), 45892-T87800, 45885-T87810

Planetary gear:

• Overall height - 35 mm;
• Number of splines - 44 pcs.;
• Outer body diameter - 139 mm;
• Inner diameter - 96.25 mm;
• Number of satellites - 5 pcs.;
• Number of teeth on the satellites - 13 pcs.;

Ring gear:

• Height - 40 mm;
• Number of teeth - 73 pcs.;
• Inner diameter of the sleeve - 36.70 mm;
• Outer diameter of gear - 156.05 mm;
• Hub outer diameter - 164.55 mm;
• Number of teeth on the hub - 60 pcs.;

Tags: 45892-T87800, 45885-T87810, 45892T87800, 45885T87810, 45892 T87800, 45885 T87810
