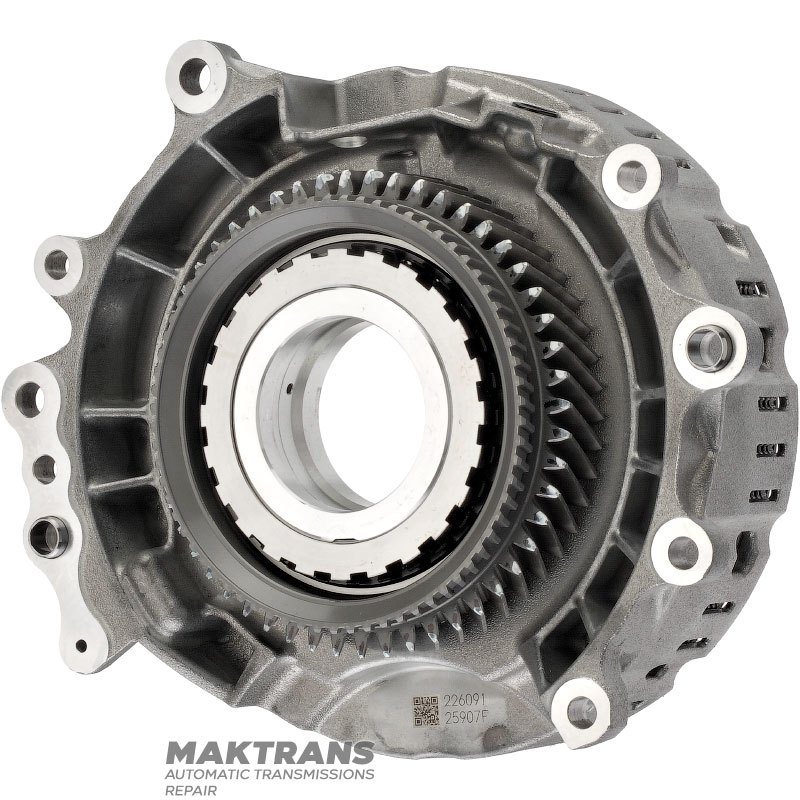

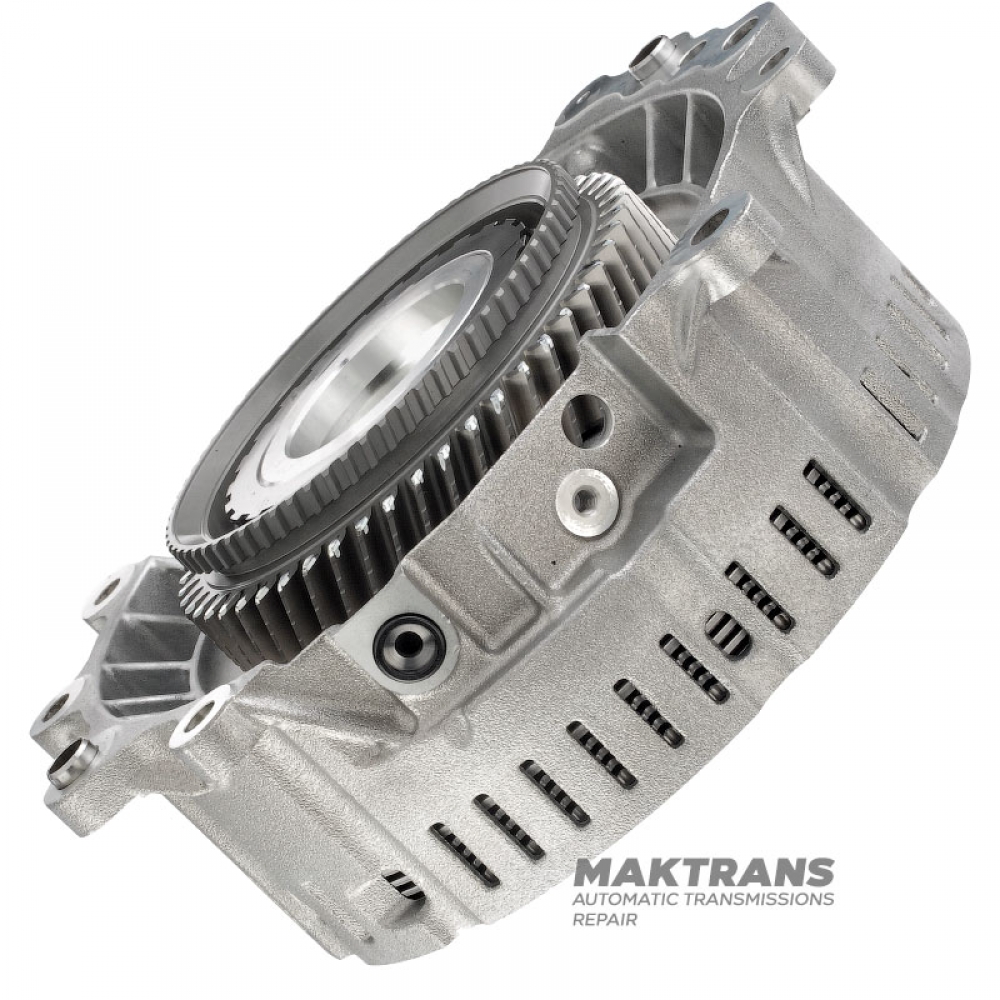

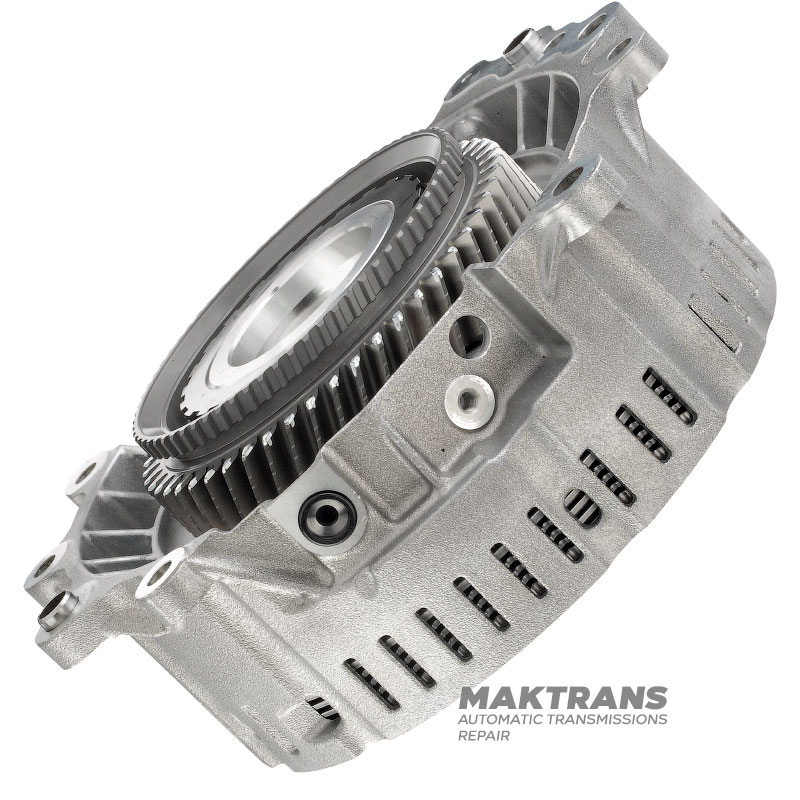

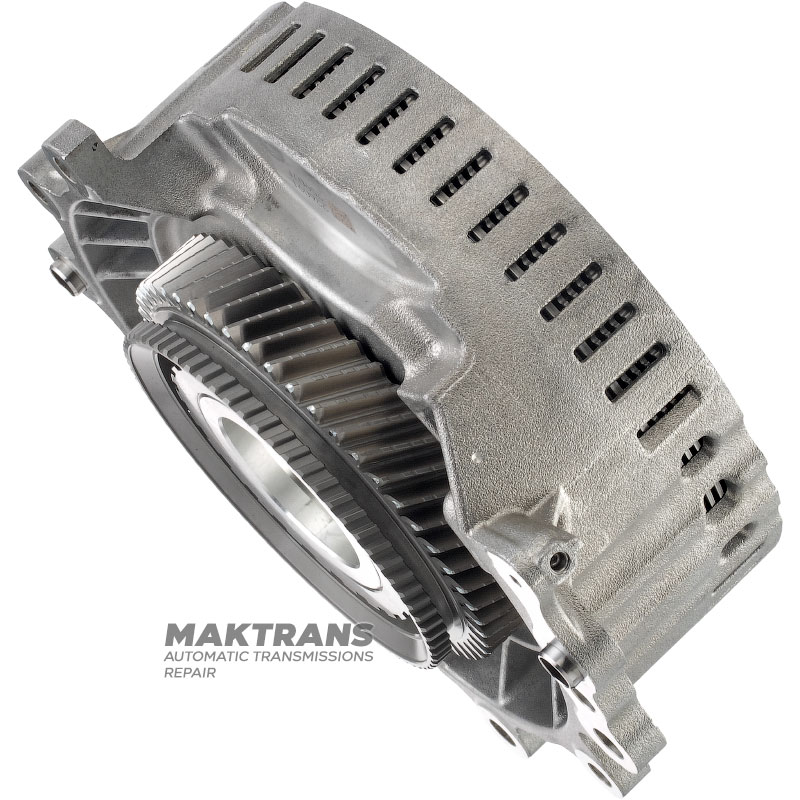

Central support, drum B1 Brake (4 friction discs) AISIN WARNER AWF8G45 - 52 teeth on gear (ext.Ø 145.55 mm)

• The total height of the assembled unit is 95 mm;
• Number of teeth - 52 pcs.;
• Gear outer diameter - 145.55 mm;

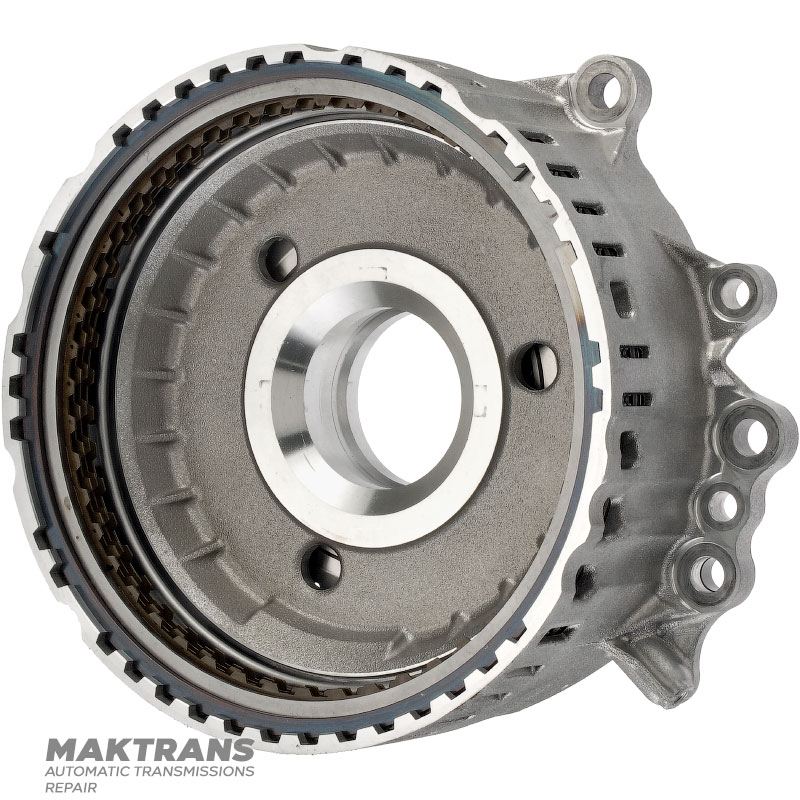

B1 Brake Drum:

• Outer diameter - 213.80 mm;
• Height from piston to retaining ring - 19 mm;

Set of steel and friction discs:

• The total thickness of the set is 18.45 mm;

Support disk:

• Thickness - 3.72 mm;
• Inner diameter - 183.30 mm;
• Number of teeth - 34 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 199.65 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.85 mm;
• Inner diameter - 183.40 mm;
• Number of teeth - 34 pcs.;
• Number of discs in the set - 3 pcs.;

Pressure disc:

• Thickness - 3.15 mm;
• Inner diameter - 183.30 mm;
• Number of teeth - 34 pcs.;
• Number of discs in the set - 1 pc.;
