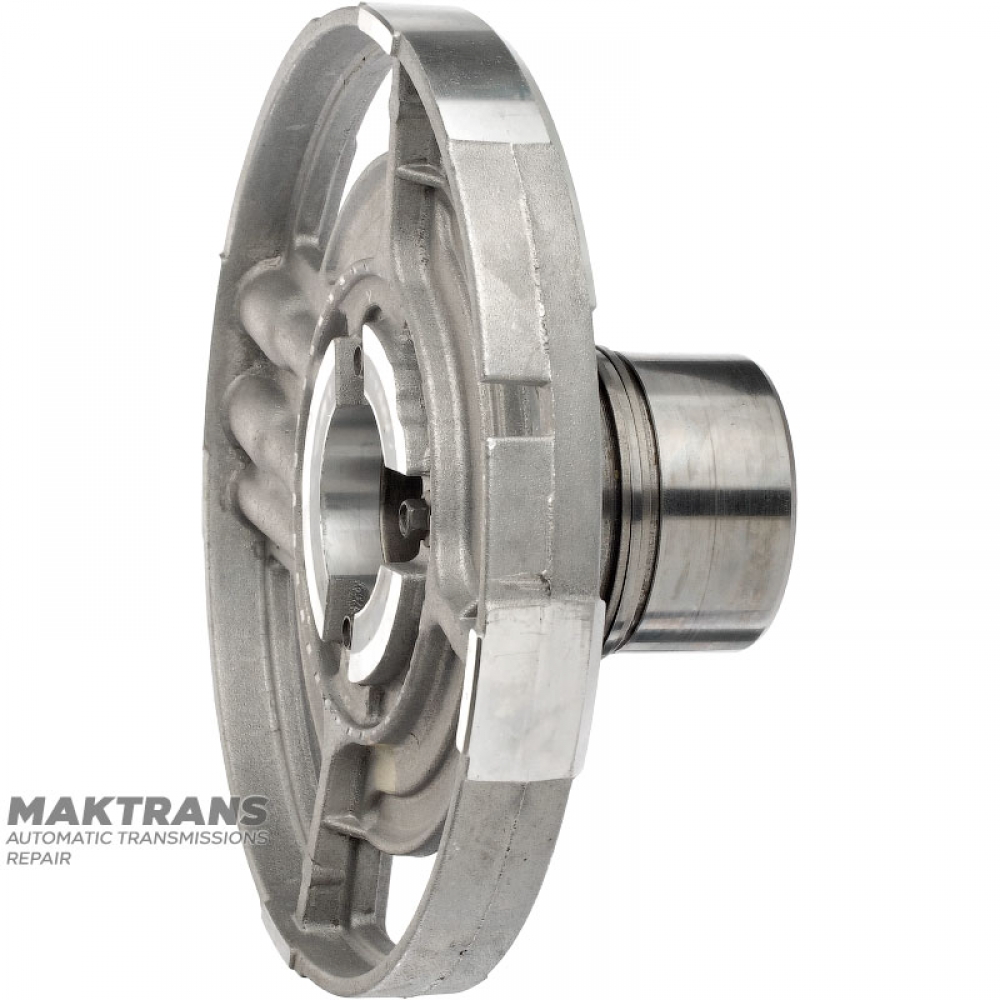

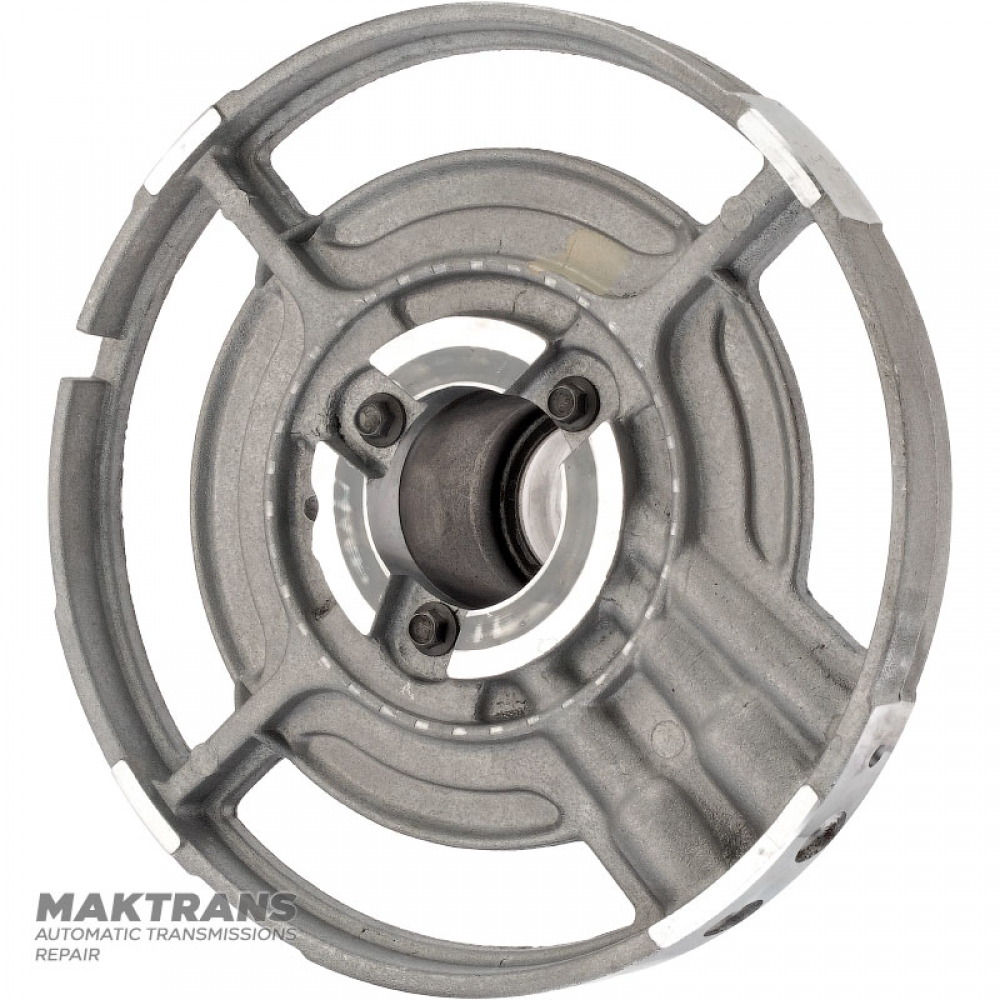

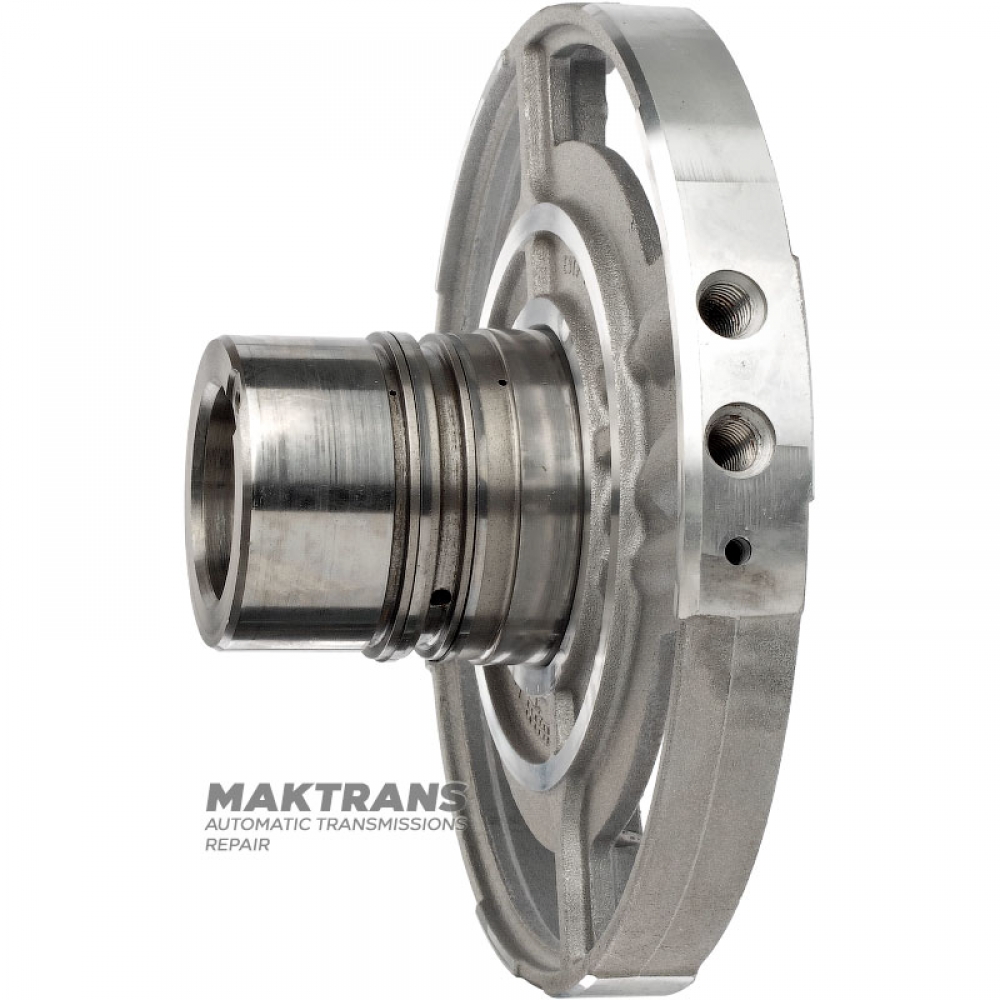

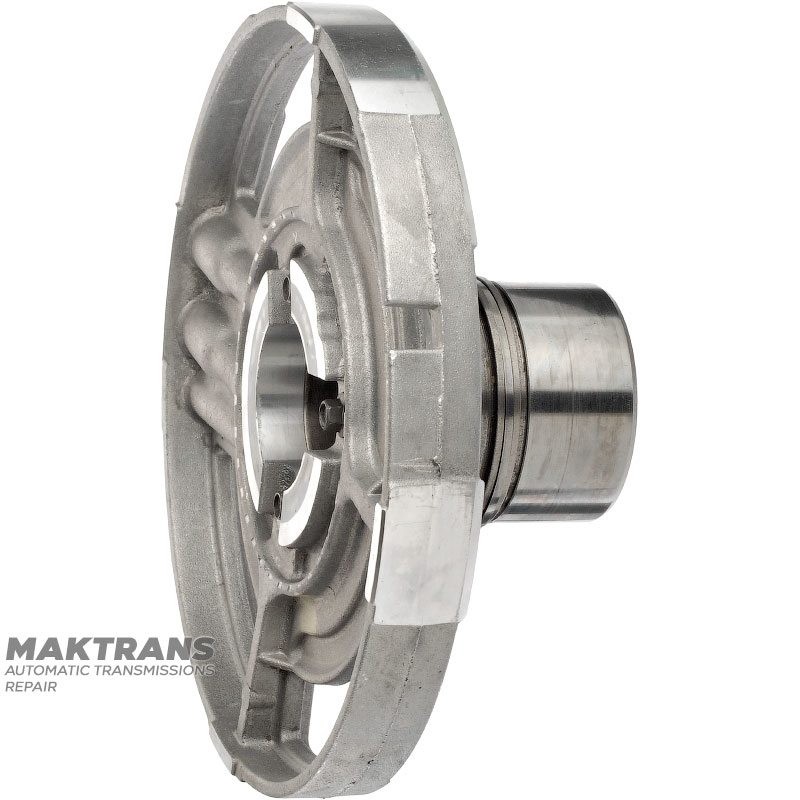

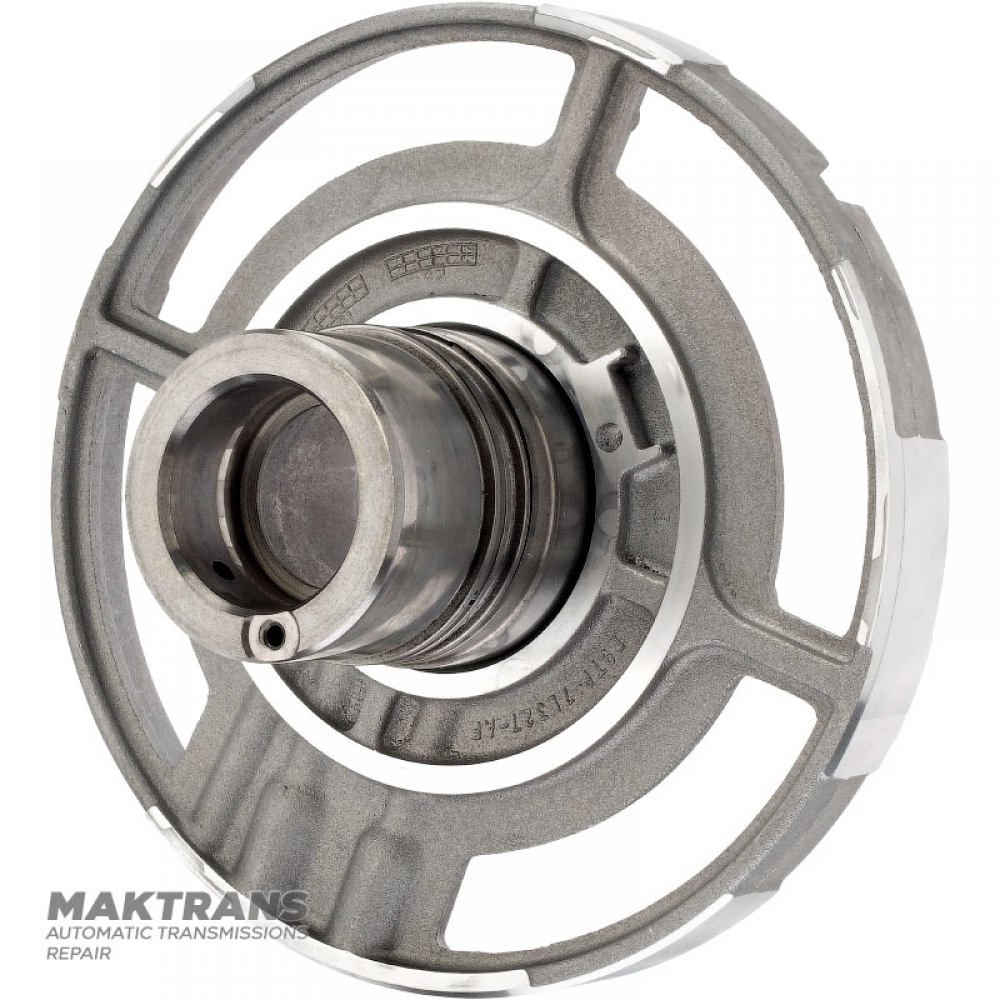

Central transmission support FORD 4R100, E4OD — E9TP-7L327-AF, E9TP7L327AF (without ball bearing on the inner side)

• Overall height - 101 mm;
• The outer diameter of the aluminum body is 222.85 mm;
• Height of aluminum case - 27.05 mm;

Sealing Ring Hub:

• Hub height - 74 mm;
• Outer diameter (according to Teflon ring sockets) - 72.70 mm;
  The internal diameter of the FORWARD drum hub is 47.75 mm;

Outer diameter of working parts:

• Ø 69.80 mm;
• Ø 75.25 mm;
