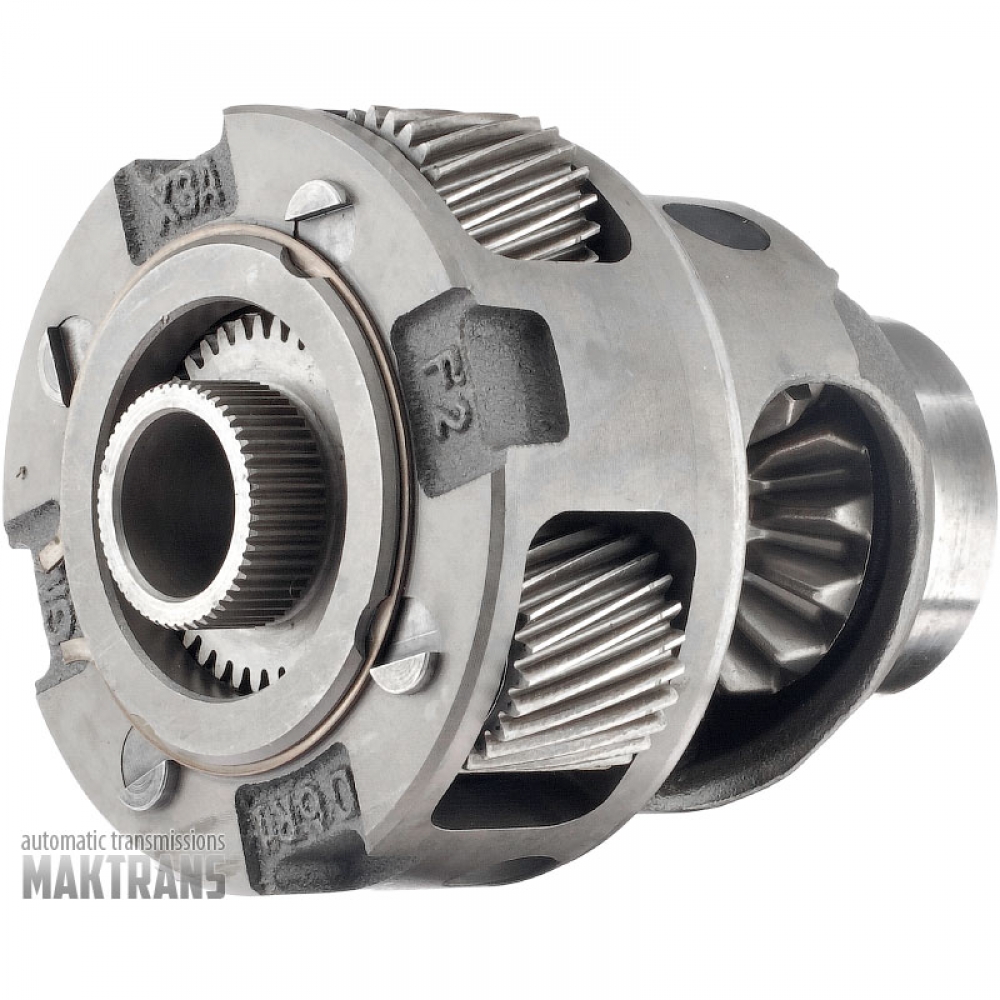

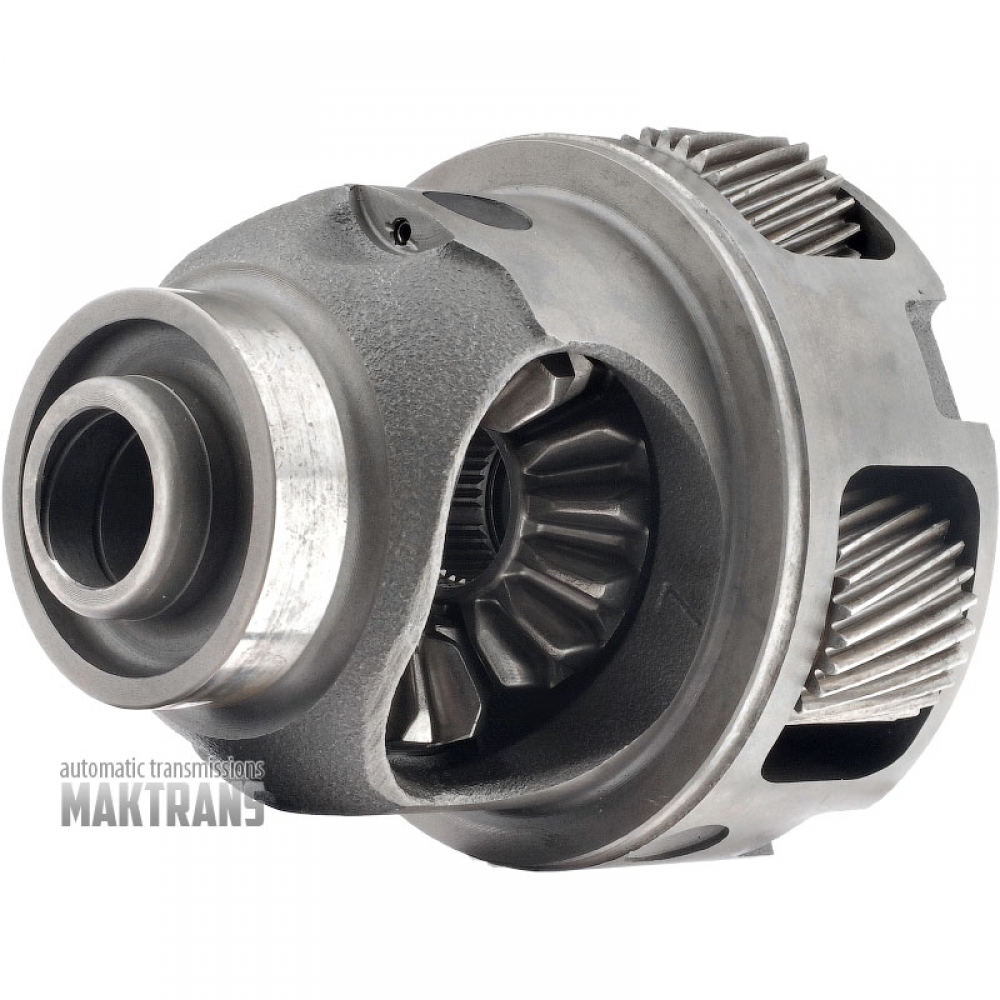

Differential FWD (2WD) GM 6T40 6T45 24267367 24231338 / [without ring gear, sun gear 39 teeth (outer Ø 59.70 mm), 4 pinions (24 teeth on pinion)]

Differential:

• Overall height - 146 mm;
• The inner diameter of the hole for the axle shaft is 27.35 mm;
• The number of splines for the axle shaft is 21 (+3);
• The outer diameter of the working part of the neck is 64.85 mm;
• Outer diameter of the case (satellite side) - 121.90 mm;
• Number of satellites - 4 pcs.;
• The number of teeth on the satellites is 24 pcs.;
• The outer diameter of the satellites is 37.75 mm;

Sun gear:

• Overall height - 52 mm;
• Inner diameter - 28.50 mm;
• Number of teeth - 39 pcs.;
• Gear outer diameter - 59.70 mm;
• Number of splines - 50 pcs.;
• The outer diameter of the spline part is 38.20 mm;
