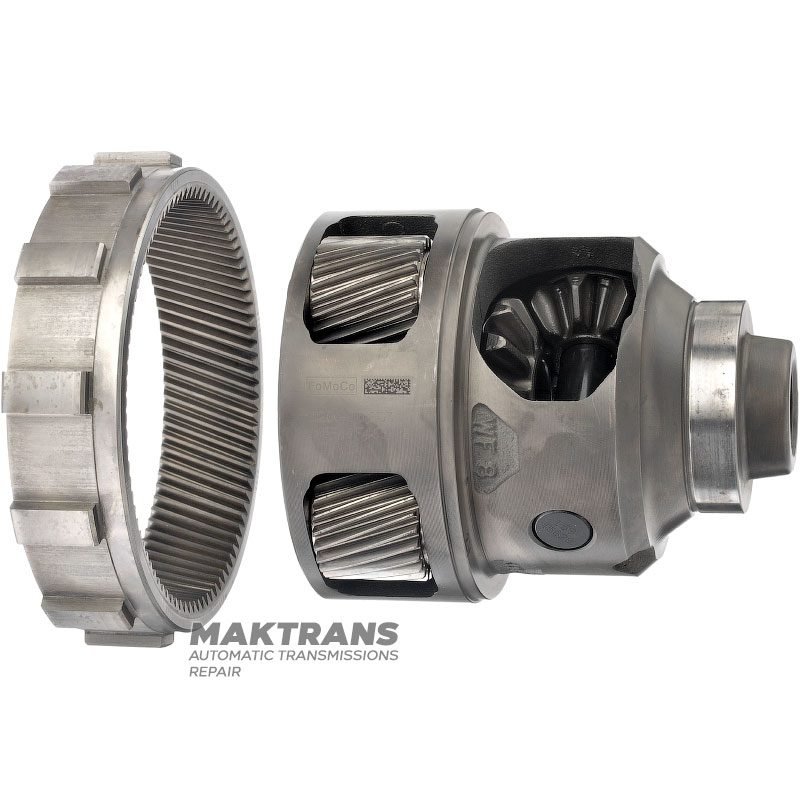

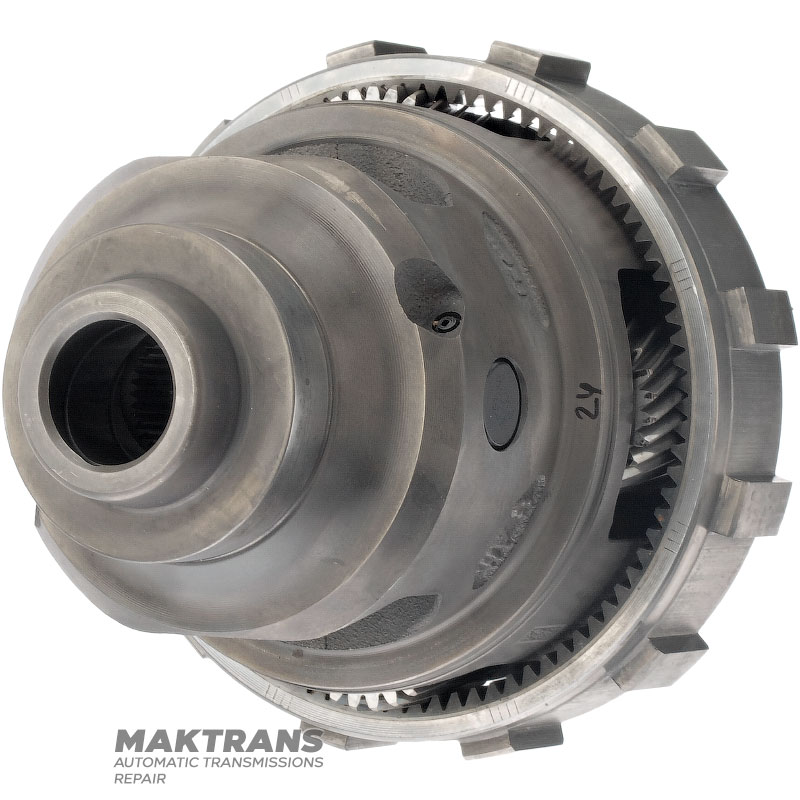

Differential 2WD FORD 8F35 JM5P-7F465-MB — 4 satellites (24 teeth, outer Ø 38.20 mm), sun gear 41 teeth (outer Ø 59.60 mm), ring gear 89 teeth

Differential:

• Overall height - 147 mm;
• The inner diameter of the hole for the axle shaft is 27.30 mm;
• Number of splines for axle shaft - 33 pcs.;
• The outer diameter of the working part is 64.80 mm;
• Number of satellites - 4 pcs.;
• Number of teeth on the planetary gear satellite - 24 pcs.;
• Satellite outer diameter - 38.20 mm;

Sun gear:

• Height - 49.10 mm;
• Number of splines - 50 pcs.;
• The outer diameter of the splined part is 38.25 mm;
• Number of teeth on the sun gear - 41 pcs.;
• Gear width - 34.55 mm;

Ring gear:

• Width - 34.55 mm;
• Number of teeth on the outer side - 12 pcs.;
• Gear outer diameter - 154.60 mm;
• Number of teeth on the ring gear - 89 pcs.;
