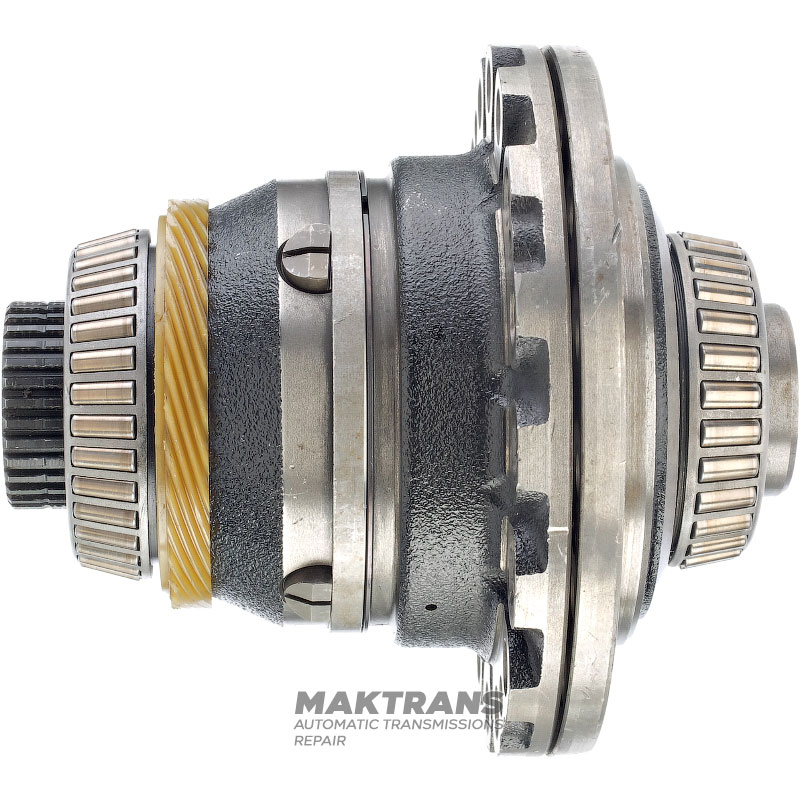

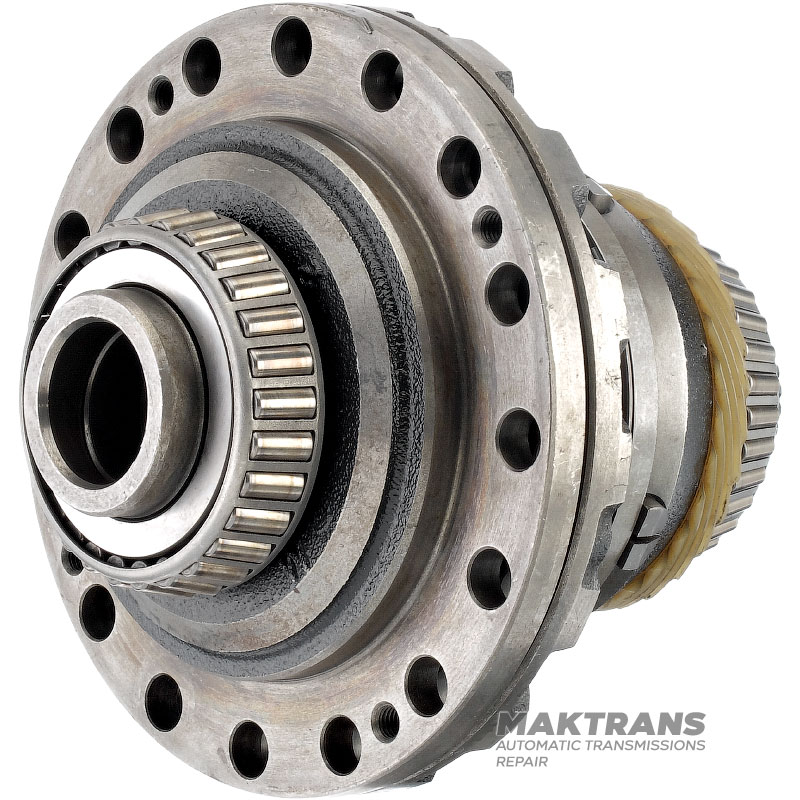

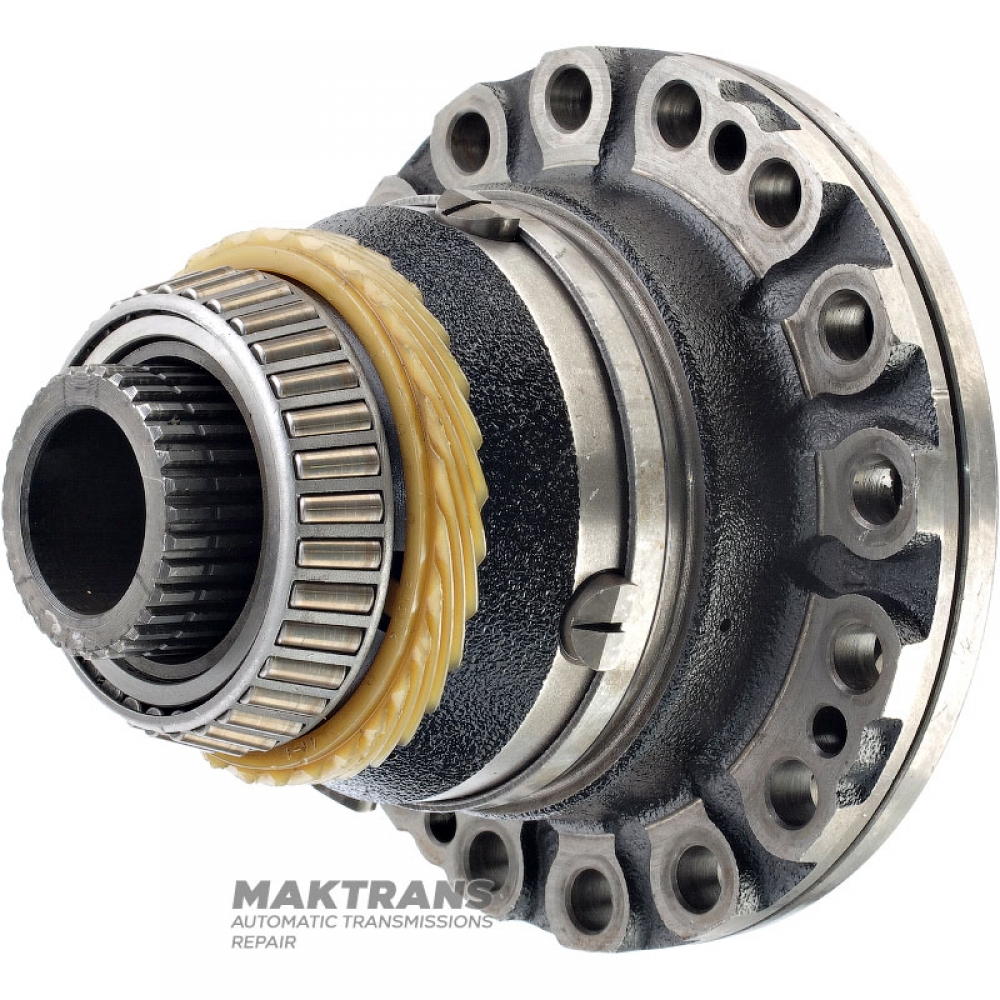

Differential 4WD / 4X4 TOYOTA 4131021020 3348109A01 - 32 splines (outer Ø 52 mm) for transfer case

• Total height - 196 mm;
• The number of splines for the transfer case is 32 pcs.;
• The outer diameter of the spline part is 53 mm;
• Number of mounting holes - 16 pcs.;
• The outer diameter of the skirt of the mounting holes is 177.85 mm;
• The inner diameter of the hole for the axle shaft is 35.10 mm;
• The number of splines for the axle shaft is 23 pcs.;
• Marking of the plastic ring - 3348109A01;
• The outer diameter of the plastic speedometer ring is 102 mm;

TOYOTA RAV4 U140F - ACA22, 2AZFE;
