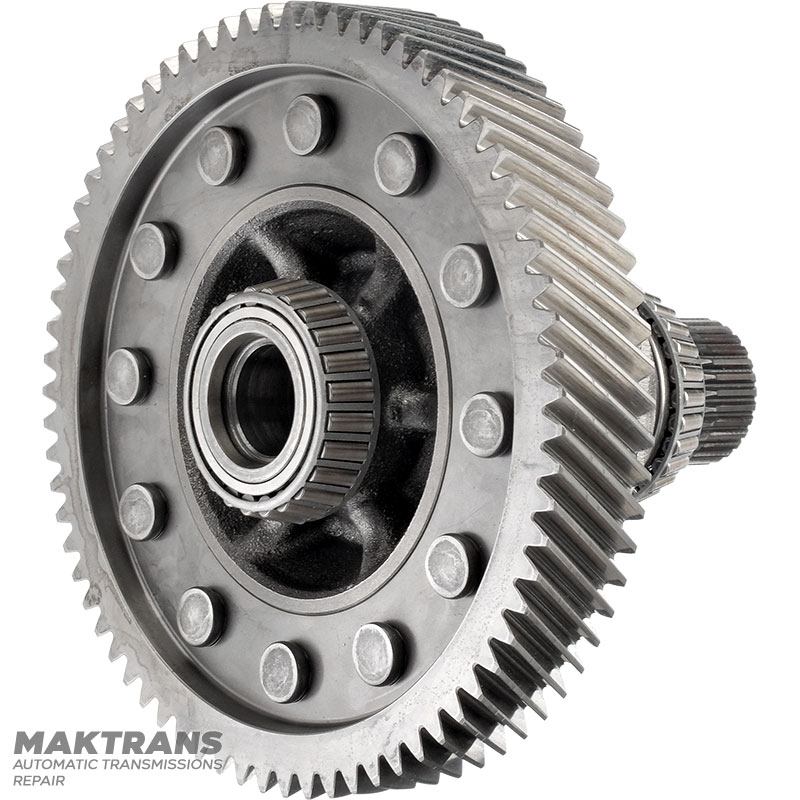

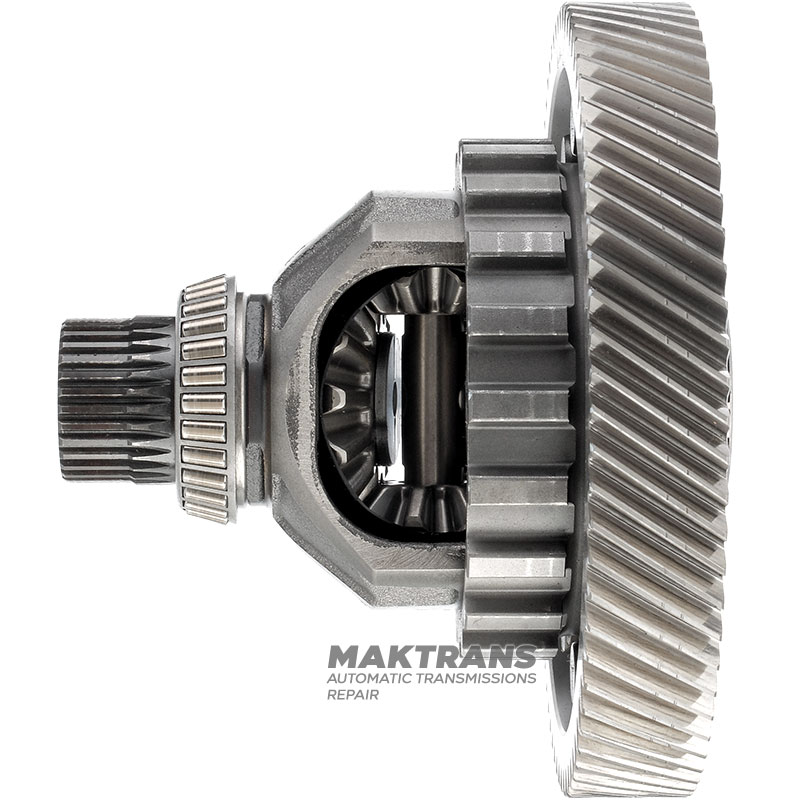

Differential (4WD) assembly VAG DSG6 DQ250 02E (71 teeth, gear outer Ø 221.70 mm)

• Total height - 185 mm;
• The number of splines on the transfer case neck is 30 pcs.;
• The outer diameter of the spline part is 46 mm;
• The number of teeth on the parking gear is 20 pcs;
• The outer diameter of the parking gear is 145.30 mm;
• The number of teeth on the helical gear is 71 pcs;
• Outer diameter of helical gear (permissible values) - from 221.70 from 221.80 mm;***
• Number of notches - 2 pcs;

*** A helical gear does not have clear edges along which measurements can be taken due to the complex geometric shape of the part.
