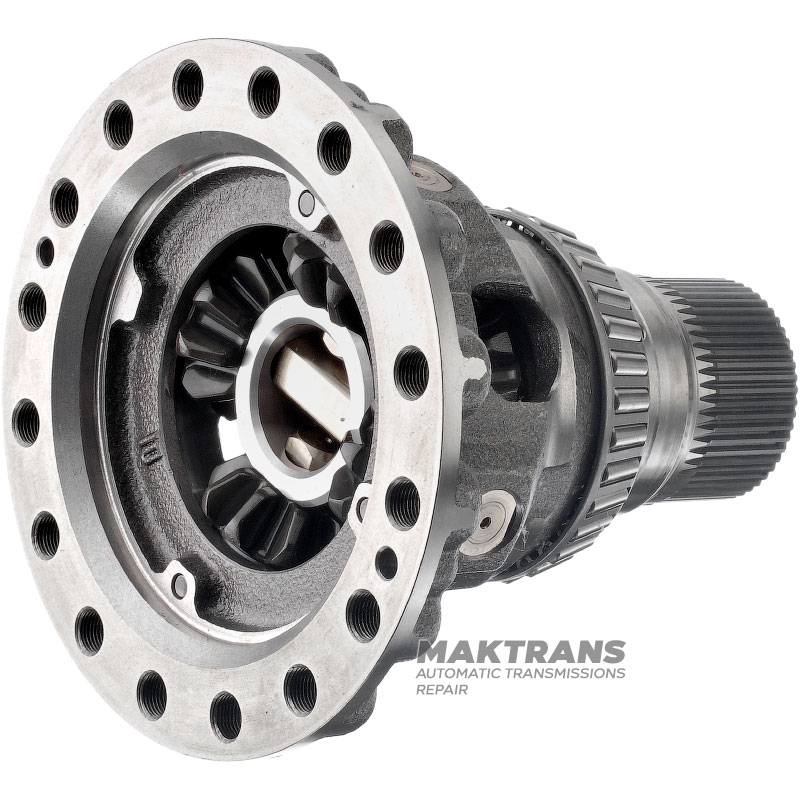

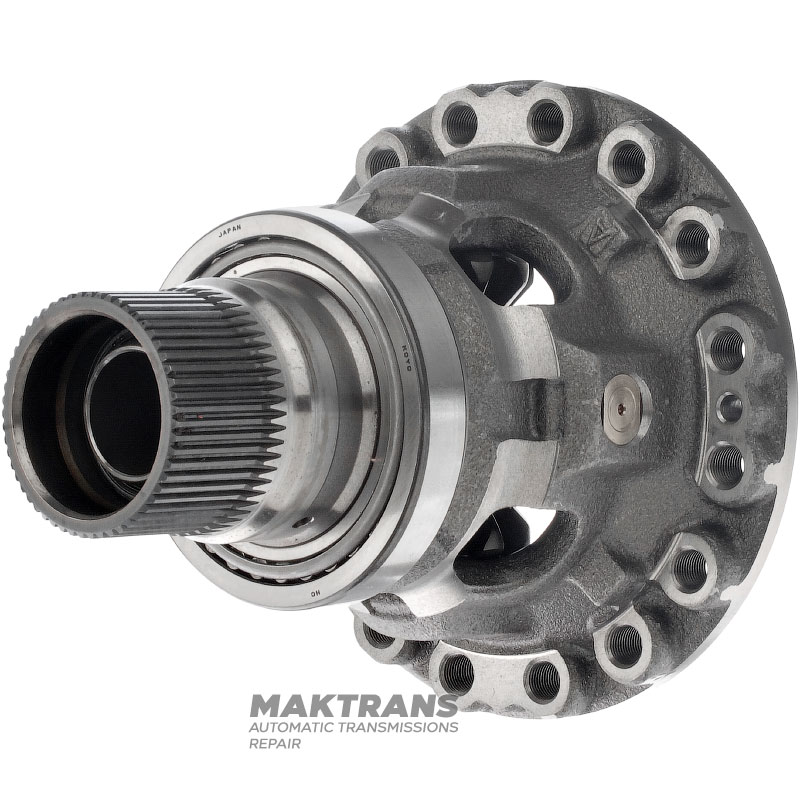

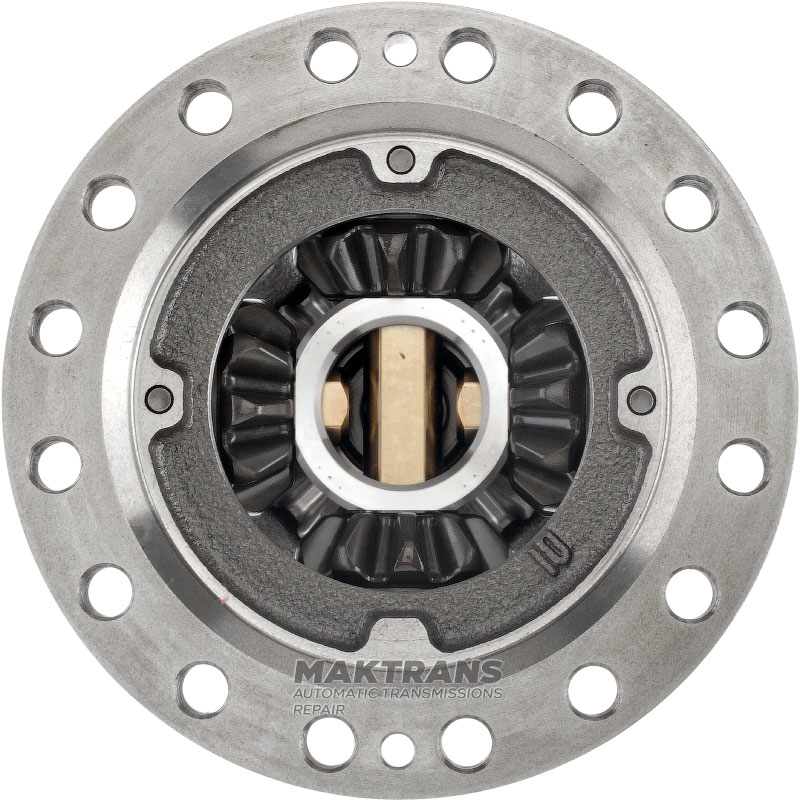

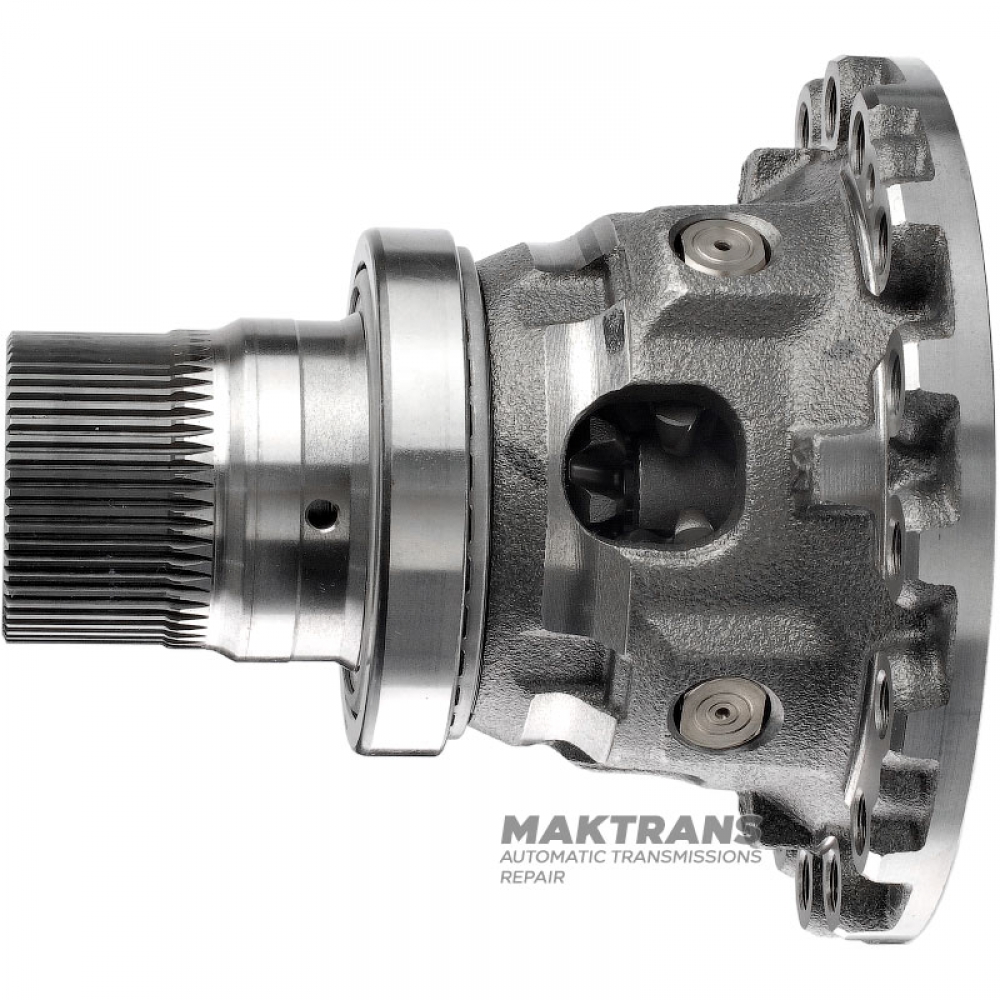

Differential 4WD / AWD (without rear cover) Aisin Warner TF-62SN / VAG 09M - 4 satellites, 55 splines for transfer case (outer Ø 55.85 mm)

Name: Differential 4WD / AWD (without rear cover) Aisin Warner TF-62SN / VAG 09M - 4 satellites, 55 splines for transfer case (outer Ø 55.85 mm)
Brand: GENUINE
Price: 196.88 USD
Availability: InStock

Worldwide Shipping 🌎

Product Code:

PI-50-10

Product model copied to clipboard

Brand

GENUINE

Availability: 14

Weight (kg): 5.4

Sold:

$196.88

Shipping Icon Shipping to United States from $119.32

Main Specifications

Condition (used, new): new

Type: differential

Equipment level: without back cover and side gear

If you order more than 5 pcs - shipping time will be longer at few days

Stock Place:	Availability:	Price:	Qty:
Slovakia	4 pcs.	$196.88
Poland	1 pcs.	$196.88
Ukraine	9 pcs.	$196.88

Qty:

Product overview
Shipping & Payment
Questions - Answers (0)
Gearbox works better with (2)

Total height - 163 mm;
Number of splines - 55 pcs.;
The outer diameter of the spline part is 55.85 mm;
Inner diameter for the axle shaft - 28.20 mm;
The number of splines for the axle shaft is 26 pcs.;
The outer diameter of the skirt of the mounting holes is 10 mm;
Number of mounting holes - 16 pcs.;
Inner diameter of mounting holes - 10.05 mm;
The outer diameter of the bearing race is 95.40 mm;
Bearing marking - KOYO ST6595;
