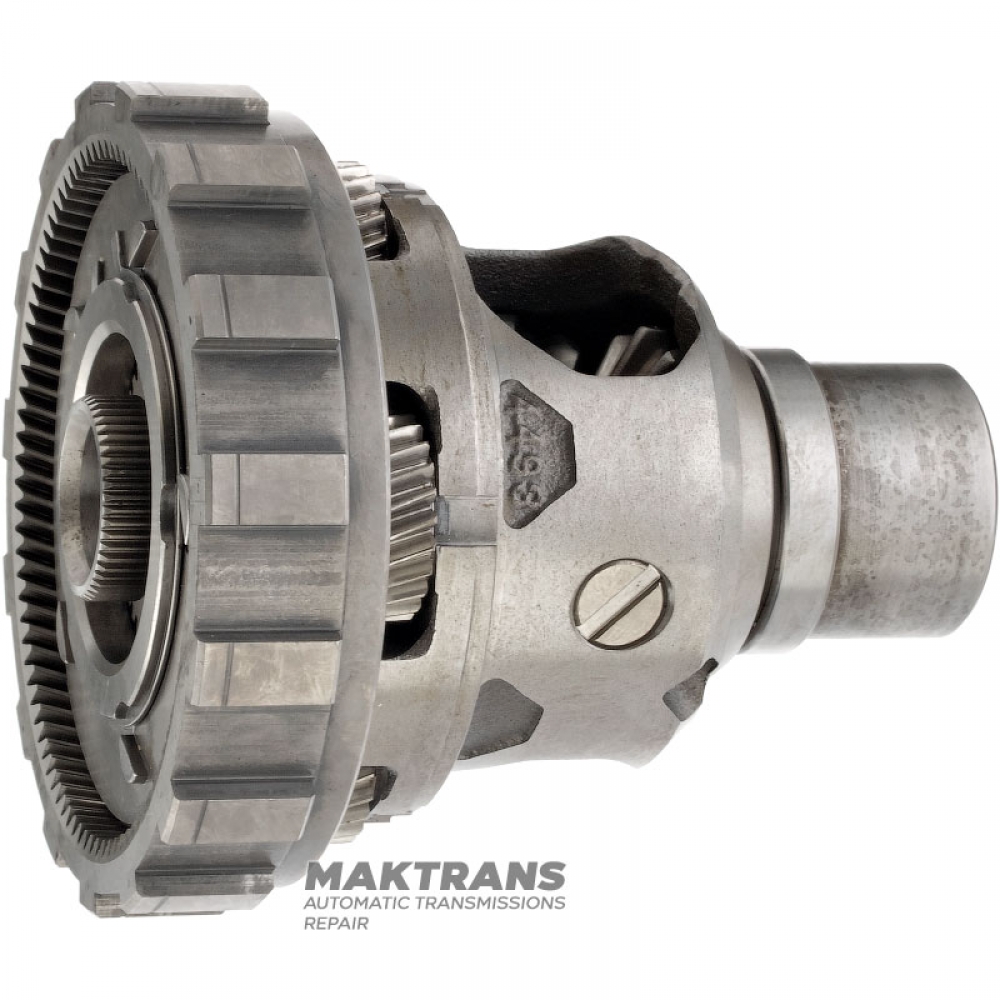

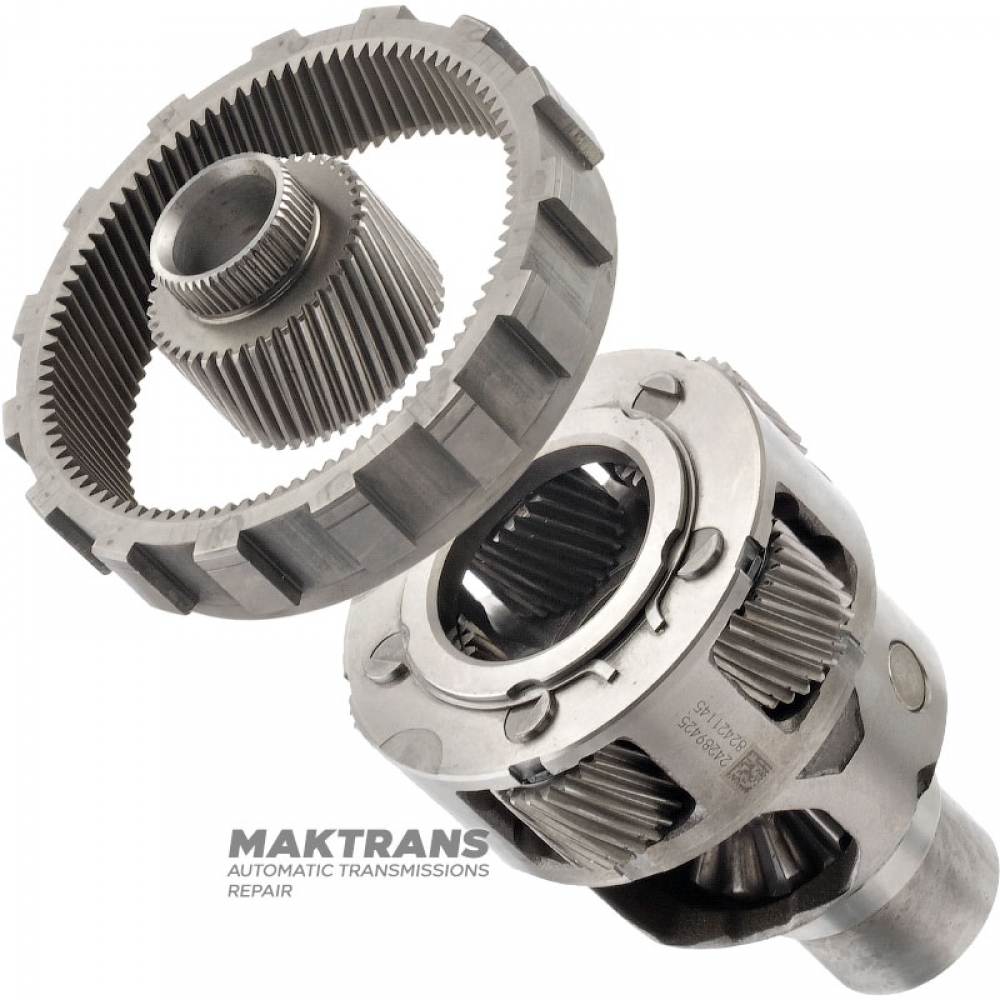

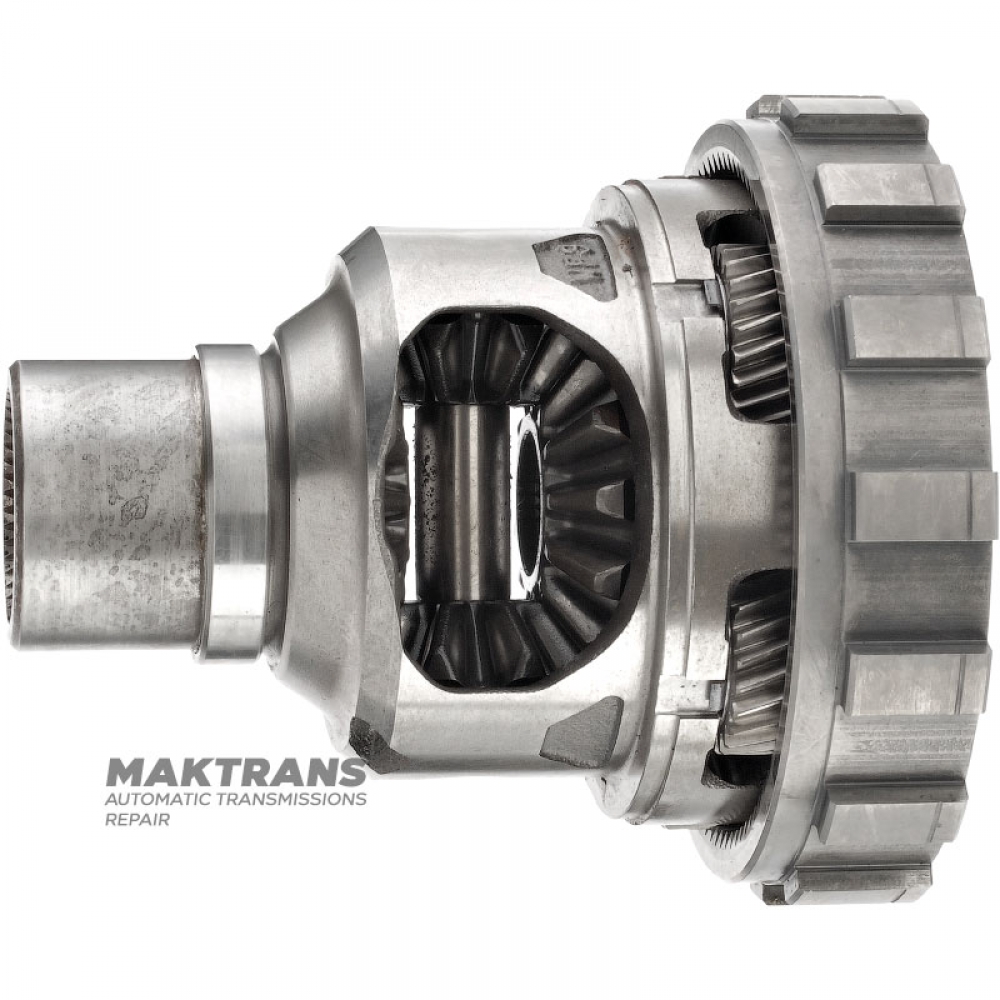

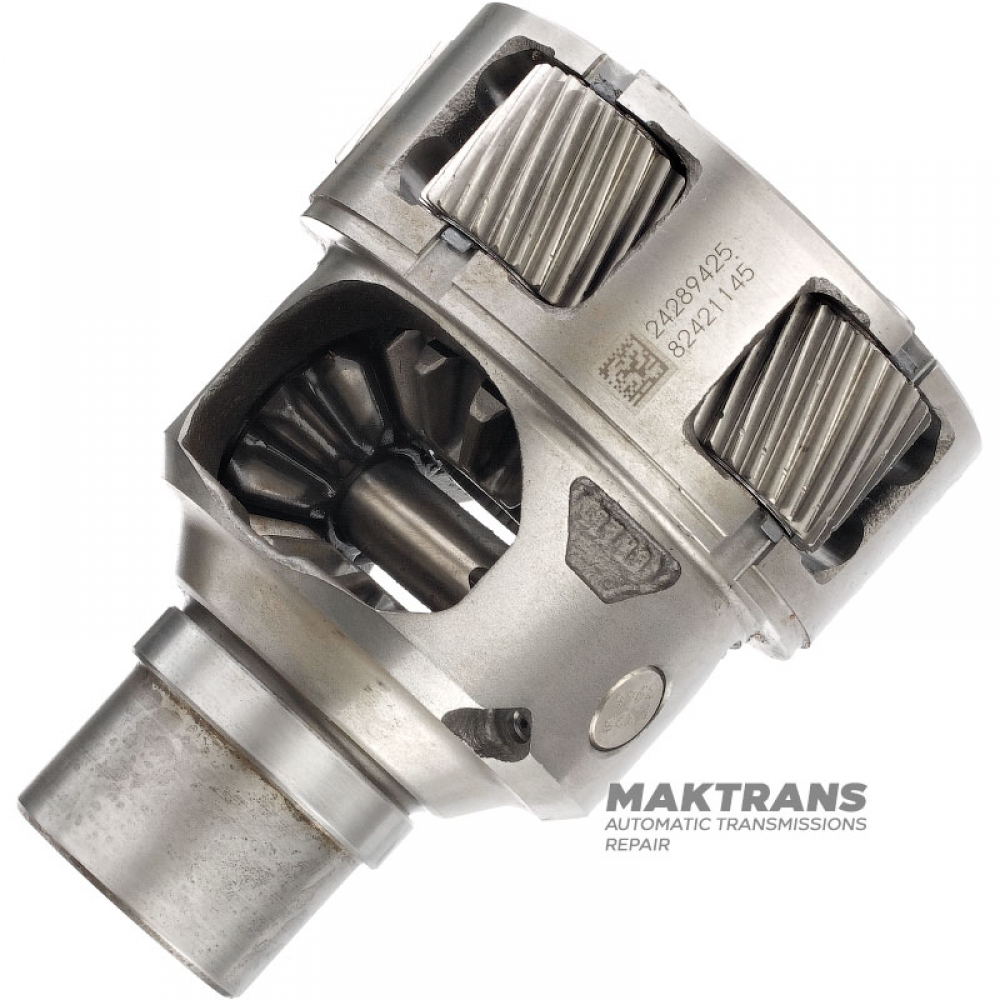

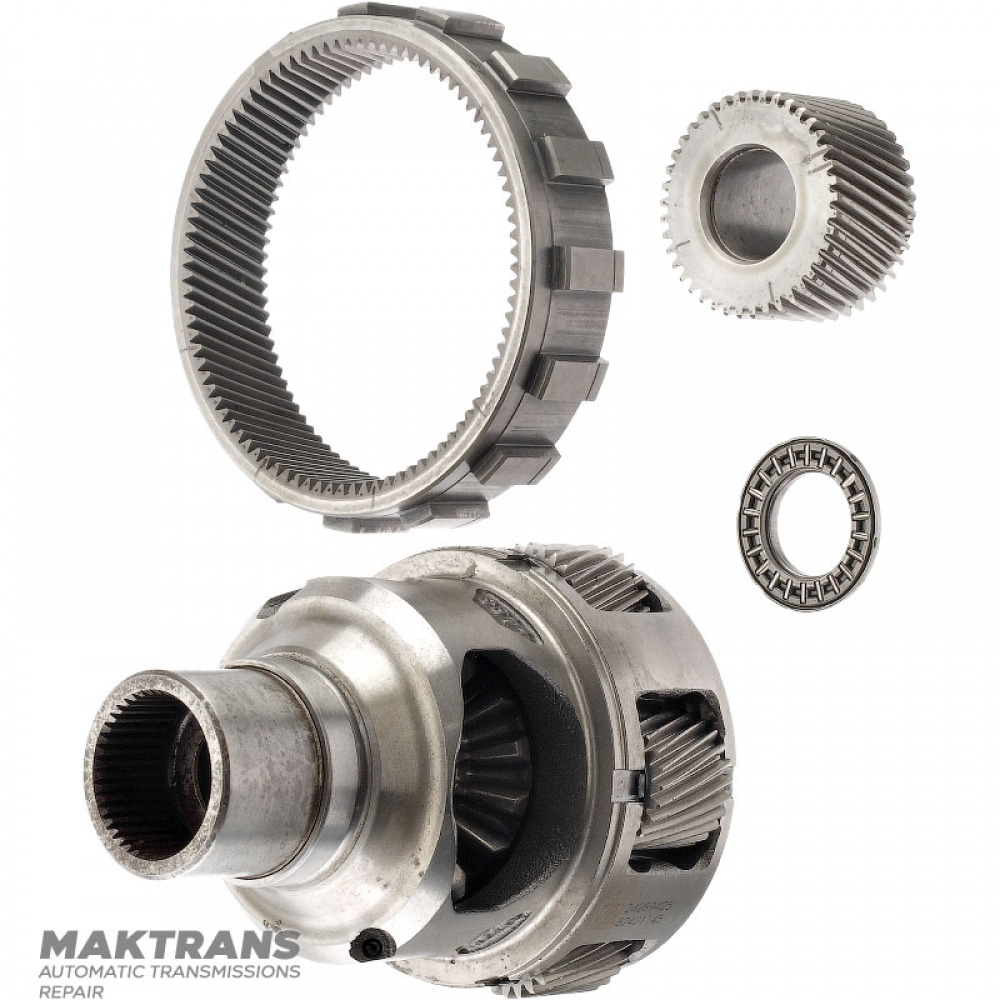

Differential 4WD GM 9T50 - 5 pinions (24 teeth), sun gear 41 teeth (outer Ø 59.65 mm), 24289425

Differential:

• Overall height - 168 mm;
• Number of splines on the neck - 42 pcs.;
• Outer neck diameter - 54 mm;
• The outer diameter of the working part of the neck is 59.95 mm;
• The outer diameter of the satellite housing is 121.90 mm;
• Number of satellites - 5 pcs.;
• Number of teeth on the satellites - 24 pcs.;

Ring gear:

• Overall height - 34.65 mm;
• Number of teeth on the outer side - 15 pcs.;
• Outer diameter - 144.70 mm;
• External diameter of external teeth - 154.50 mm;
• Number of teeth on the gear - 89 pcs.;

Sun gear:

• Overall height - 49.15 mm;
• Number of teeth on the gear - 41 pcs.;
• Gear outer diameter - 59.70 mm;
• Number of splines - 50 pcs.;
• The outer diameter of the splined part is 38.25 mm;
• Inner diameter - 28.55 mm;
