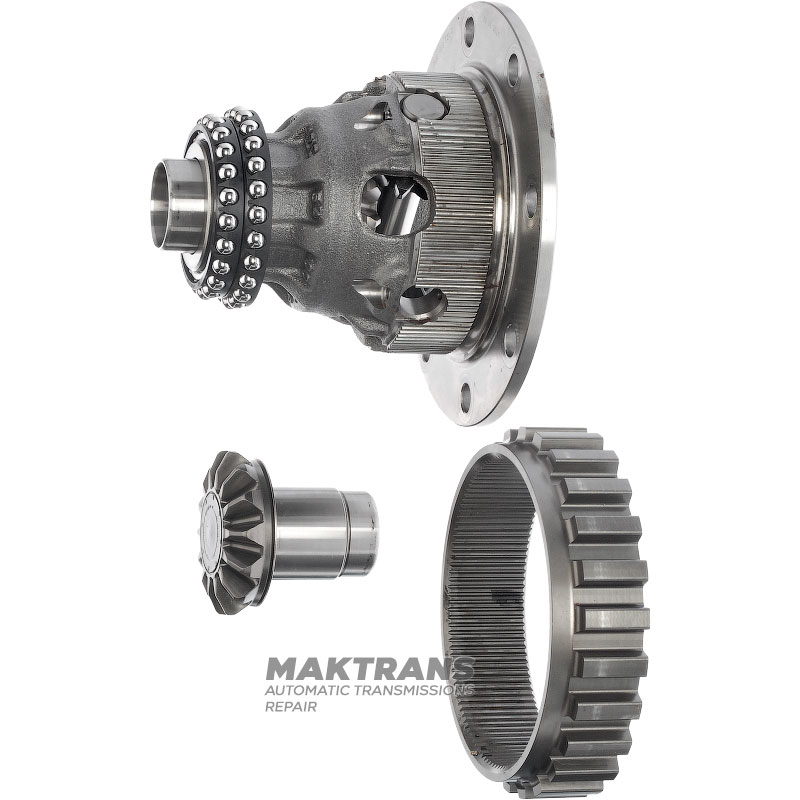

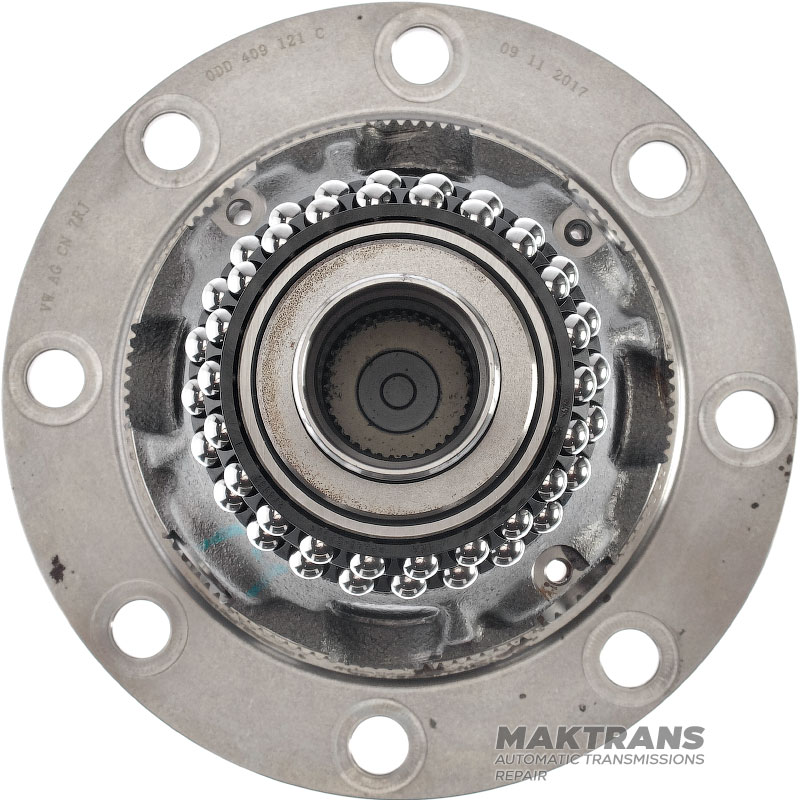

Differential FWD (2WD) VAG eHybrid DQ400 0DD 0DD409121C - without helical gear

Differential housing:

• Total height - 144 mm;
• The outer diameter of the skirt of the mounting holes is 184.05 mm;
• Number of mounting holes - 8 pcs.;
• The inner diameter of the mounting hole is 12.95 mm;
• The outer diameter of the journal of the semi-axial gear is 39.95 mm;
• Inner diameter for the axle shaft - 30.90 mm;
• The number of splines for the axle shaft is 37 pcs.;

Side gear:

• Total height - 73.70 mm;
• Neck outer diameter - 39.95 mm / 42.90 mm;
• Inner diameter for the axle shaft - 30.95 mm;
• The number of splines for the axle shaft is 37 pcs.;
• The number of teeth on the gear is 14 pcs.;
• Gear outer diameter - 74.35 mm;
• Plug marking - 0BH409095A;

Parking gear:

• Height - 36.25 mm;
• Number of teeth - 25 pcs.;
• Outer diameter - 145.55 mm;
• The number of slots on the inside is 120 pcs.;
• Parking gear marking - 02E325867J;
