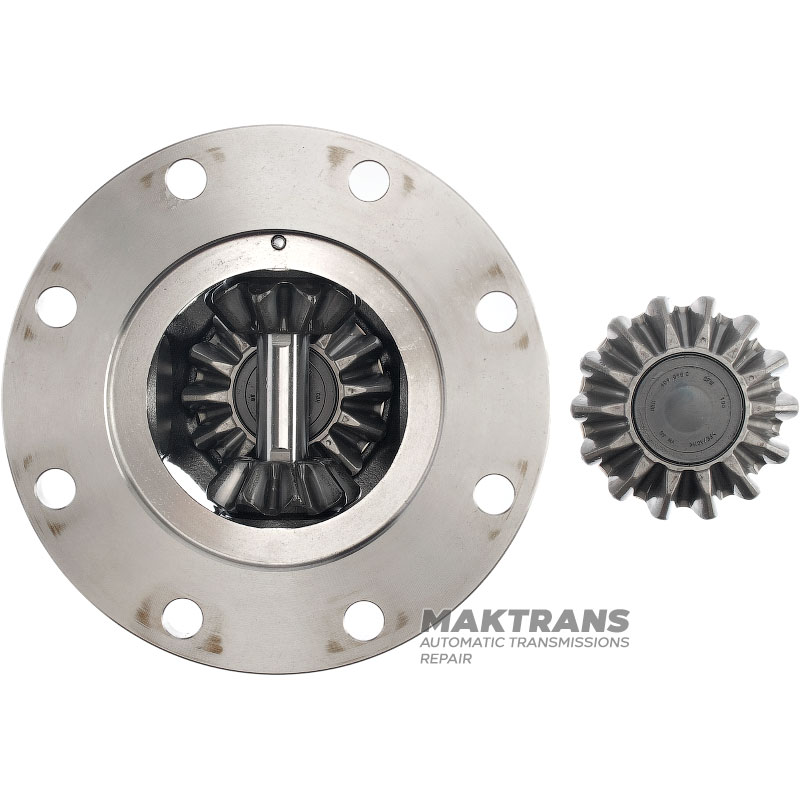

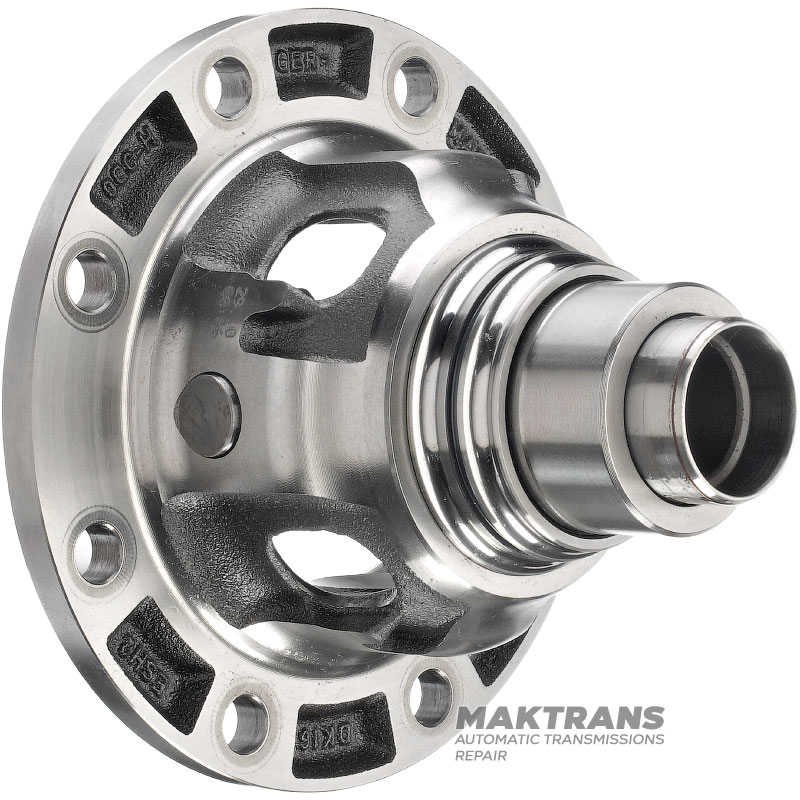

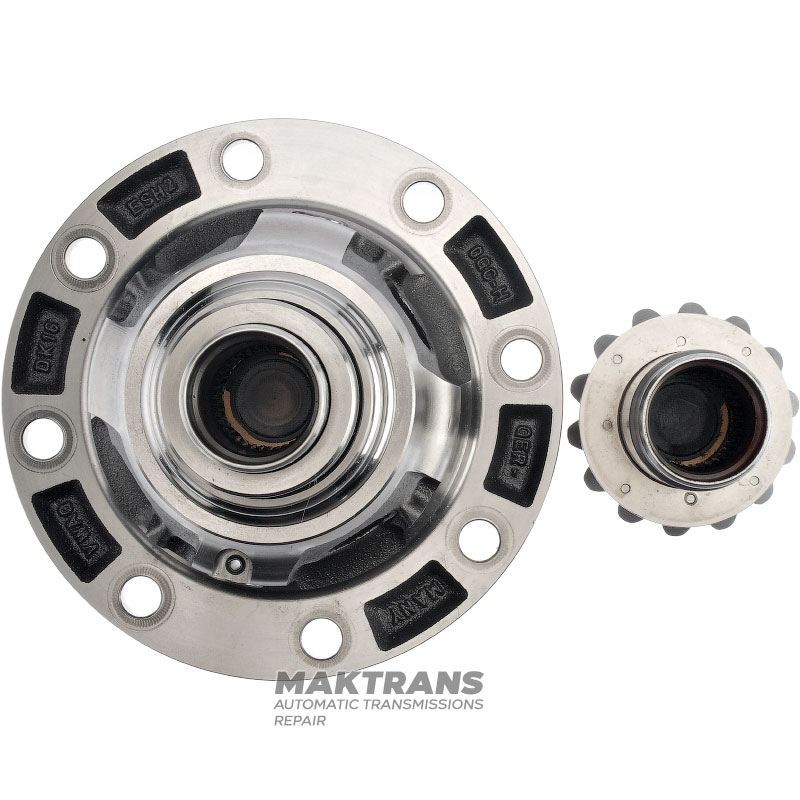

Differential FWD / 2WD (without helical gear) VAG DSG7 DQ381 0GC

• Total height - 135 mm;
• Outer skirt of mounting holes - 181 mm;
• Number of mounting holes - 8 pcs.;
• Inner diameter of mounting holes - 12.85 mm;
• The outer diameter of the neck is 54.70 mm;

Side gear:

• Total height - 73.70 mm;
• Neck outer diameter - 40 mm / 42.95 mm;
• Inner diameter - 31.10 mm;
• The number of splines on the inside of the neck is 37 pcs.;
• The number of teeth on the gear is 14 pcs.;
• Gear outer diameter - 74.25 mm;
