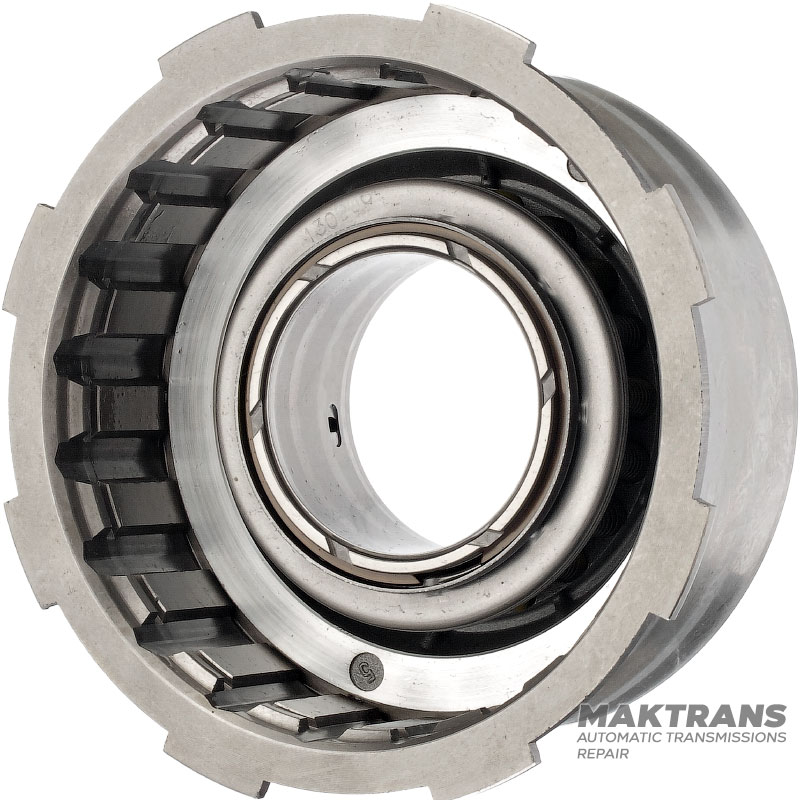

Direct Clutch Drum FORD 5R55N, 5R55S, 5R55W, 1L2P-7D047-CA - 10 single-sided, friction discs (total thickness 26.15 mm)

Direct Clutch Drum:

• Overall height - 68 mm;
• Outer diameter (working part of the brake band) - 136.95 mm;
• Inner diameter under the hub - 60.85 mm;
• Height from piston to retaining ring - 26 mm;

Direct Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 26.15 mm;

Support disk:

• Thickness - 5.10 mm;
• Inner diameter - 100.50 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc (single-sided, internal teeth):

• Thickness - 2.10 mm;
• Outer diameter - 123.10 mm;
• Number of teeth - 48 pcs.;
• Number of teeth in the set - 5 pcs.;

Friction disc (single-sided, external teeth):

• Thickness - 2.10 mm;
• Inner diameter - 101.55 mm;
• Number of teeth - 20 pcs.;
• Number of teeth in the set - 5 pcs.;

Tags: 1L2P-7D047-CA, 1L2Z-7D044-CA, XW4Z-7D044-CB, FOTZ-7B066-BVMR, FOTZ-7B066-B, F77Z-7B442-AA, 7L2Z-7B164-A, FOTZ-7A262-B, E860125-S, E5TZ-7A527-BA, XW4Z-7A480-BA, FOTZ-7A548-A, 9OGT-7A548-AA
