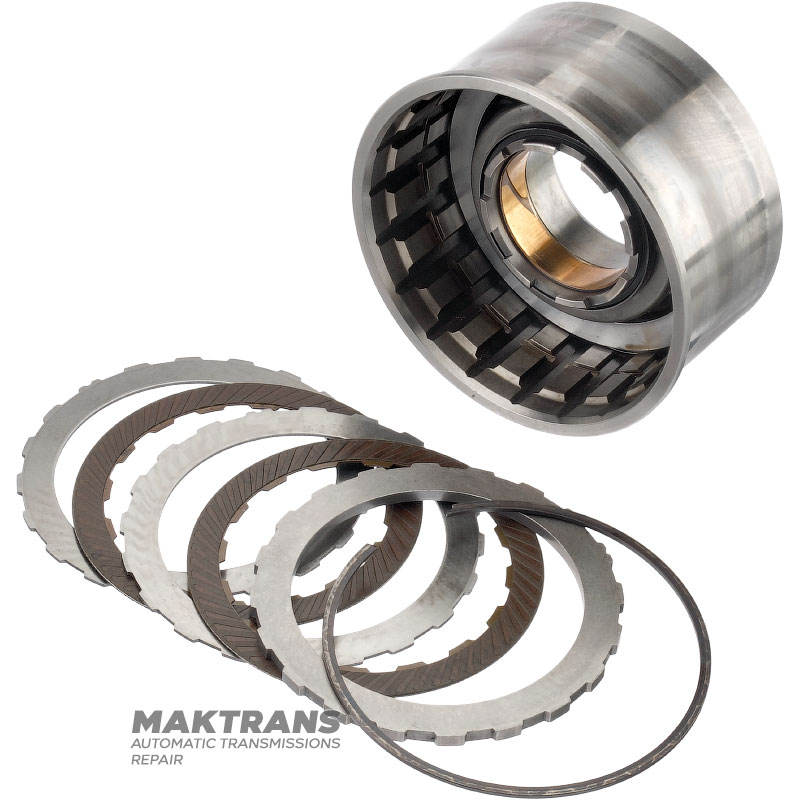

Direct Clutch Drum FORD 5R55N, 5R55S, 5R55W, XW4P-7L669-AB - 2 friction discs (total thickness 11.90 mm)

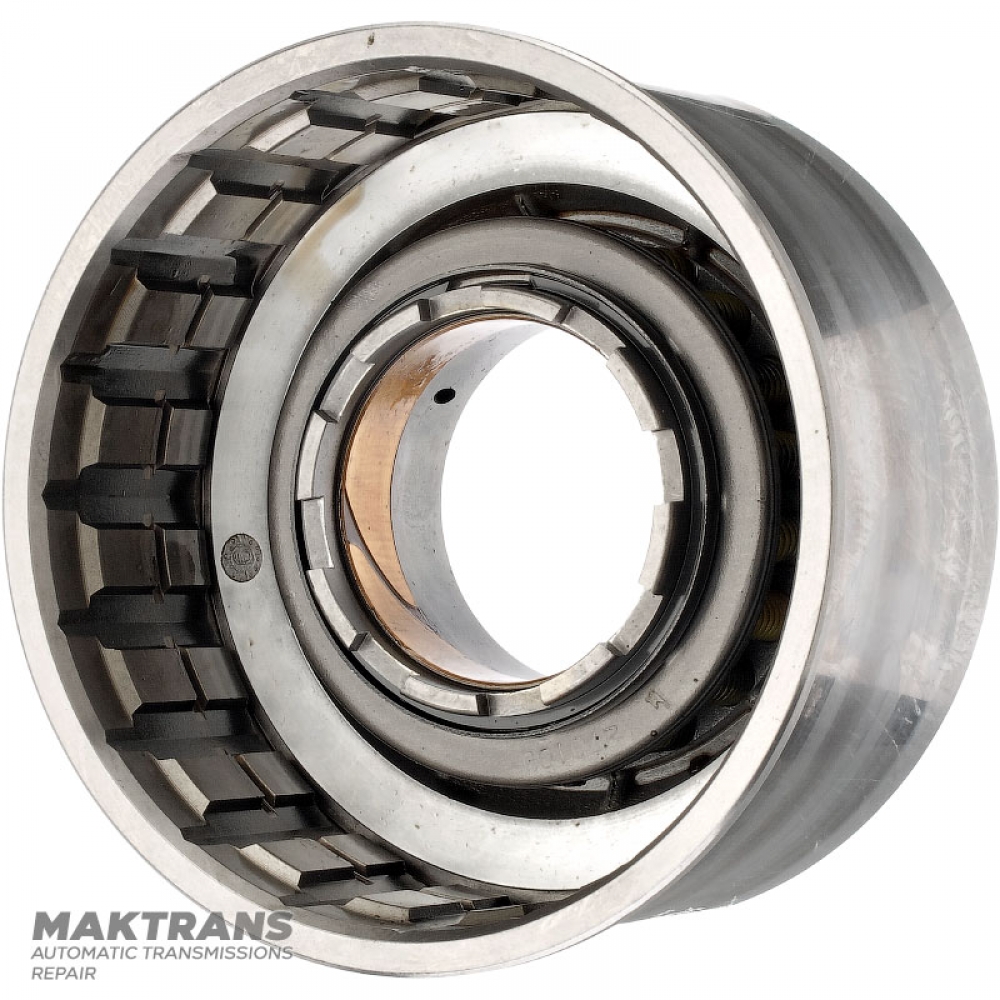

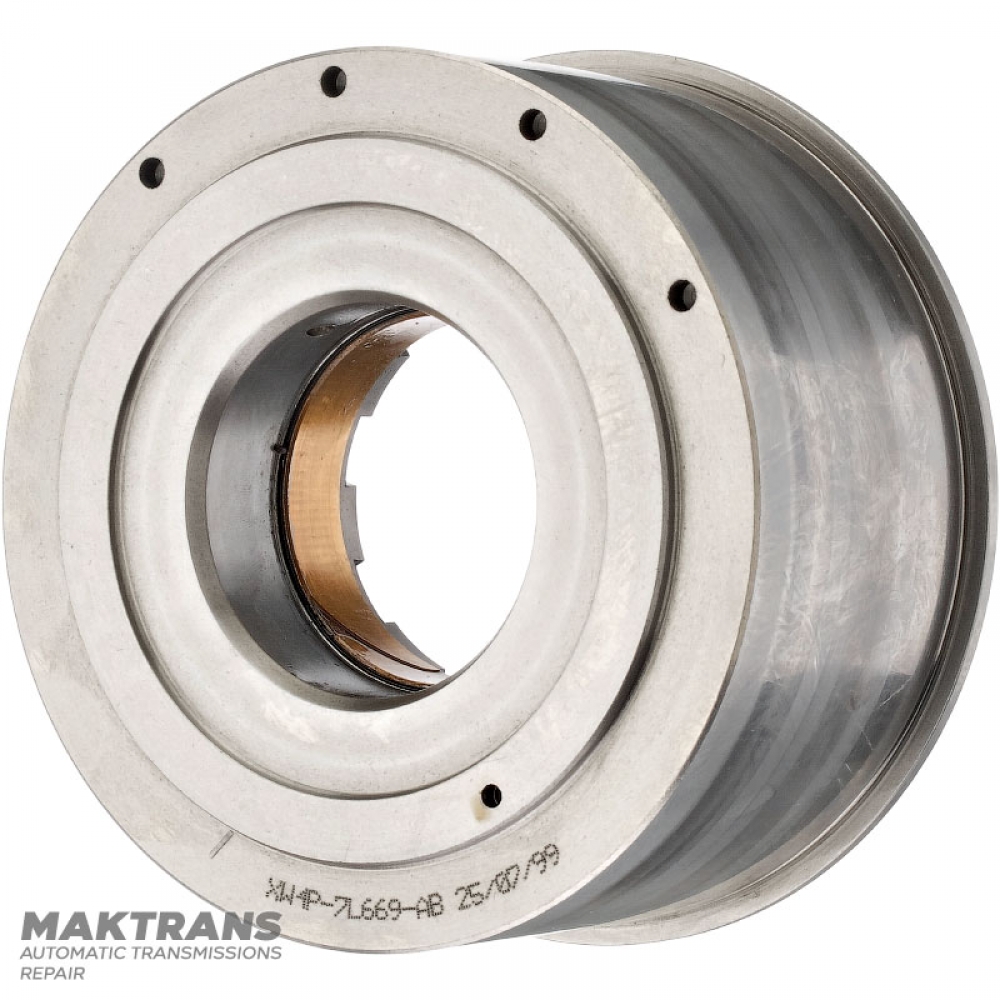

Direct Clutch Drum:

• Overall height - 73 mm;
• Outer diameter (working part of the brake band) - 136.95 mm;
• Inner diameter under the hub - 59.75 mm;
• Inner diameter of the sleeve - 56.65 mm;
• Height from piston to retaining ring - 12 mm;

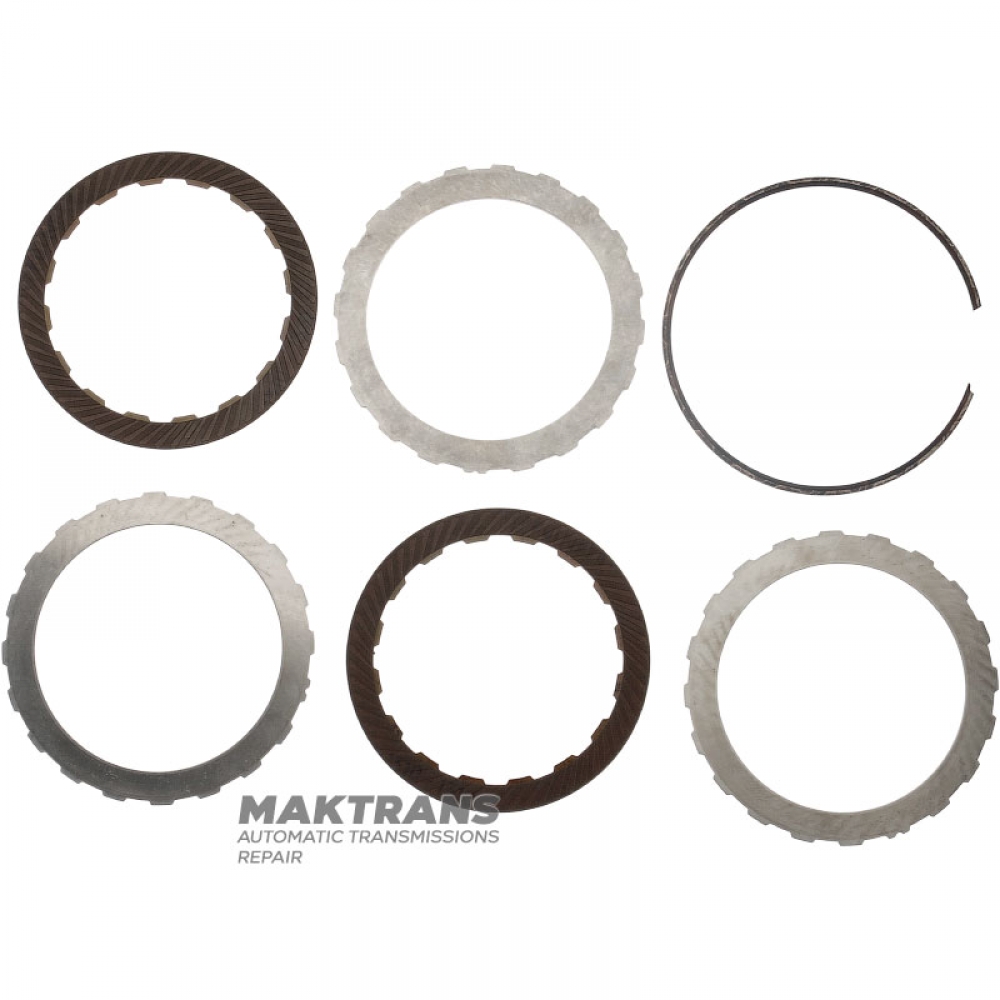

Direct Clutch Steel and Friction Disc Kit:

• Total thickness of the set -

Support disk:

• Thickness - 5.07 mm;
• Inner diameter - 100.50 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.75 mm;
• Outer diameter - 124.35 mm;
• Number of teeth - 16 pcs.;
• Number of teeth in the set - 2 pcs.;

Steel disk:

• Thickness - 1.70 mm;
• Inner diameter - 100.65 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 2 pcs.;
