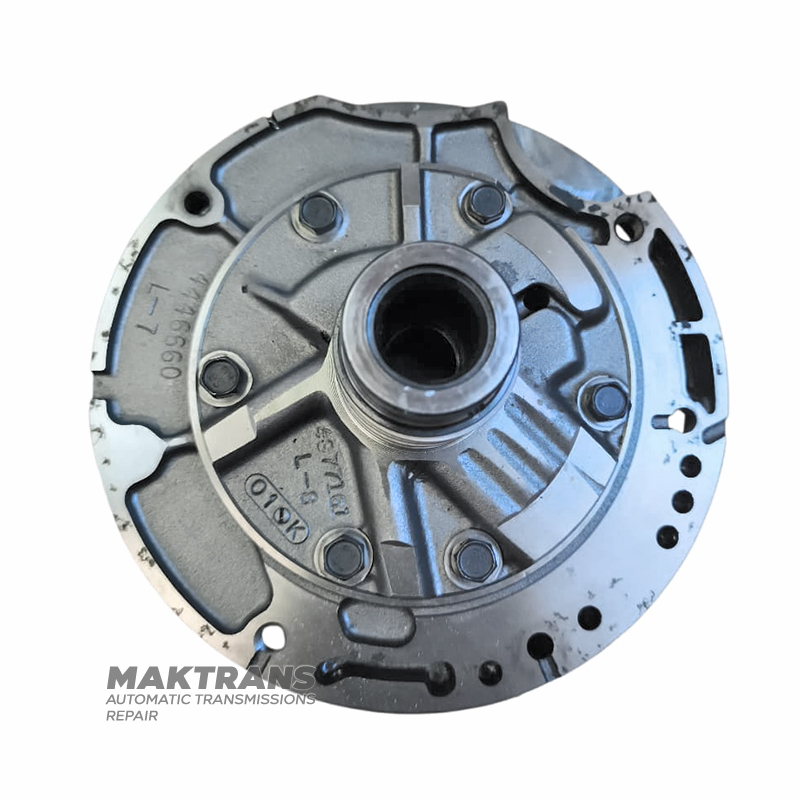

DODGE / CHRYSLER A604, 41TE oil pump - stator height (front side 88 mm)

Hub:

Front side:

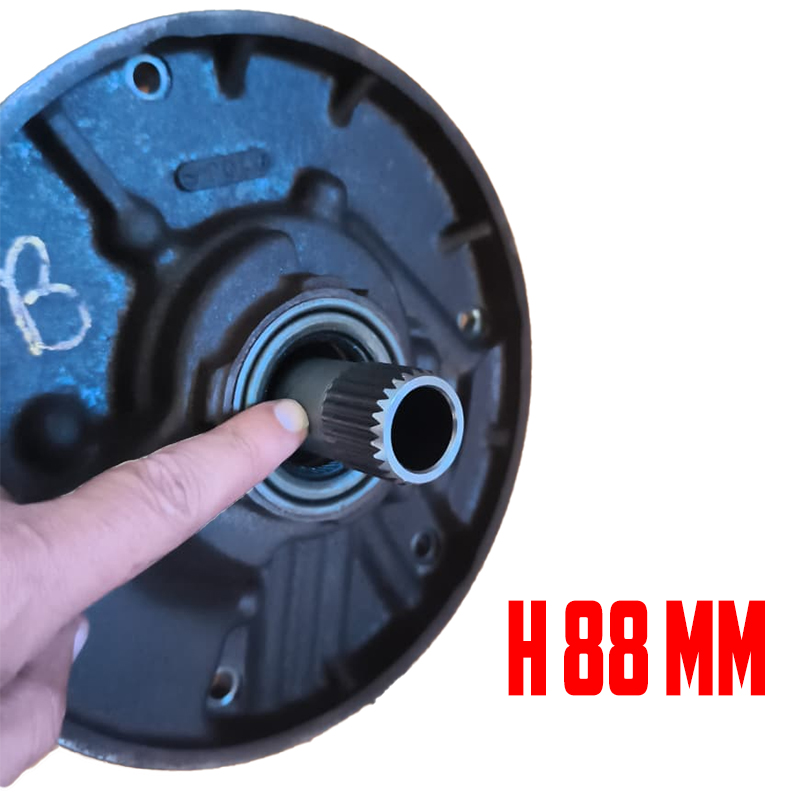

• Stator height (front side) - 88 mm;
• Number of splines - 27 pcs.;
• Outer diameter of splined part - 29.50 mm;

Outer body diameter - 146 mm;

Back side:

• Overall height - 65 mm;
• Number of sealing rings - 4 pcs.;
• Outer diameter over sealing rings - 51.50 mm;
• Outer diameter of the working part - 45.25 mm;

Oil pump:

Gear housing:

• Overall height - 46 mm;
• Outer diameter - 224.15 mm;
• Inner diameter of the sleeve - 38.20 mm;

Oil pump gears:


Pinion gear:

• Thickness - 14.60 mm;
• Inner diameter - 38 mm;
• Number of teeth - 12 pcs.;

Driven gear:

• Thickness - 14.60 mm;
• Outer diameter - 88 mm.;
• Number of teeth - 14 pcs.;
