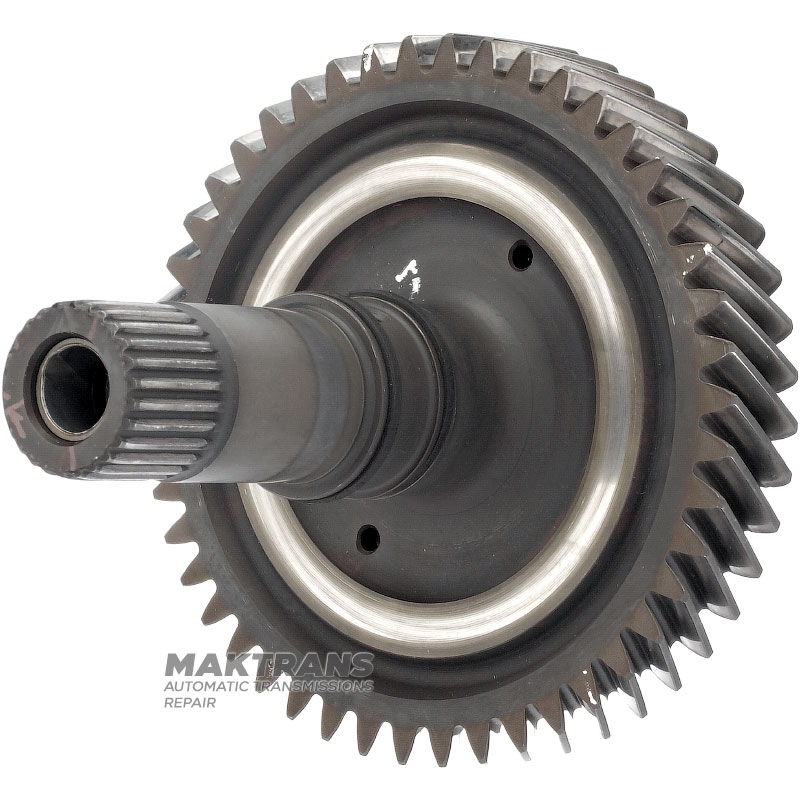

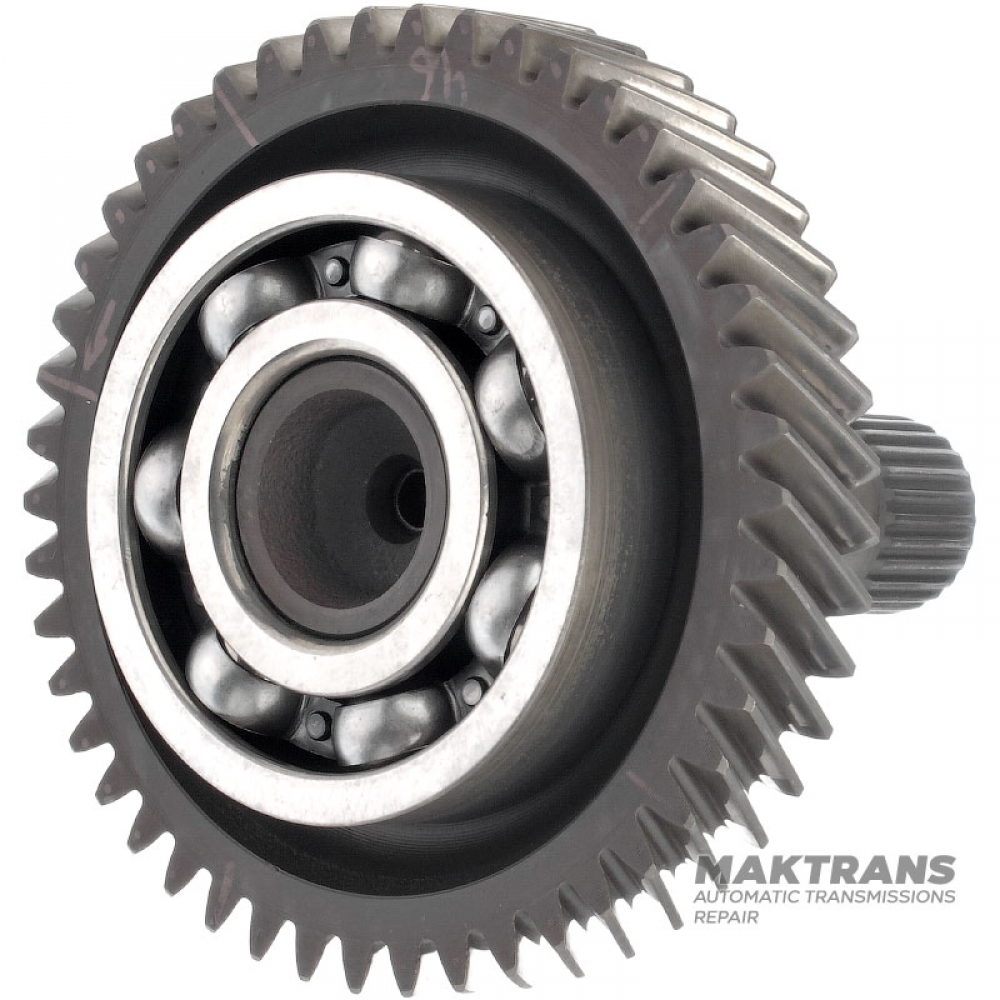

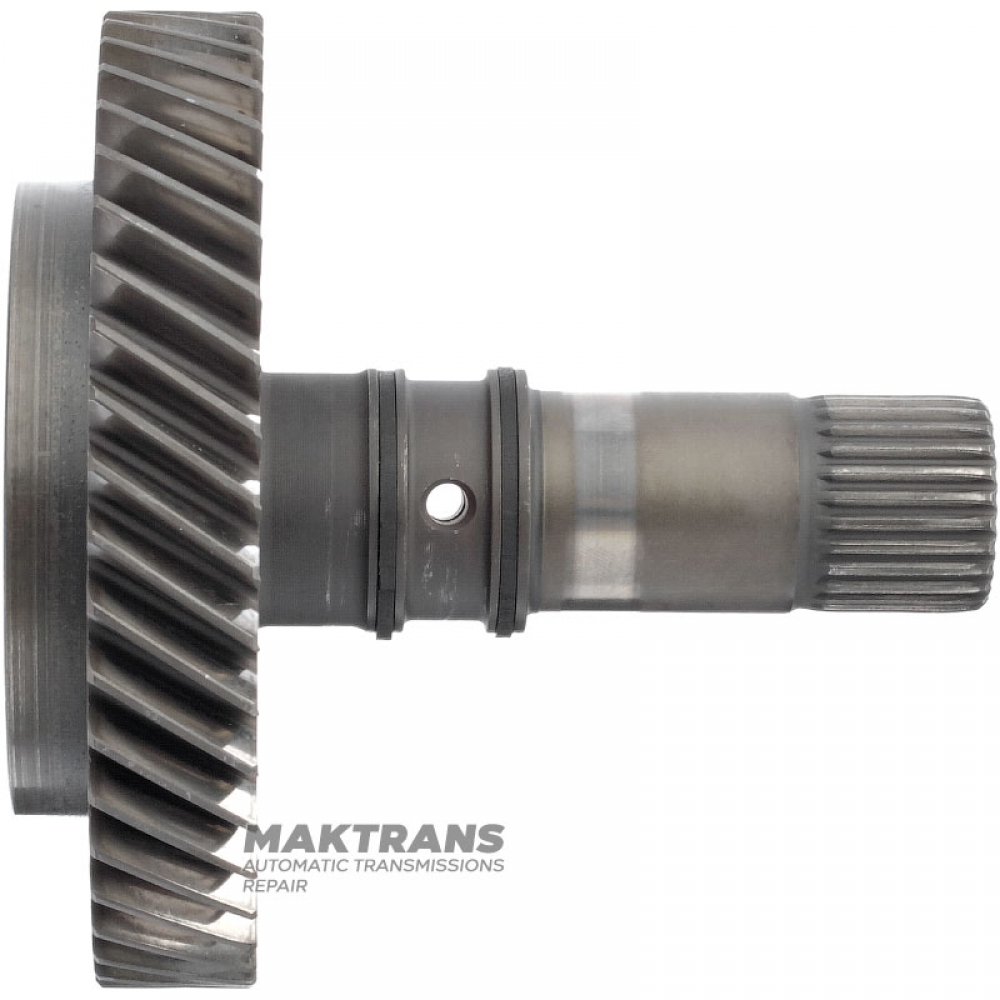

Drive gear of helical pair JATCO JF403E / RE4RF04A - total height 122 mm, 46 teeth (outer Ø 122.55 mm)

• Total height - 122 mm;
• The number of splines on the shaft is 27.65 mm;
• The outer diameter of the spline part is 26 mm;
• The inner diameter of the sleeve is 13.15 mm;
• The outer diameter of the bearing is 80 mm;

Helical gear:

• Number of teeth - 46 pcs.;
• Gear outer diameter - 122.55 mm;
• Gear width - 20.10 mm;
