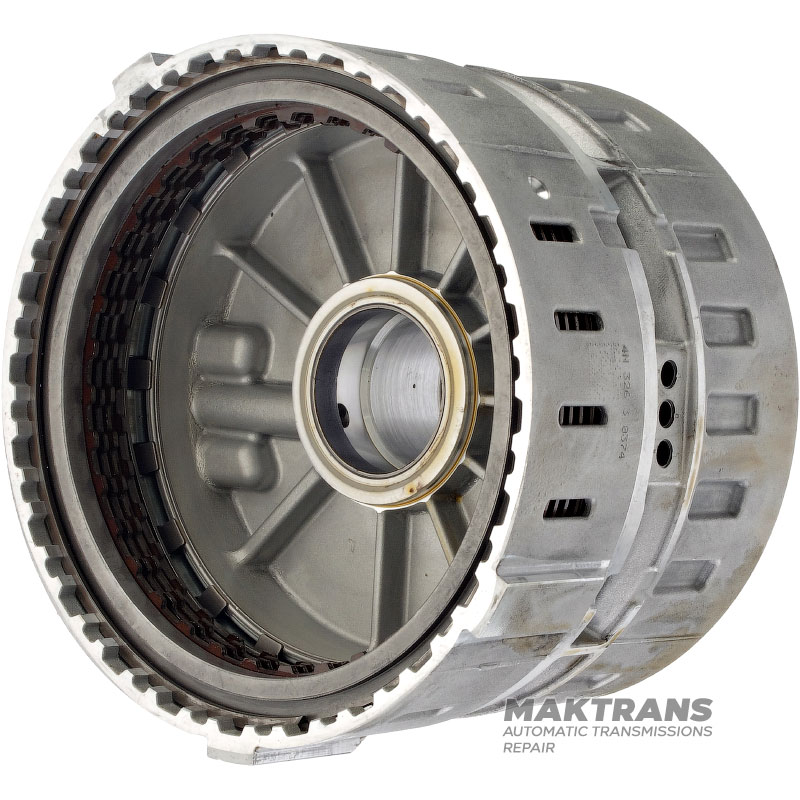

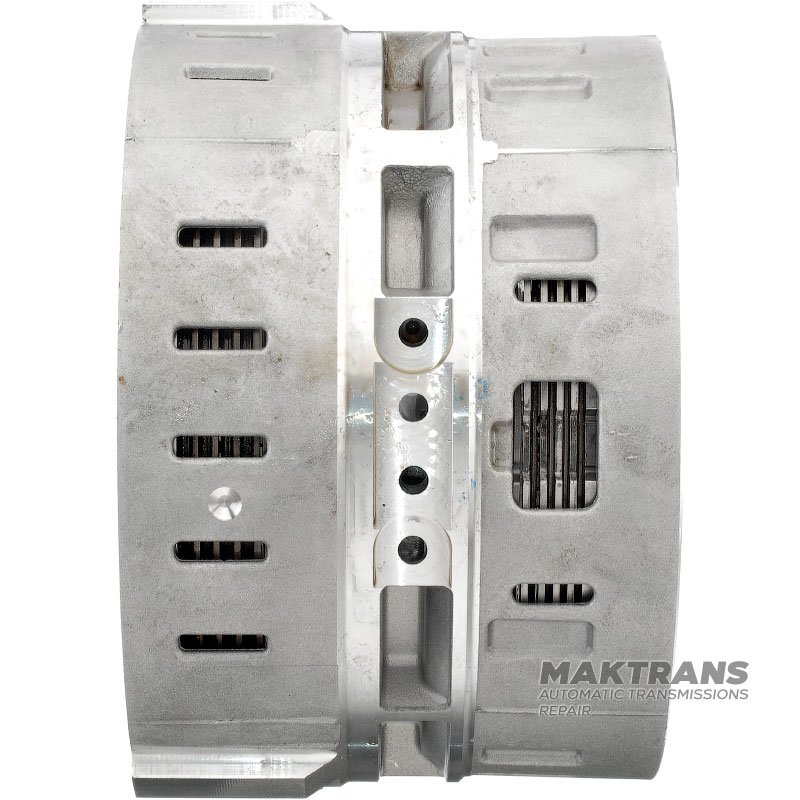

Drum 2-6 Clutch (4x4 friction discs) / Low & Reverse Clutch (4 friction discs) - 200600059

Drum:

• Total height - 132 mm;
• Outer diameter of the drum - 200.40 mm;
• Inner diameter - 44.50 mm;
• The outer diameter of the freewheel hub is 64.10 mm;
• Number of overrunning clutch teeth - 36 pcs.;

2-6 Clutch:

• Height from piston to retaining ring - 27 mm;

Steel and Friction Disc Set 2-6 Clutch:
​​​​

• The total thickness of the set is 23.55 mm;

Support disk:

• Thickness - 8.05 mm;
• Inner diameter - 161.75 mm;
• Number of teeth - 24 pcs.;
• Number of disks included - 1 piece;

Friction disc (internal teeth):

• Thickness - 1.65 mm;
• Outer diameter - 184.15 mm;
• Number of teeth - 36 pcs.;
• Number of discs included - 4 pcs.;

Friction disc (external teeth):

• Thickness - 2.10 mm;
• Inner diameter - 161 mm;
• Number of teeth - 24 pcs.;
• Number of discs included - 4 pcs.;

Spring disc:

• Thickness - 1.50 mm;
• Inner diameter - 123.40 mm;
• Number of teeth - 20 pcs.;
• Number of disks included - 1 piece;

Low/Reverse:

• Height from piston to retaining ring - 21.60 mm;

Low/Reverse Clutch Steel and Friction Disc Set:
​​​​

• The total thickness of the set is 23.55 mm;

Support disk:

• Thickness - 7.95 mm;
• Inner diameter - 157.40 mm;
• Number of teeth - 24 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 1.70 mm;
• Outer diameter - 177.35 mm;
• Number of teeth - 44 pcs.;
• Number of discs included - 4 pcs.;

Steel disc:

• Thickness - 1.75 mm;
• Inner diameter - 157.95 mm;
• Number of teeth - 24 pcs.;
• Number of discs included - 4 pcs.;

Spring disc:

• Thickness - 1.70 mm;
• Inner diameter - 158.05 mm;
• Number of teeth - 8 pcs.;
• Number of disks included - 1 piece;
