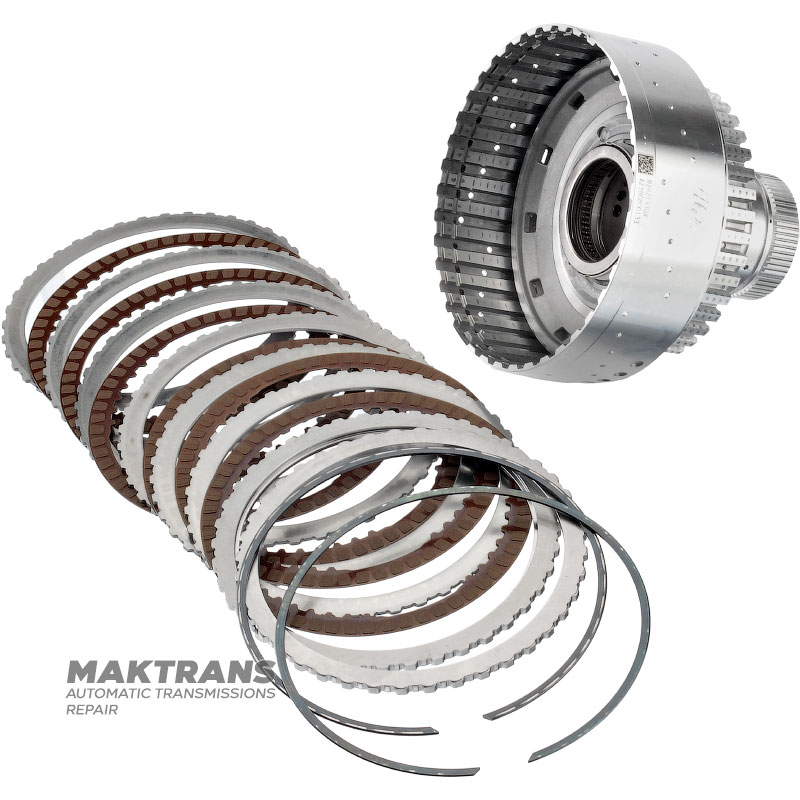

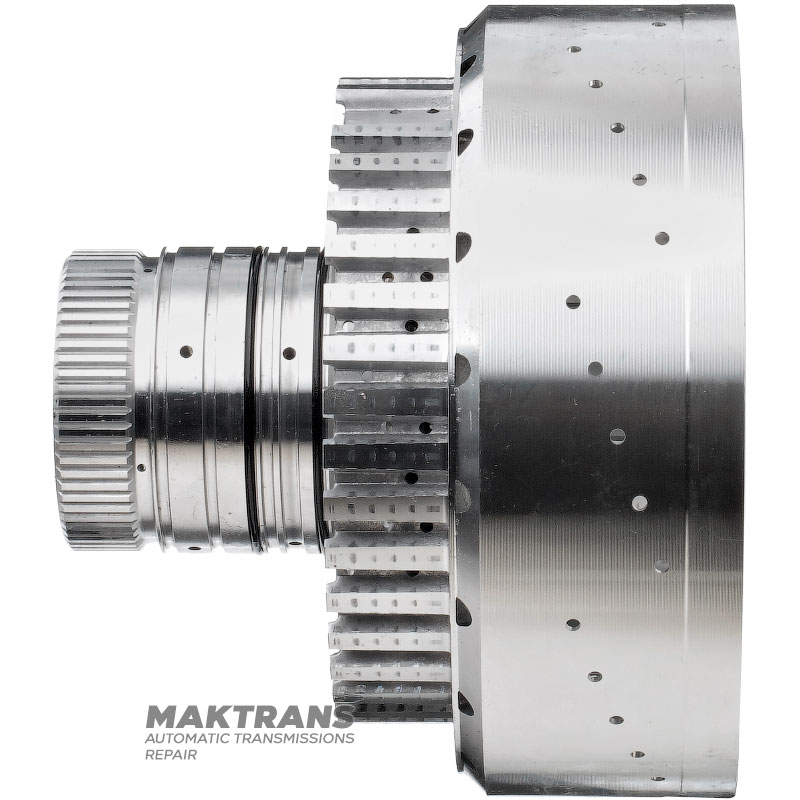

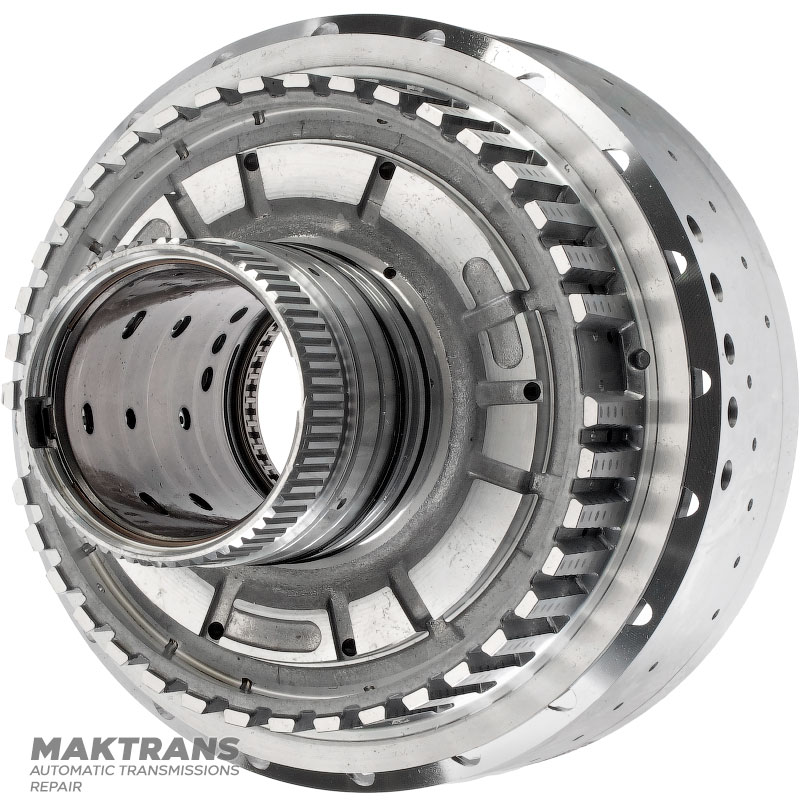

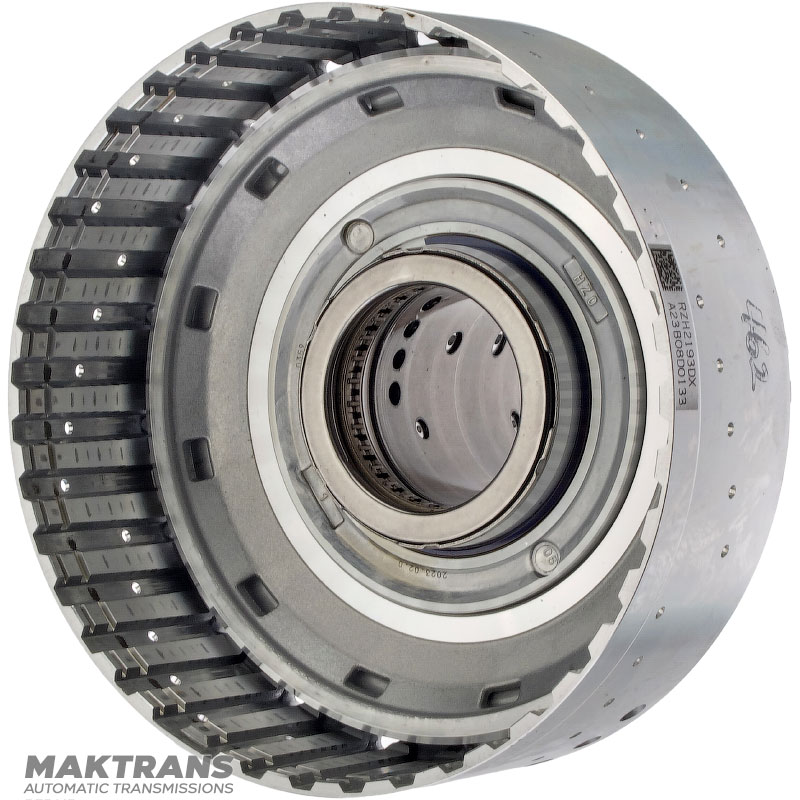

Drum 3-4 Clutch MAZDA Hybrid 8-speed transmission RZ42, RZ44 - 6 friction discs, 2 support steel discs, (total thickness of the kit 30.60 mm)

• Overall height - 147 mm;
• Drum outer diameter - 174 mm;
• Number of splines on the drum neck - 64 pcs.;
• The outer diameter of the splined part is 66.70 mm;
• The height of the outer hub from the plane is 26 mm;

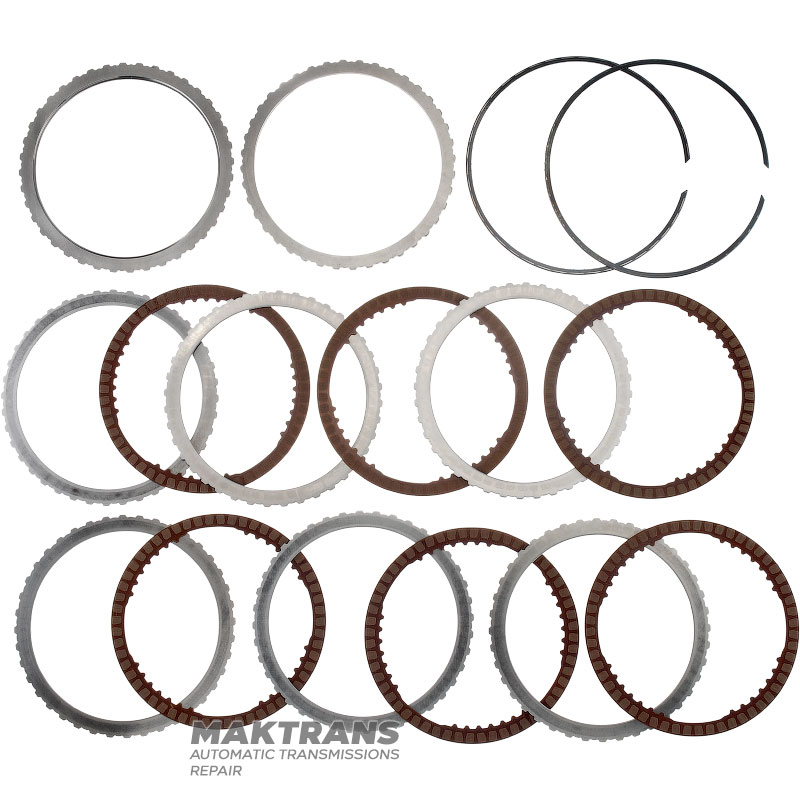

Steel and friction disc set 3-4 Clutch:

• The total thickness of the set is 30.70 mm;

Support disc (installed in front of the 3-4 Clutch clutch pack):

• Thickness - 4.70 mm;
• Inner diameter - 142.85 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;

Support disk:

• Thickness - 4.70 mm;
• Inner diameter - 142.85 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.80 mm;
• Outer diameter - 163.64 mm;
• Number of teeth - 28 pcs.;
• Number of teeth in the set - 6 pcs.;

Steel disk:

• Thickness - 2.52 mm;
• Inner diameter - 140.60 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 6 pcs.;
