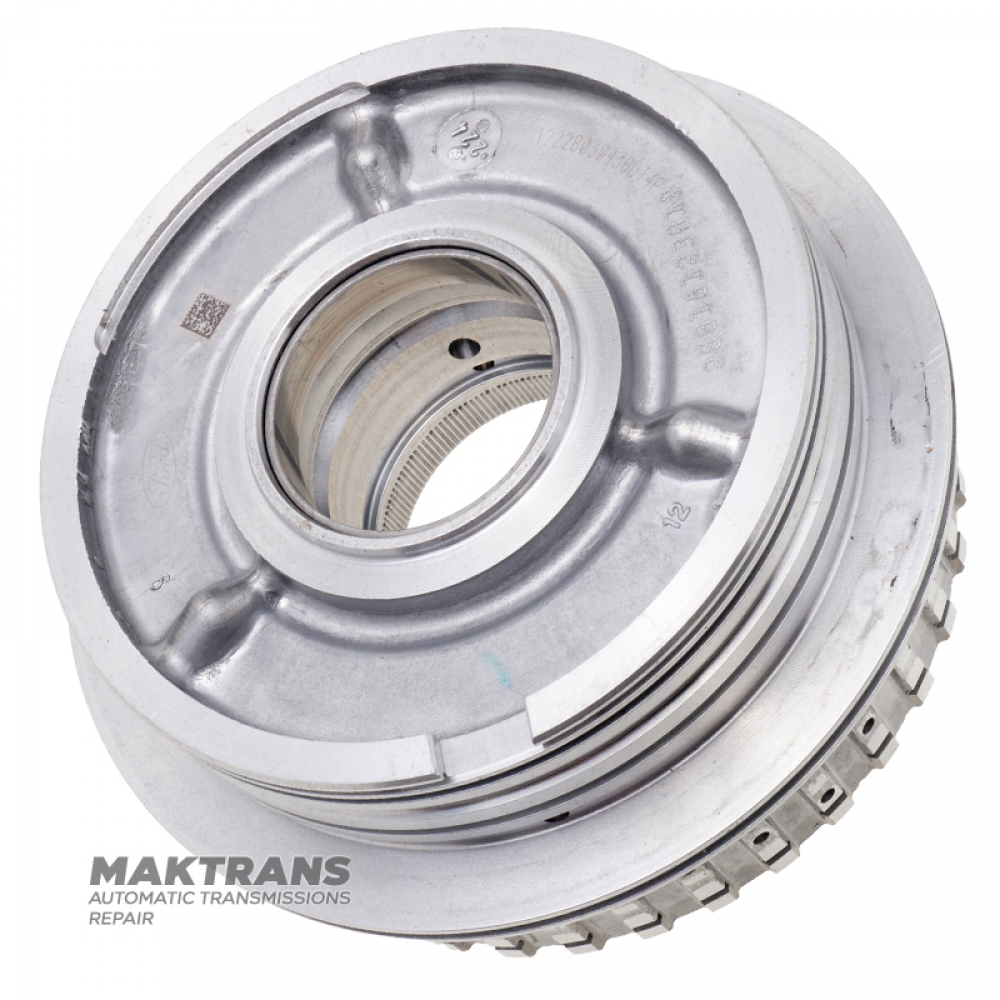

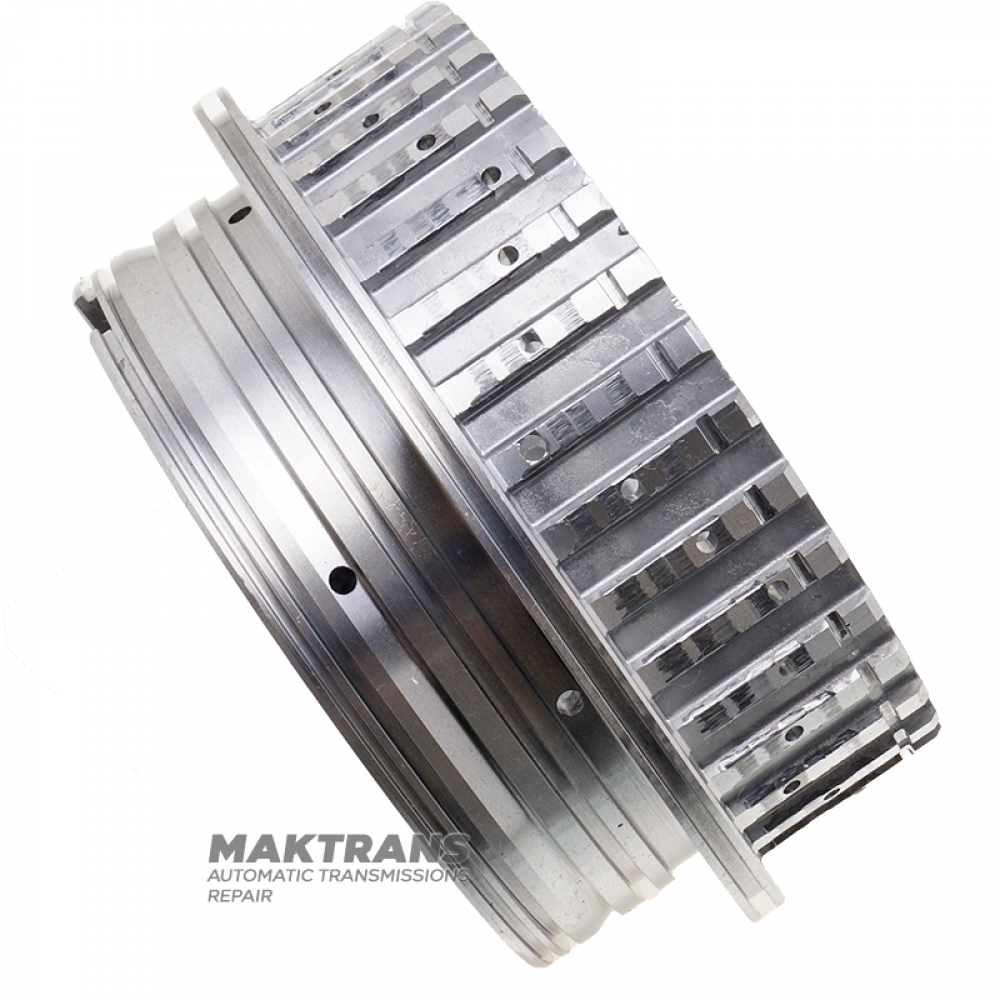

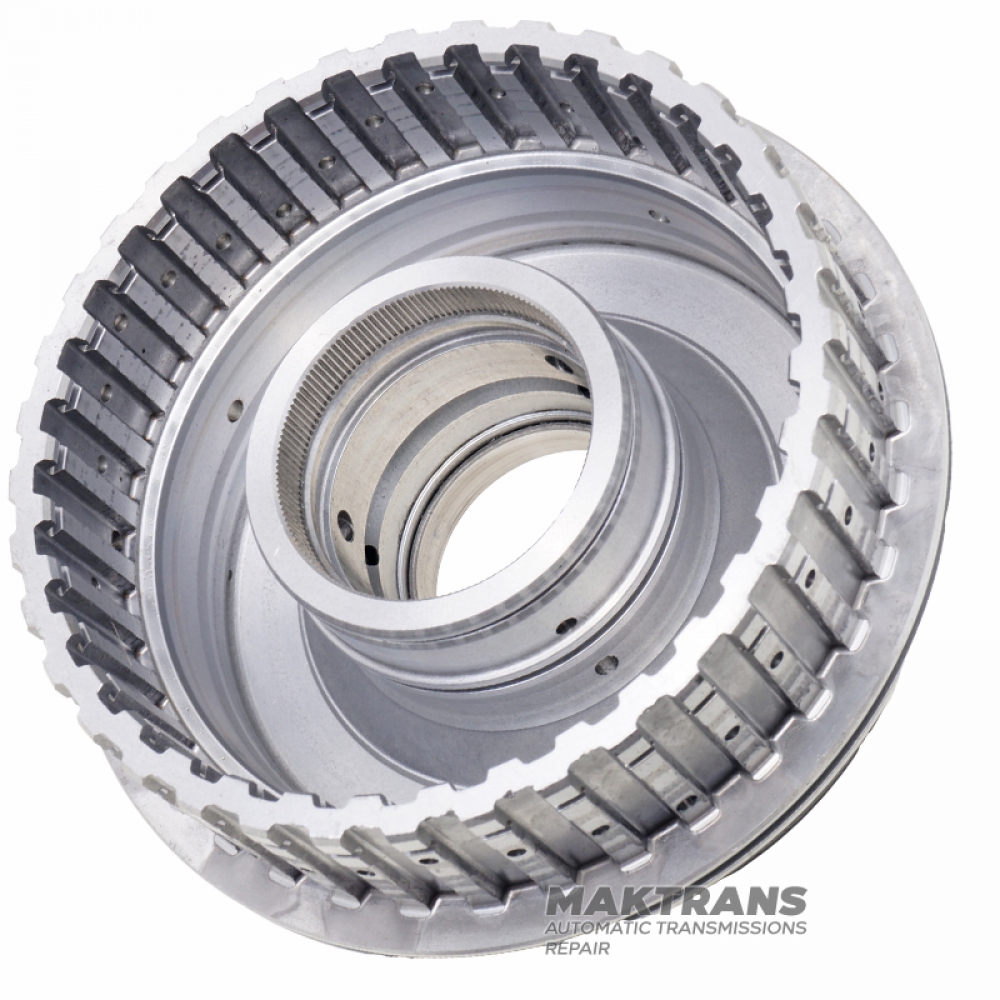

Drum 3-5-R / 4-5-6 Clutch Ford 6F50, 6F55, GM 6T70, 6T75 — empty, without shaft, for restoration, 7T4Z-7G384-A

• Overall height - 73 mm;
• Outer diameter - 154.70 mm;
• Inner diameter of the sleeve - 46.50 mm;
• Number of teeth on the outer side - 36 pcs. (ext. Ø 139.95 mm);
• Number of teeth on the inner side - 36 pcs.;

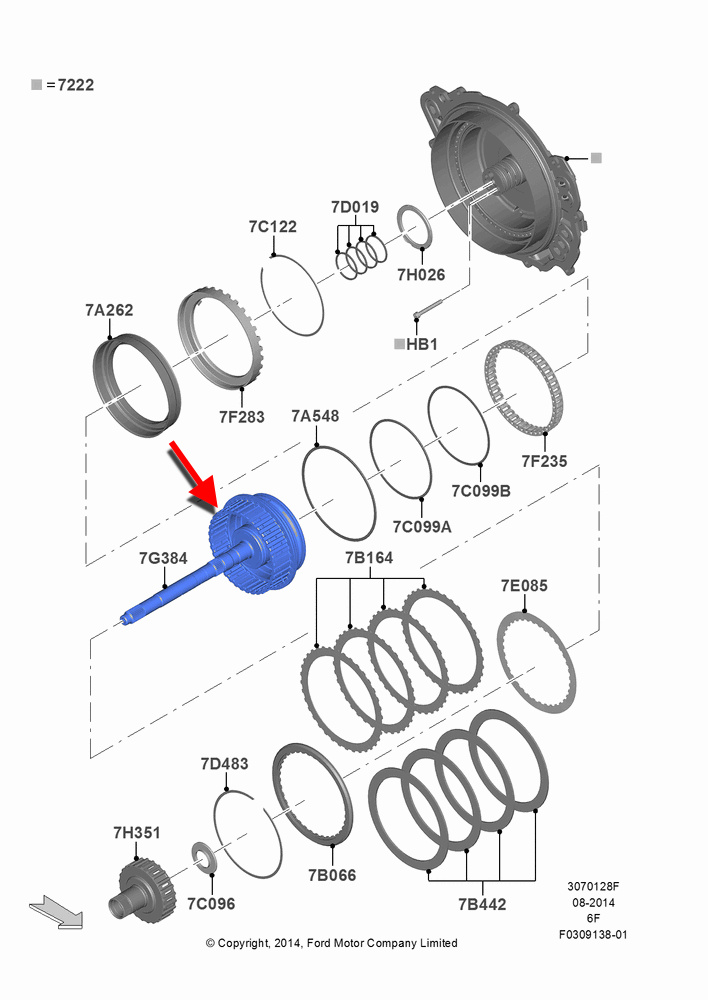

This drum was pressed from the input shaft. In this model's transmissions, the shaft is integral with the 3-5-R / 4-5-6 drum cylinder. Radial wear from the Teflon rings often forms on the inside of the cylinder before the aluminum drum wears out.

To re-press the shaft into the drum, it is necessary to make preparations, namely, weld a volume of metal in place of the old splines that were cut by the steel shaft during the initial installation.

After this, the shaft can be reinstalled. This sequence ensures a secure connection.
Installing the shaft onto existing splines does not guarantee a secure connection and will result in the drum spinning on the shaft!!!
