Main Specifications
Condition (used, new):
refurbished
Type:
Drum 4-6-R / 5-7 Clutch
If you order more than 28 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 24 pcs. |
  |
| Poland | 4 pcs. |
|
| Ukraine | 55 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (7)

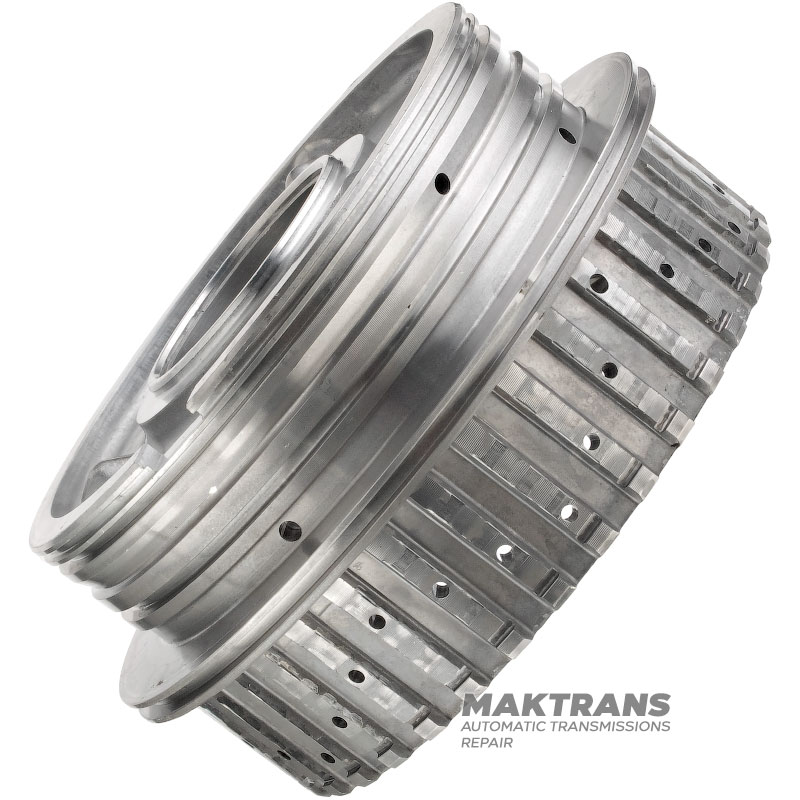

- Overall height - 73 mm;
- Outer diameter - 154.70 mm;
- Inner diameter of the sleeve - 46.50 mm;
- Number of teeth on the outer side - 36 pcs. (ext. Ø 139.95 mm);
- Number of teeth on the inner side - 36 pcs.;

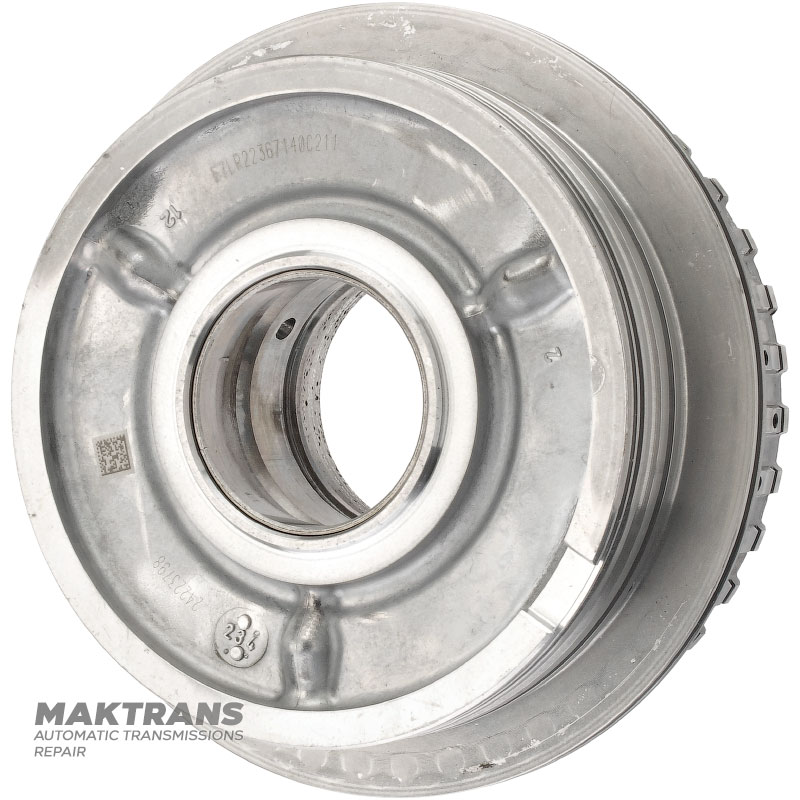

This drum was removed from used FORD 8F57 transmissions that had damaged input shafts.
We removed the shaft, which was originally pressed into the body of the drum , and cut splines in it. On the inner surface there were traces of the previous fit.
To restore the geometry, a new aluminum layer was welded on and then processed to a standard size. This allows the new shaft to be pressed in and ensures its secure fixation in the drum body.
The surface finish may have slight porosity , which is acceptable. When pressed, the shaft with more than 200 small splines independently forms the seats, cutting them during pressing. This ensures a reliable connection and eliminates the possibility of the shaft turning in the drum.
