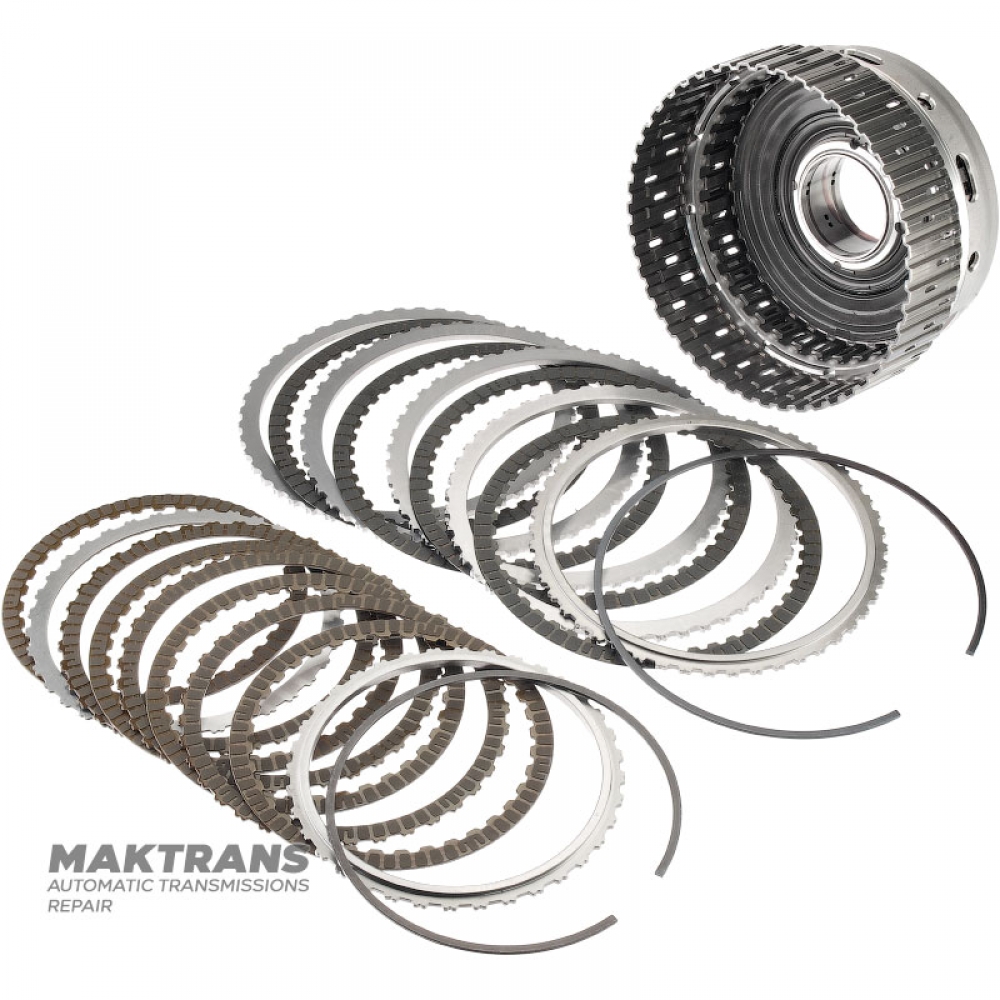

Drum 3-7-R / 4-6 Clutch VAG 09H, AQ451 (8-speed transmission) — 3-7-R Clutch (4 friction discs), 4-6 Clutch (8 single-sided friction discs)

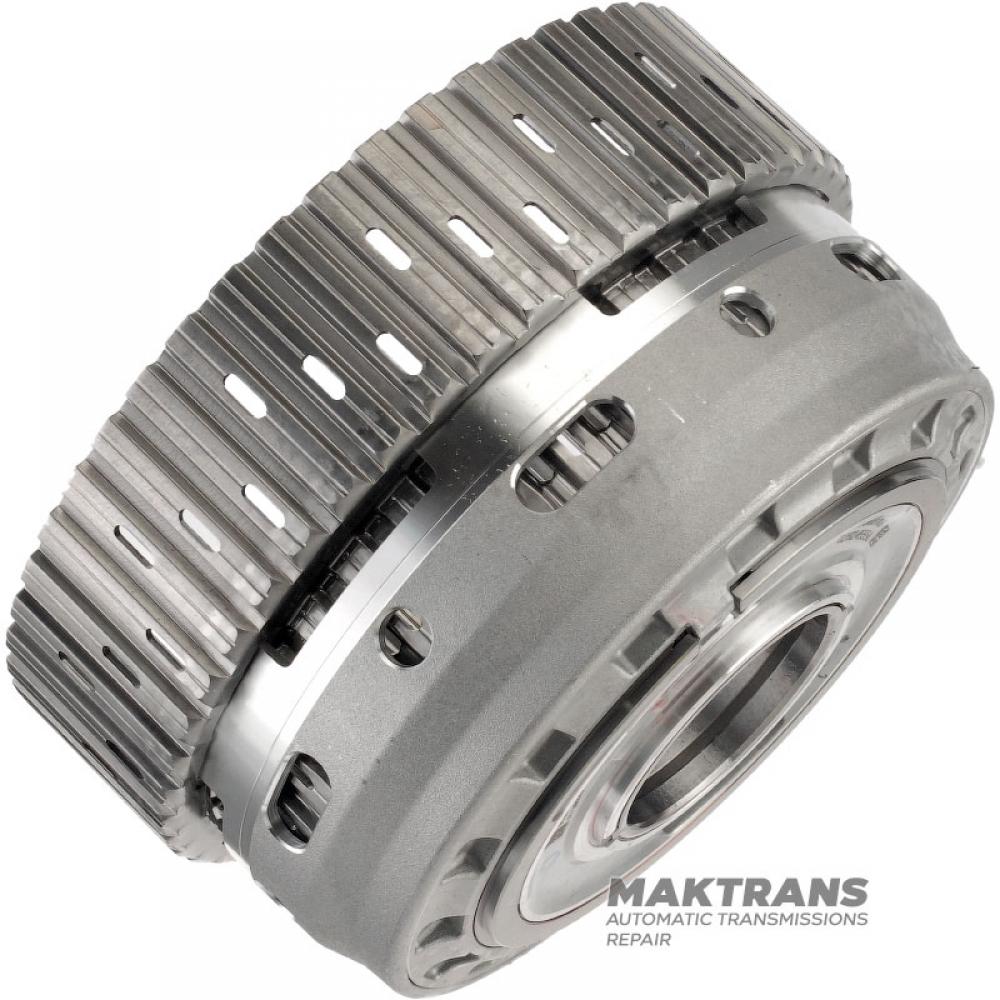

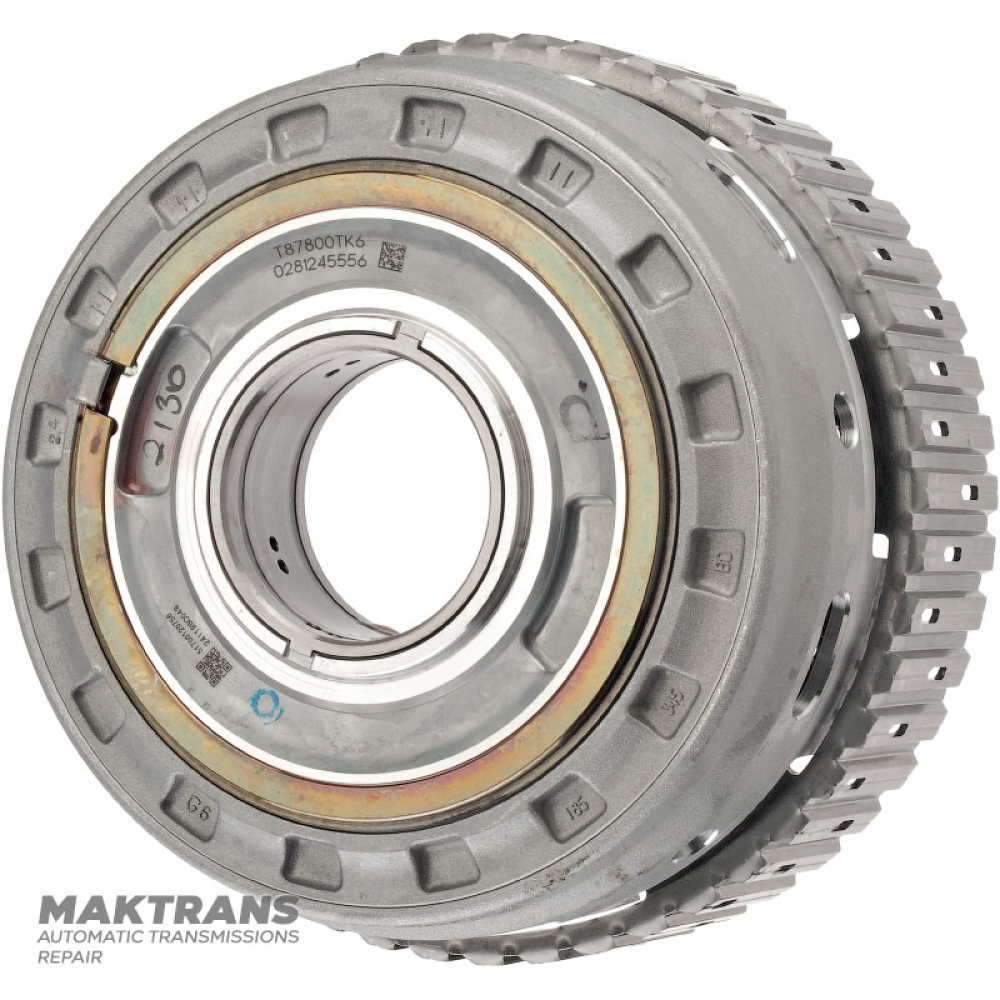

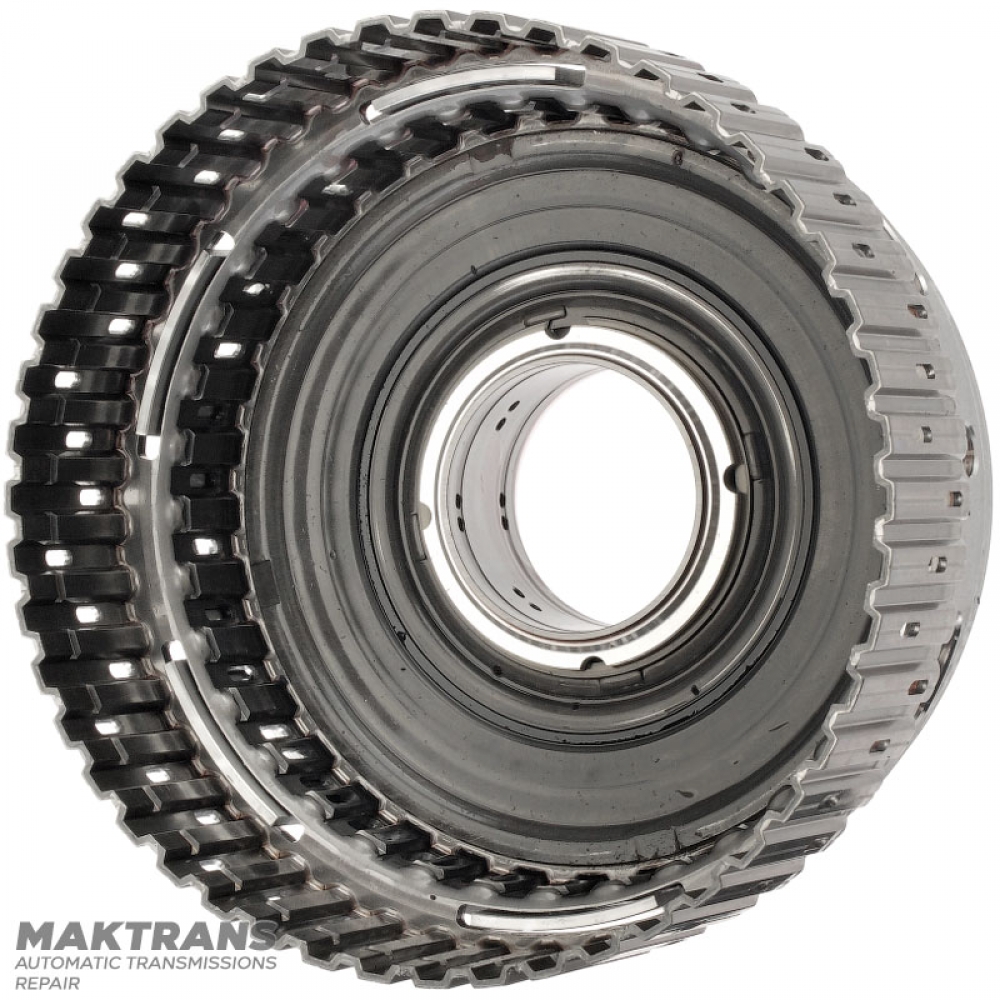

Drum:

• Total drum height - 111 mm;
• Inner diameter under the drum hub - 58.45 mm;
• Drum outer diameter - 198.85 mm | 183 mm;
• Height from piston to retaining ring 3-7-R Clutch (larger diameter package) - 26 mm;
• Height from piston to retaining ring 4-6 Clutch (smaller diameter package) - 20 mm;

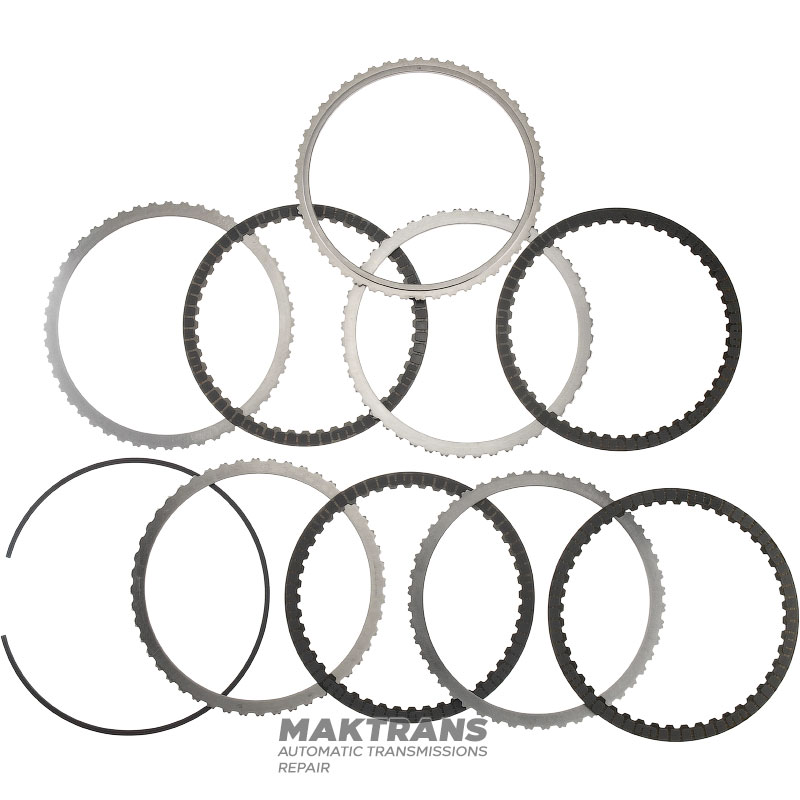

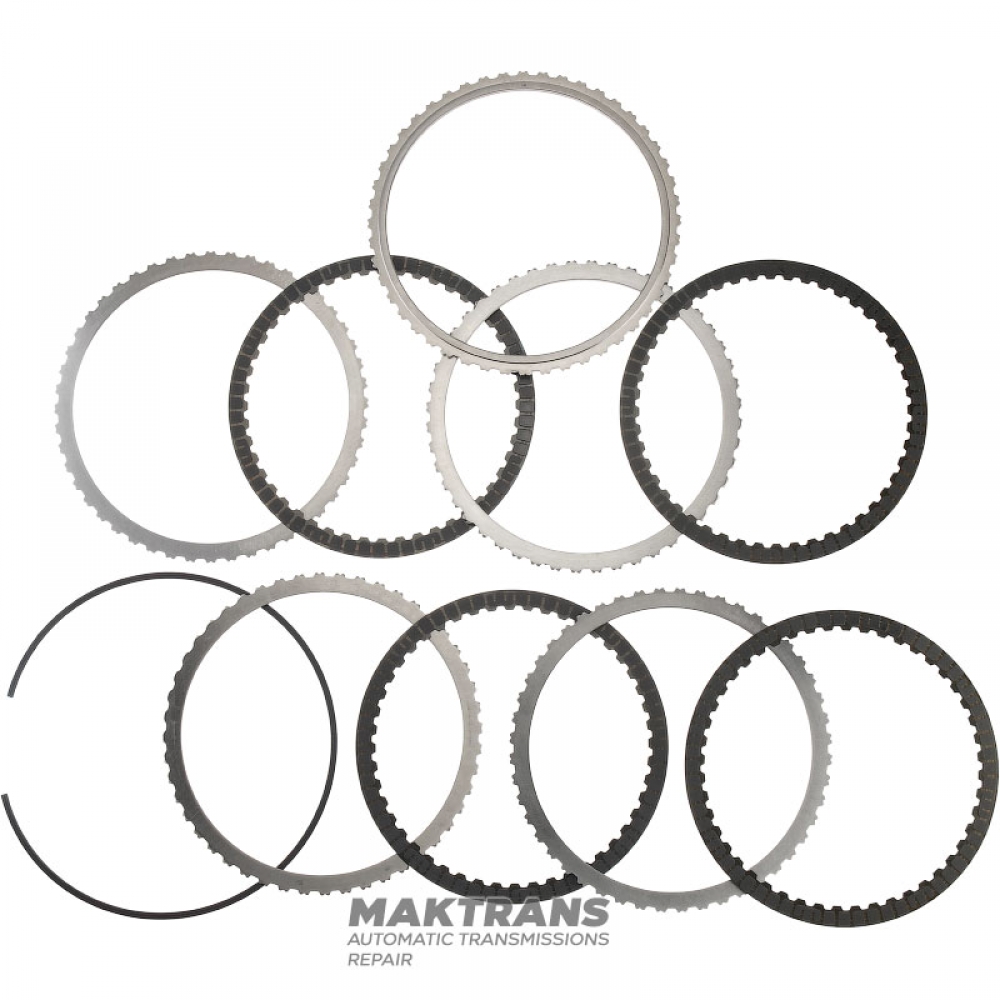

3-7-R Clutch Steel and Friction Kit:

• Total thickness of the set - 26.40 mm;

Support disk:

• Thickness - 4.80 mm / (3 mm);
• Inner diameter - 168.80 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.65 mm;
• Outer diameter - 188 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 4.02 mm;
• Inner diameter - 168.75 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 3 pcs.;

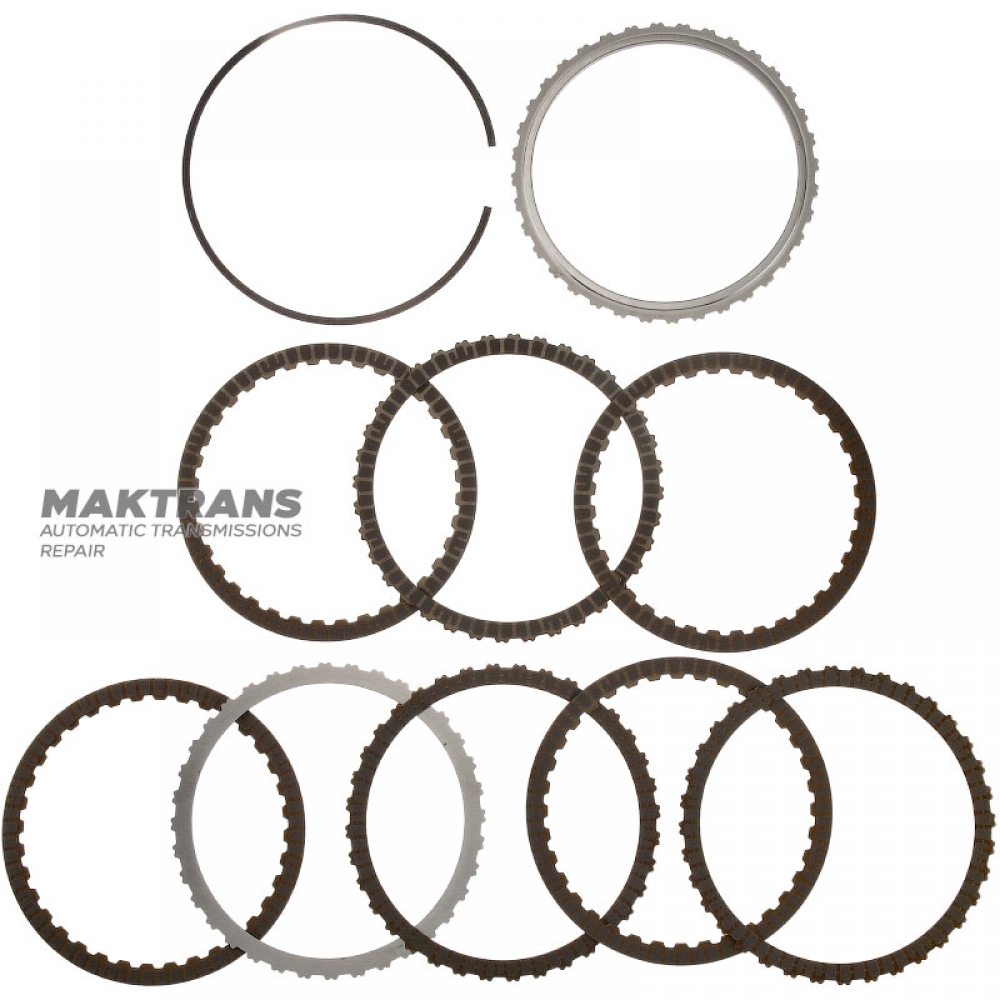

Steel and Friction 4-6 Clutch Kit:

• The total thickness of the set is 20 mm;

Support disk:

• Thickness - 5.20 mm / (2.50 mm);
• Inner diameter - 145.40 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc (single side, internal teeth):

• Thickness - 2.20 mm;
• Outer diameter - 163.40 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 4 pcs.;

Friction disc (single side, external teeth):

• Thickness - 2.20 mm;
• Inner diameter - 145.40 mm;
• Number of teeth - 36 pcs.;
• Number of discs in the set - 4 pcs.;

Tags: 45762-T87800, 45762T87800, 45762 T87800, 24119BO049
