Main Specifications
Condition (used, new):
used and inspected
Type:

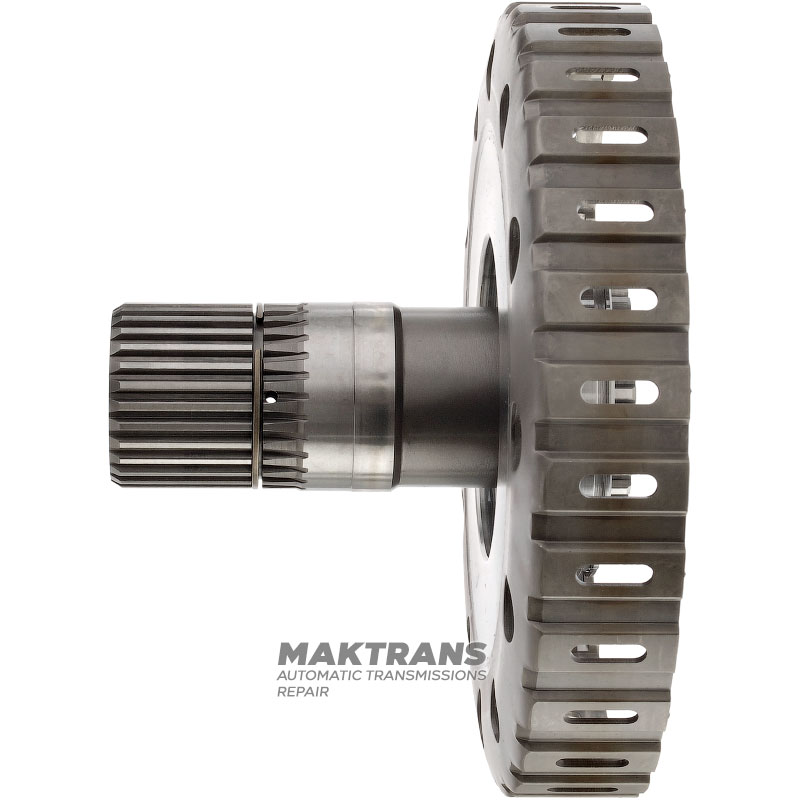

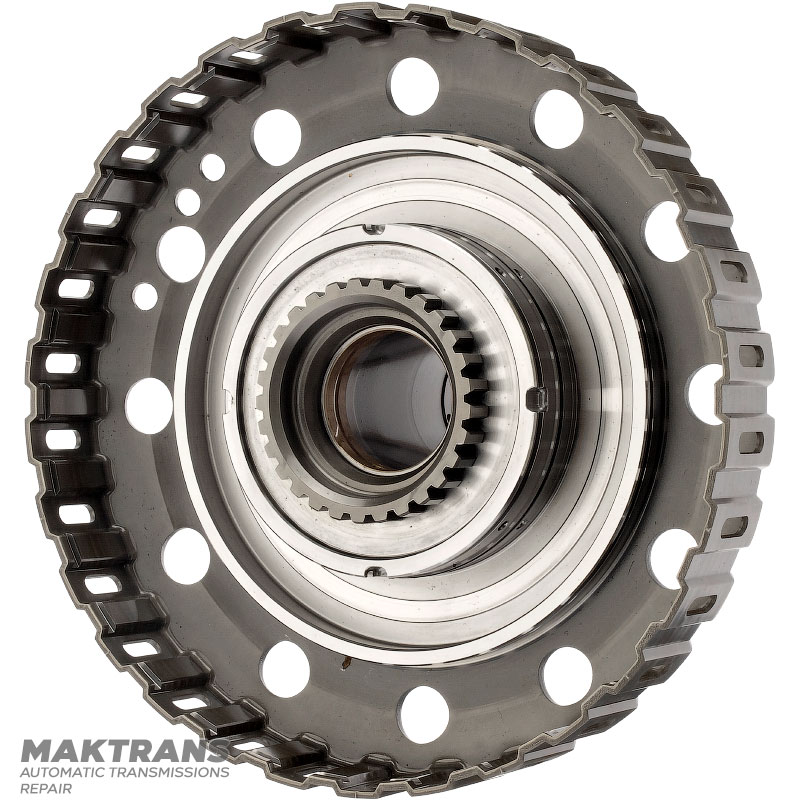

6TH Clutch Drum
Equipment level:
Empty, without discs and pistons
Available Options
| Stock Place: | Availability: | Qty: |
| Ukraine | 1 pcs. |
  |
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Total height - 130 mm;
- Drum outer diameter - 198.65 mm;
- Shaft height from base - 115 mm;
- Number of splines - 29 pcs.;
- Outer diameter of spline part - 46.35 mm;
- The diameter of the working parts of the shaft is 47.45 mm;
- Number of splines on the rear part of the drum - 29 pcs. | OD 61.80 mm;
