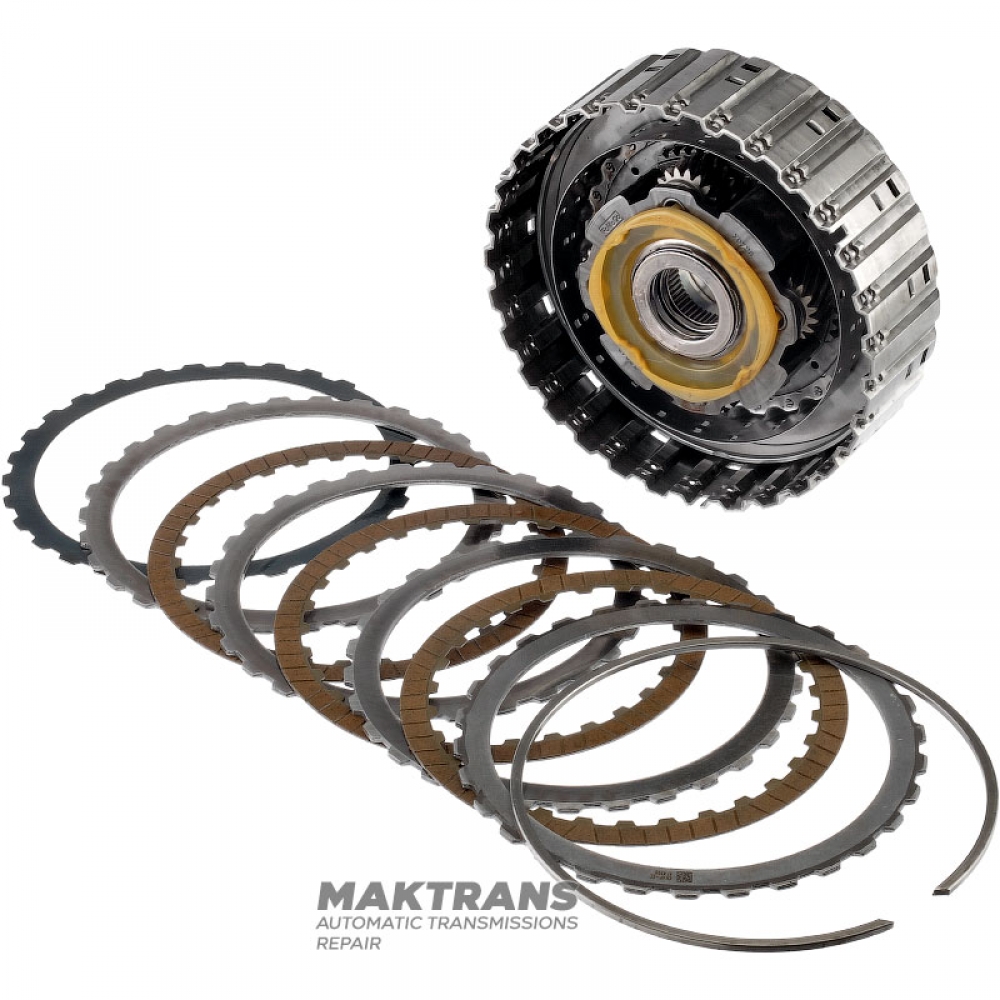

Drum A Clutch / Front Planetary Gear (4 Pinions) FORD 6R60 6R75 6R80 - 3 Friction Discs (Total Kit Thickness 16.90mm)

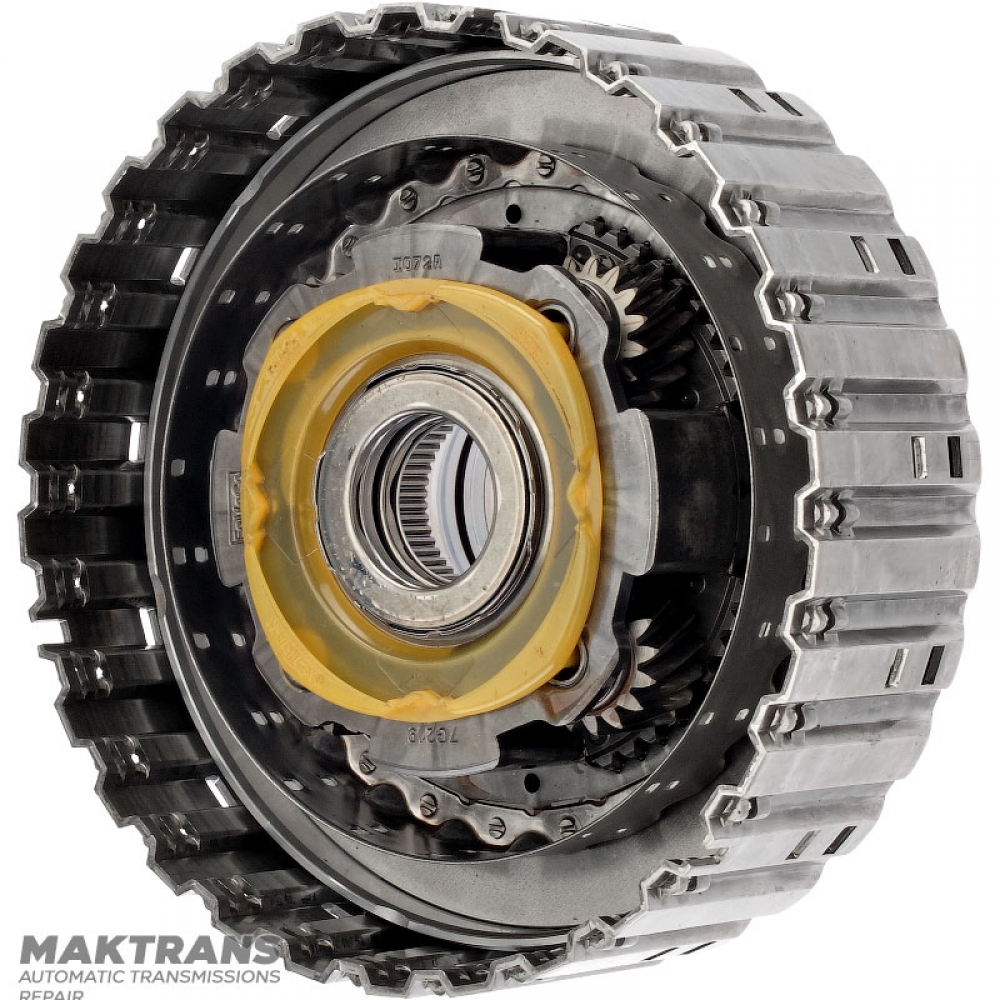

Drum:

• Overall height - 82 mm;
• Drum outer diameter - 200.80 mm;
• Inner diameter (under hub) - 59.50 mm;
• Height from piston to retaining ring - 19 mm;

Planetary gear:

• Number of satellites - 4 pcs.;
• Number of teeth on satellites - 16 pcs.;

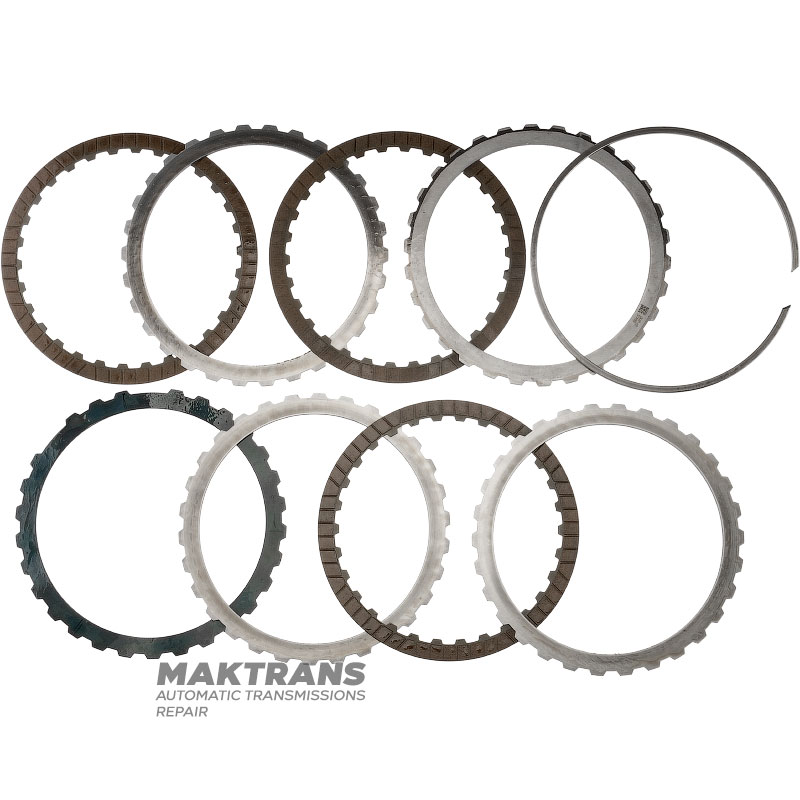

FORWARD Clutch steel and friction disc kit:

• The total thickness of the set is 16.90 mm;

Support disk:

• Thickness - 3 mm;
• Inner diameter - 163.80 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.65 mm;
• Outer diameter - 187.25 mm;
• Number of teeth - 30 pcs.;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 0.90 mm;
• Inner diameter - 163.85 mm;
• Number of teeth - 28 pcs.;
• Number of discs in the set - 1 pc.;
