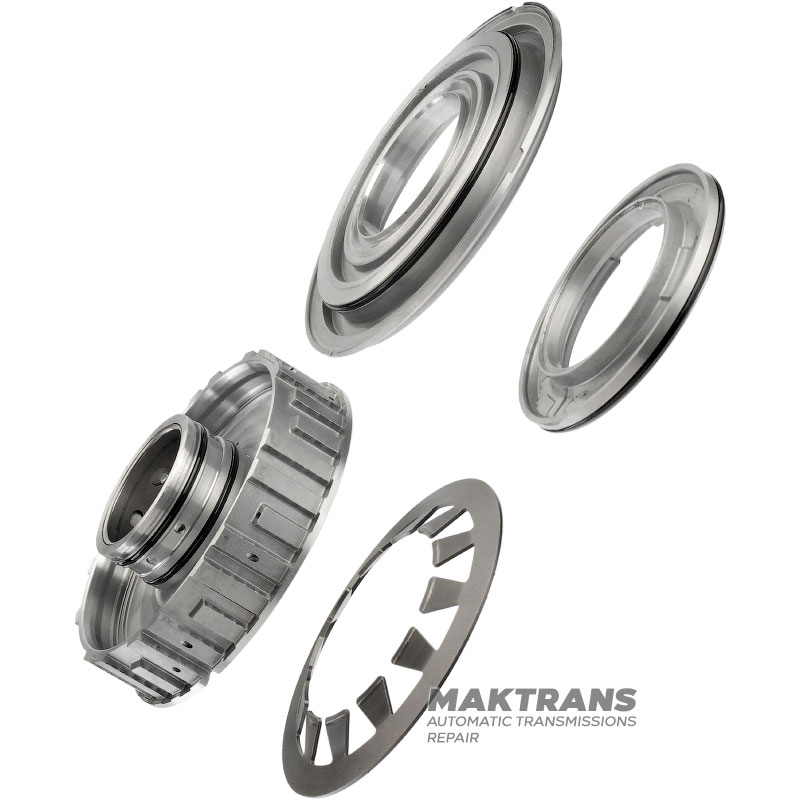

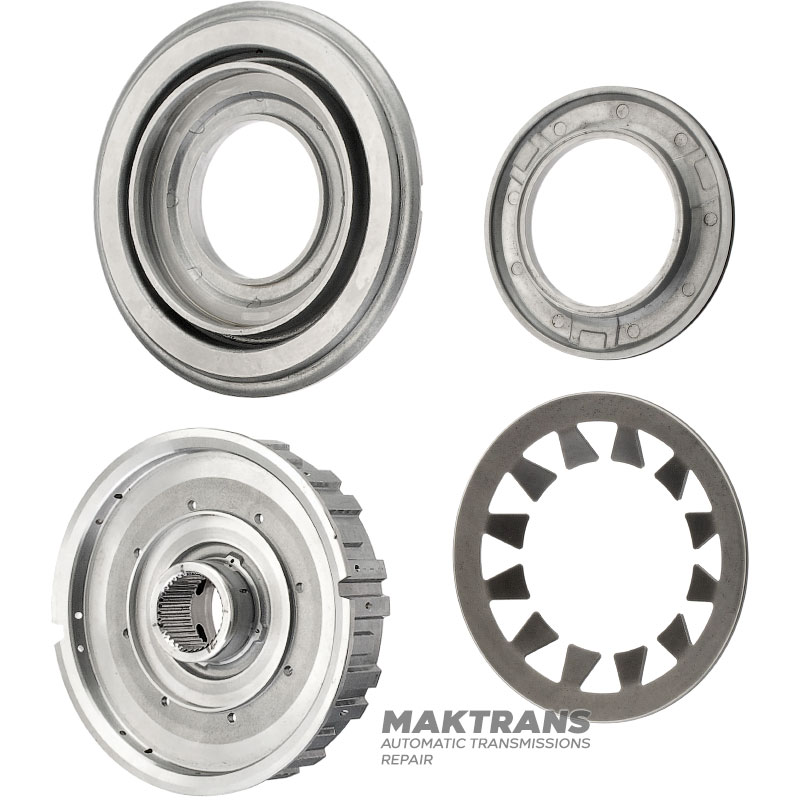

Drum B Clutch ZF 9HP48 / CHRYSLER 948TE - without disc kit

Drum B Clutch:

• Overall height - 51 mm;
• Outer diameter - 141.70 mm;
• Number of splines - 36 pcs.;
• Inner diameter under the hub - 49.25 mm.;

Piston:

• Total height - 20 mm;
• Outer diameter - 157.20 mm;
• Inner diameter - 62.70 mm;

Piston:

• Overall height - 15 mm;
• Outer diameter - 100.75 mm;
• Inner diameter - 61.90 mm;

Return spring:

• Thickness - 1.70 mm;
• Outer diameter - 122.50 mm;
