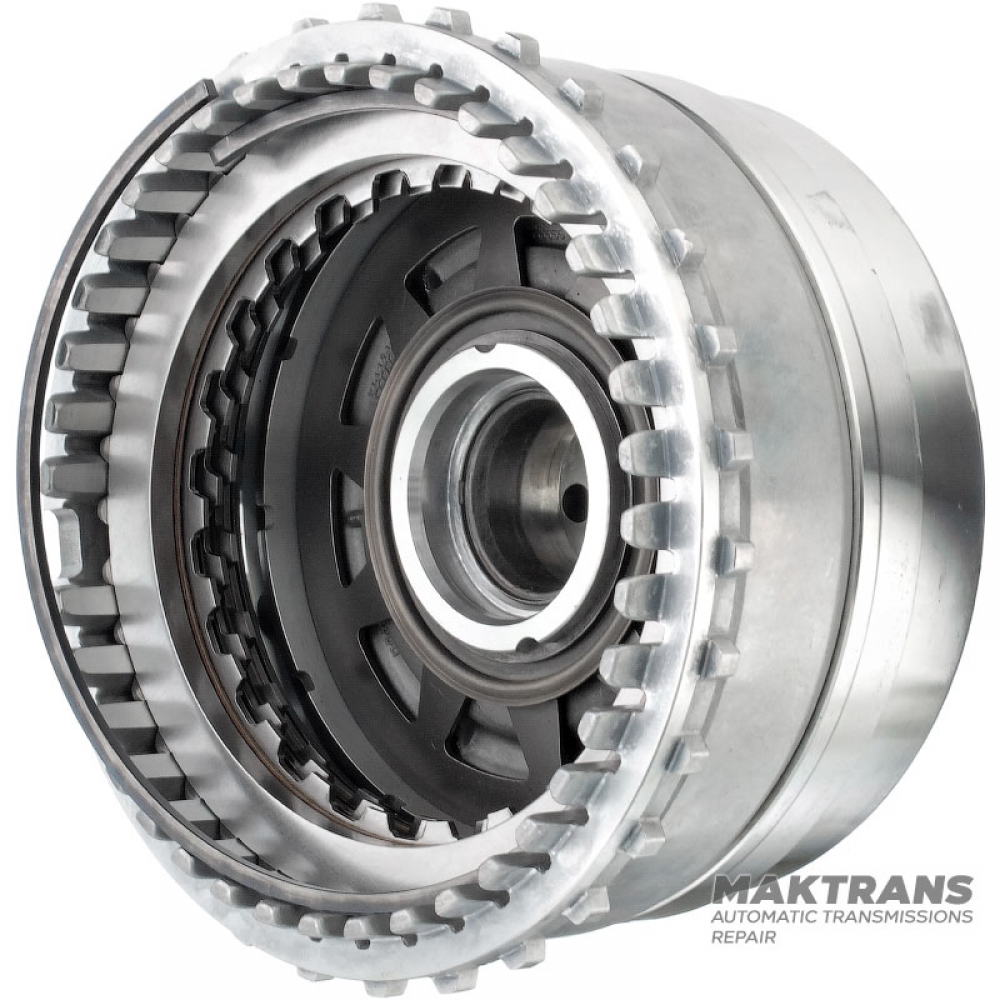

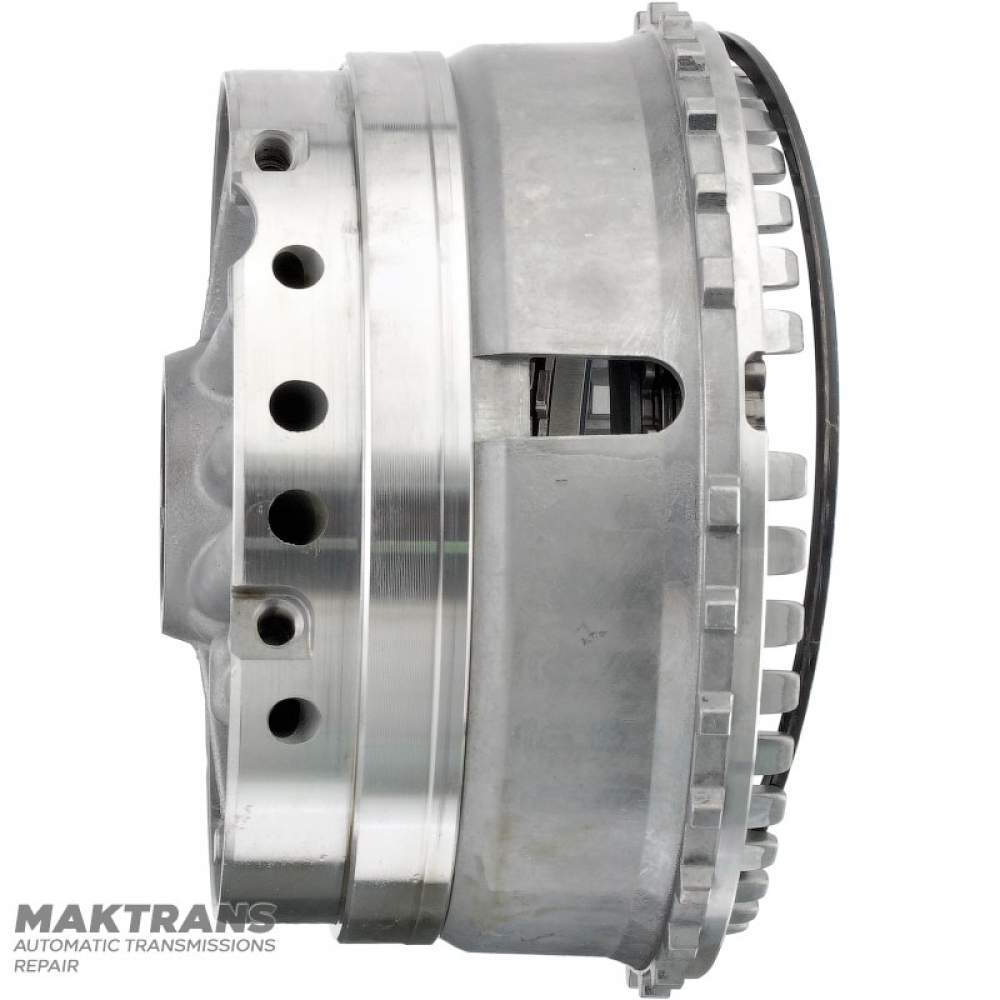

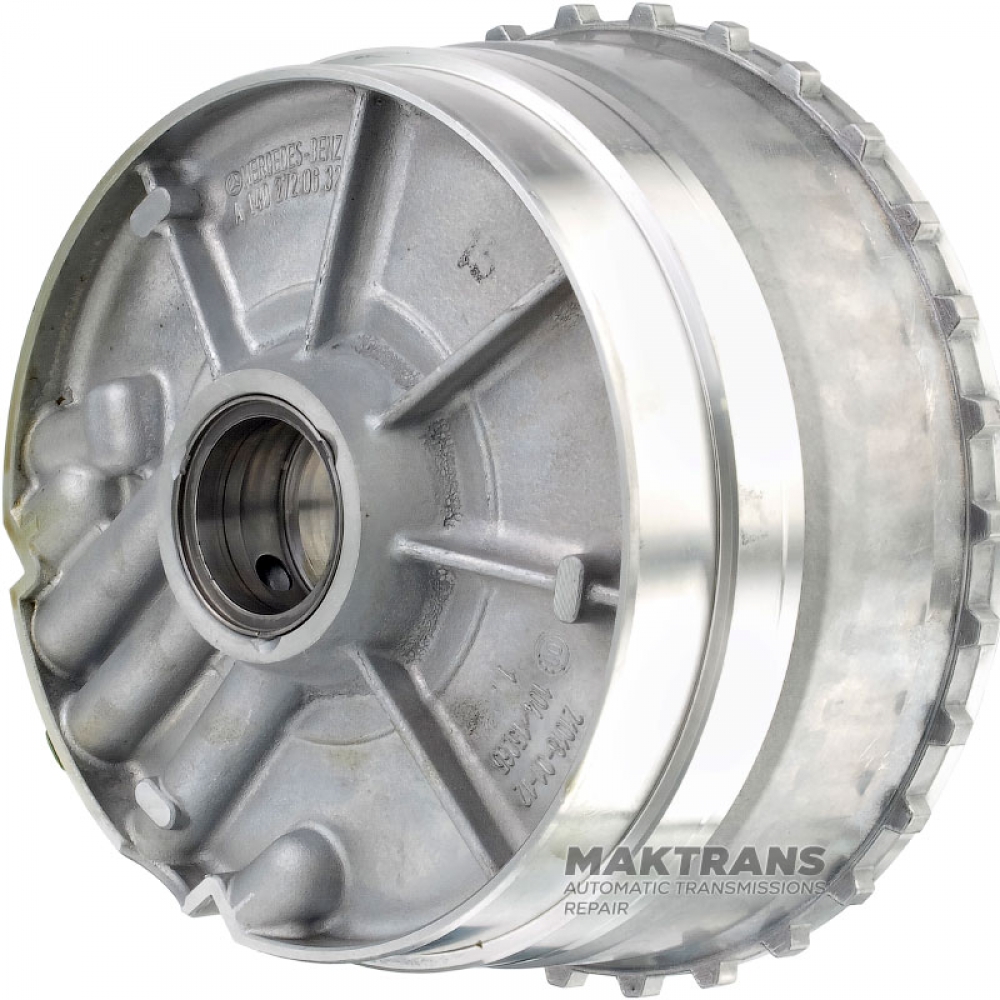

Drum B2 Brake Mercedes-Benz 722.6 A1402720632 A1402720732 - total height 110 mm, 4 friction (double-sided) discs (total thickness of the set 20.15 mm)

Drum:

• Overall height - 110 mm;
• Tooth height - 8.5 mm;
• Height from piston to retaining ring - 22 mm;
• Inner hole diameter - 35.60 mm;

B2 Brake Steel and Friction Disc Set:

• The total thickness of the set is 20.15 mm;

Support disk:

• Thickness - 6.40 mm;
• Number of teeth - 40 pcs.;
• Inner diameter - 132.05 mm;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.60 mm;
• Number of teeth - 40 pcs.;
• Inner diameter - 133 mm;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.75 mm;
• Number of teeth - 24 pcs.;
• Outer diameter - 155 mm;
• Number of discs in the set - 3 pcs.;

Steel disk:

• Thickness - 1.75 mm;
• Number of teeth - 40 pcs.;
• Outer diameter - 133 mm;
• Number of discs in the set - 1 pc.;

Spring disc:

• Thickness - 2 mm;
• Number of teeth - 4 pcs.;
• Inner diameter - 133 mm;
• Number of discs in the set - 1 pc.;
