Main Specifications
Condition (used, new):
used and inspected
Type:
drum B2 Brake
Equipment level:
drum assembly with pistons and a set of steel and friction discs
Number of friction plates:
4
If you order more than 1 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 1 pcs. |
  |
| Ukraine | 1 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (1)

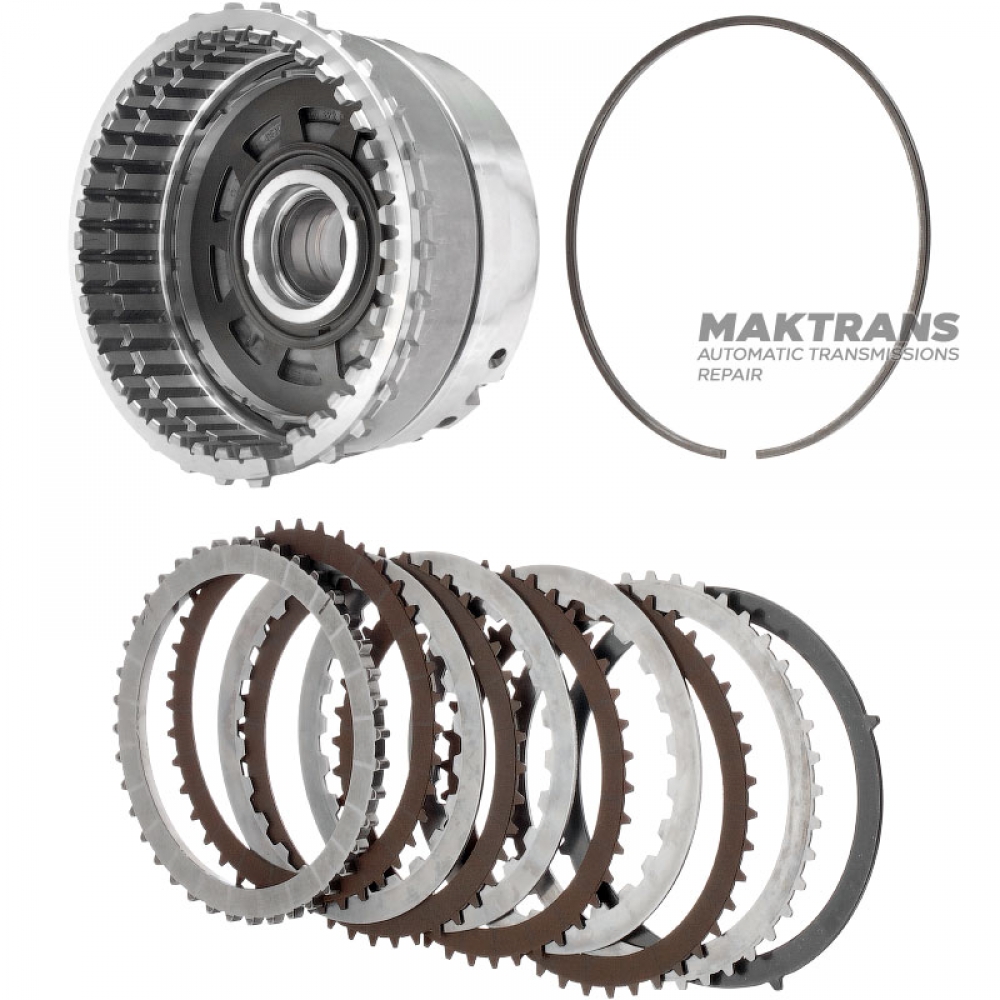

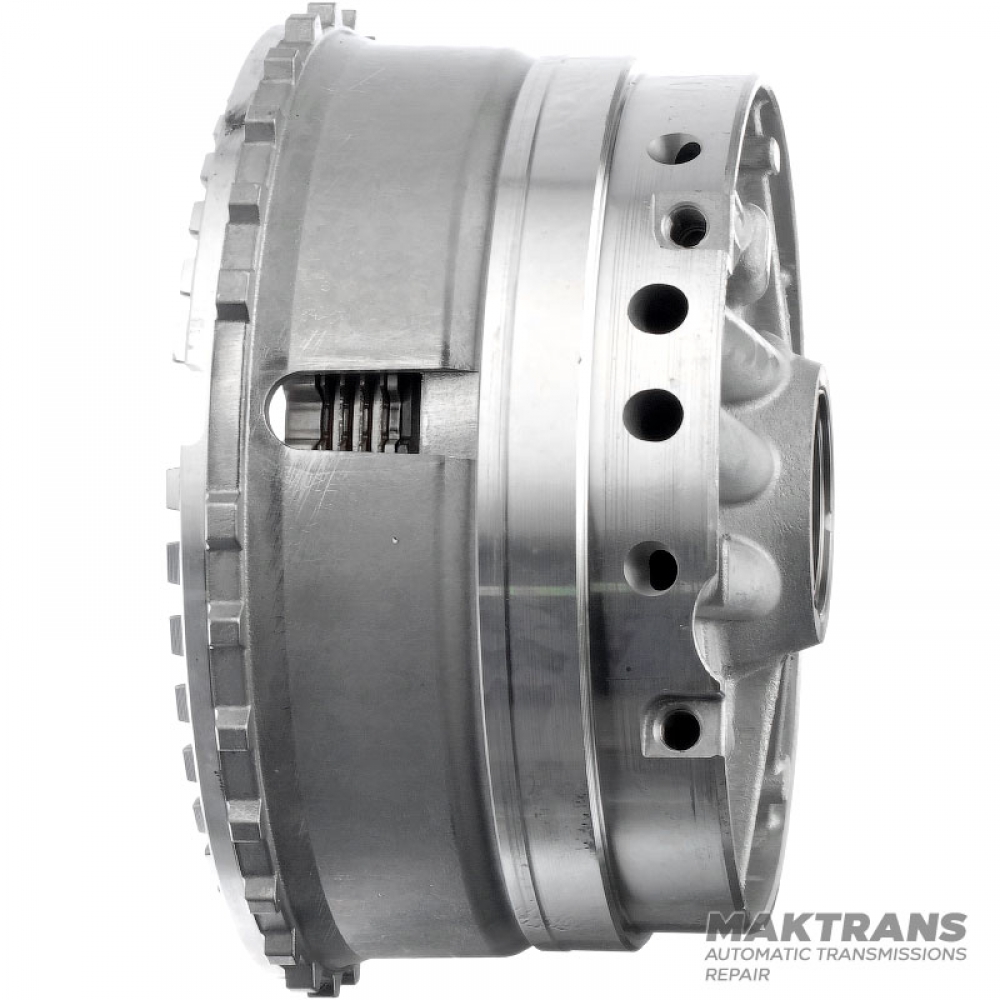

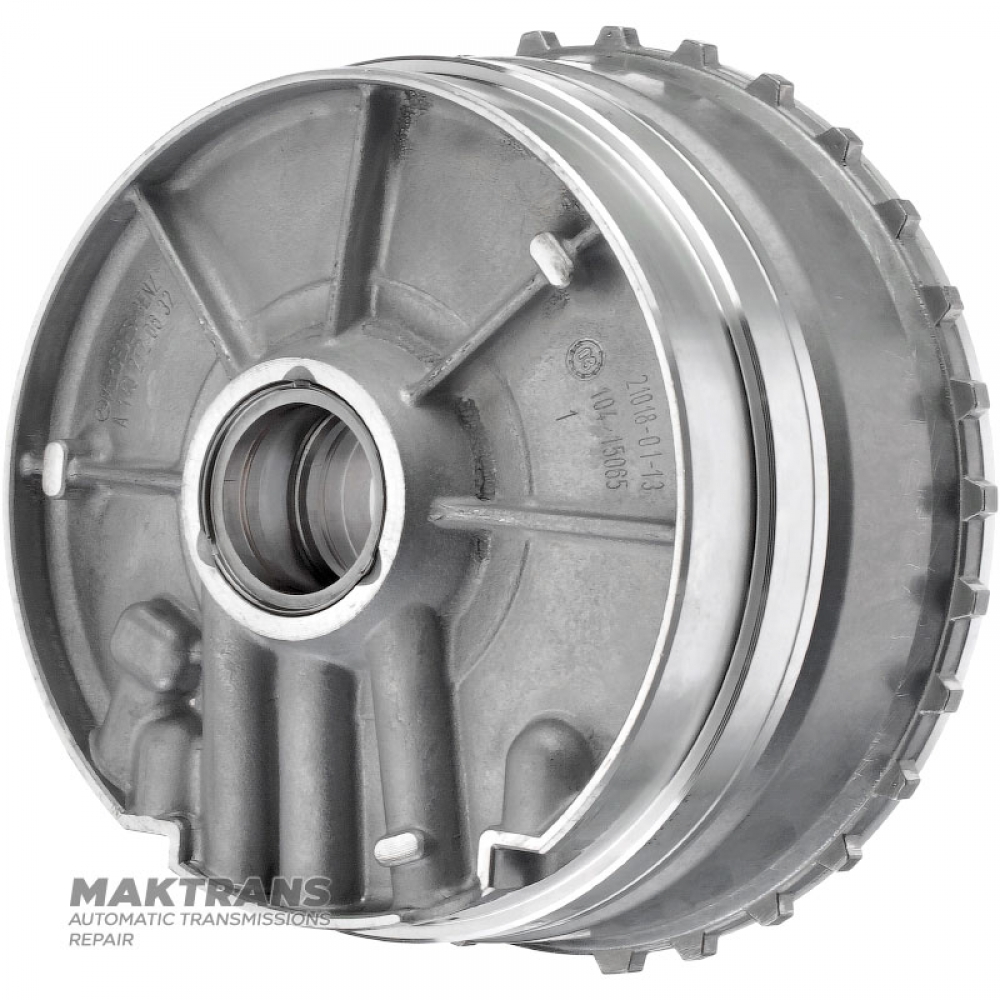

Drum:
- Total height - 106 mm;
- Tooth height - 4.5 mm;
- Height from piston to retaining ring - 22 mm;
- Inner hole diameter - 35.60 mm;
B2 Brake Steel and Friction Disc Set:
- The total thickness of the set is 20.30 mm;
Support disk:
- Thickness - 6.24 mm;
- Number of teeth - 40 pcs.;
- Inner diameter - 132.05 mm;
- Number of disks included - 1 piece;
Friction disc:
- Thickness - 1.60 mm;
- Number of teeth - 40 pcs.;
- Inner diameter - 133 mm;
- Number of discs included - 4 pcs.;
Steel disc:
- Thickness - 1.80 mm;
- Number of teeth - 24 pcs.;
- Outer diameter - 155 mm;
- Number of discs included - 3 pcs.;
Steel disc:
- Thickness - 1.80 mm;
- Number of teeth - 40 pcs.;
- Outer diameter - 133 mm;
- Number of disks included - 1 piece;
Spring disc:
- Thickness - 2 mm;
- Number of teeth - 3 pcs.;
- Inner diameter - 133 mm;
