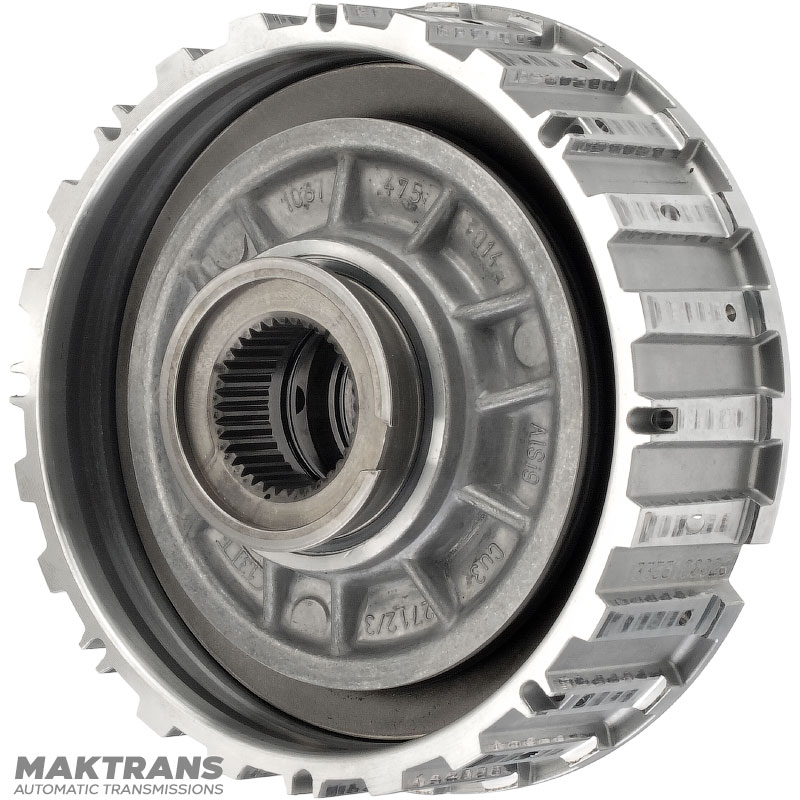

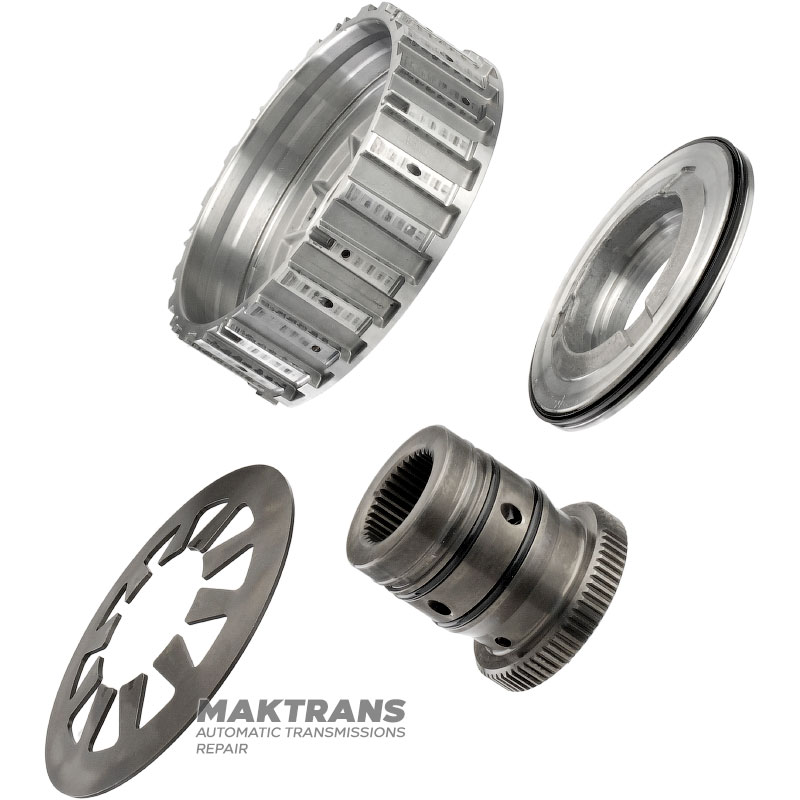

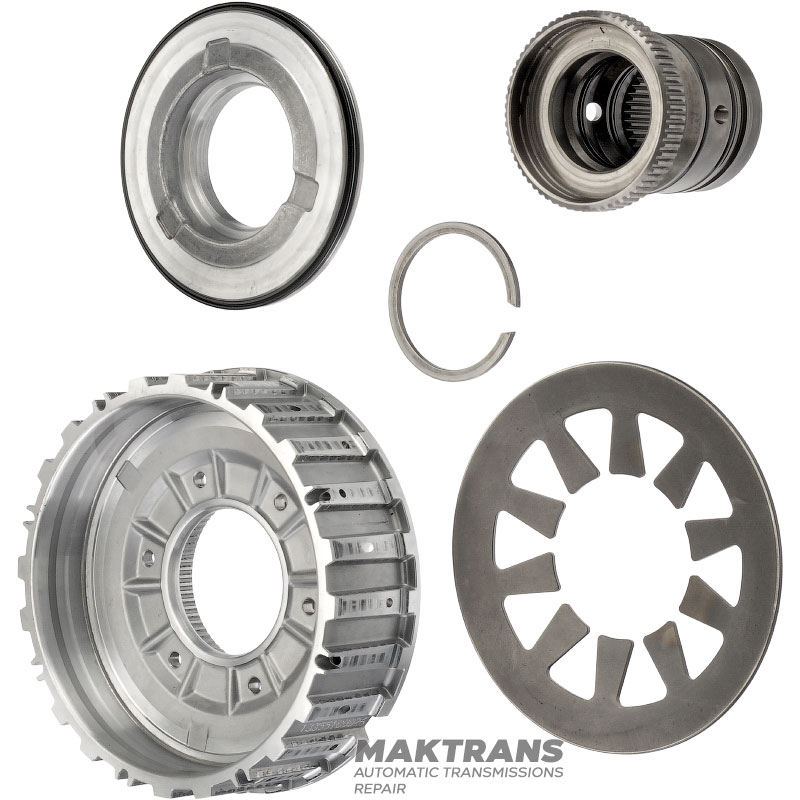

Drum C Clutch ZF 8HP55A, 8HP65A, 8HP70, 8HP75 — empty, without discs and rubber-coated piston, 1087475035, 1087475014

Drum C Clutch:

• Overall height - 43 mm;
• Outer diameter - 135.65 mm;
• Number of splines on the inner side - 66 pcs.;

Hub:

• Overall height - 57.30 mm;
• Number of splines on the outer side - 66 pcs.; | outer Ø of the splined part 54.70 mm;
• Number of splines on the inner side - 35 pcs.;

Return spring:

• Thickness - 1.80 mm;
• Outer diameter - 114.40 mm;

Piston (aluminum):

• Overall height - 18.70 mm;
• Outer diameter - 95.65 mm;
• Inner diameter - 44.80 mm;
• Part number - 1087475014;
