Main Specifications
Condition (used, new):
used and inspected
Type:
Drum C/D Clutch
Number of friction plates:
4
Spare part number(s):
9L3P-7L328-AB
If you order more than 2 pcs - shipping time will be longer at few days
| Stock Place: | Availability: | Qty: |
| Slovakia | 2 pcs. |
  |
| Ukraine | 5 pcs. |
|
- Product overview
- Shipping & Payment
- Questions - Answers (0)
- Gearbox works better with (3)
Drum:
- Overall height - 114 mm;
- Drum outer diameter - 202.35 mm;
- Inner hole diameter - 46.15 mm;
- Height from piston to retaining ring -

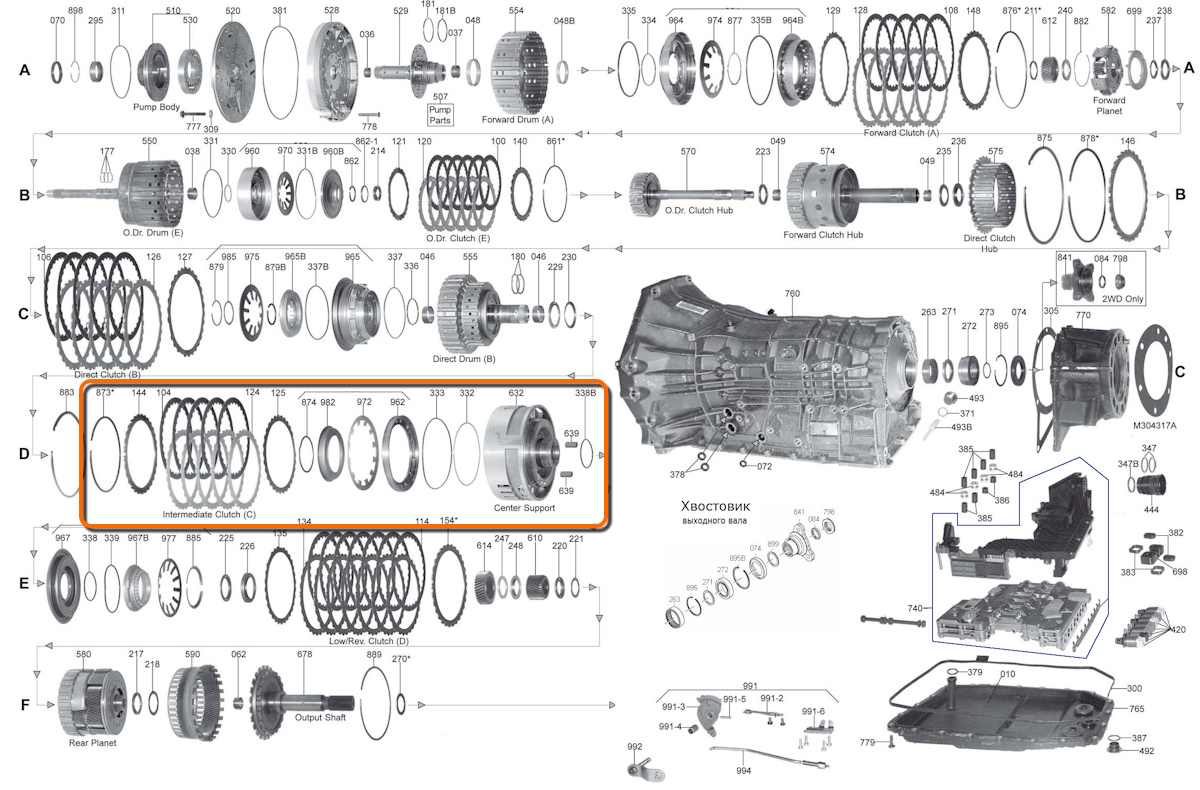

INTERMEDIATE Clutch Steel and Friction Disc Set:
Support disk:
- Thickness - 3.90 mm / 5.20 mm;
- Inner diameter - 163.45 mm;
- Number of teeth - 30 pcs.;
- Number of discs in the set - 1 pc.;
Friction disc:
- Thickness - 2.20 mm;
- Outer diameter - 185.85 mm;
- Number of teeth - 30 pcs.;
- Number of discs in the set - 4 pcs.;
Steel disk:
- Thickness - 3.05 mm;
- Inner diameter - 163.70 mm;
- Number of teeth - 30 pcs.;
- Number of discs in the set - 4 pcs.;
Spring disc:
- Thickness - 1.05 mm;
- Inner diameter - 163.85 mm;
- Number of teeth - 28 pcs.;
- Number of discs in the set - 1 pc.;
