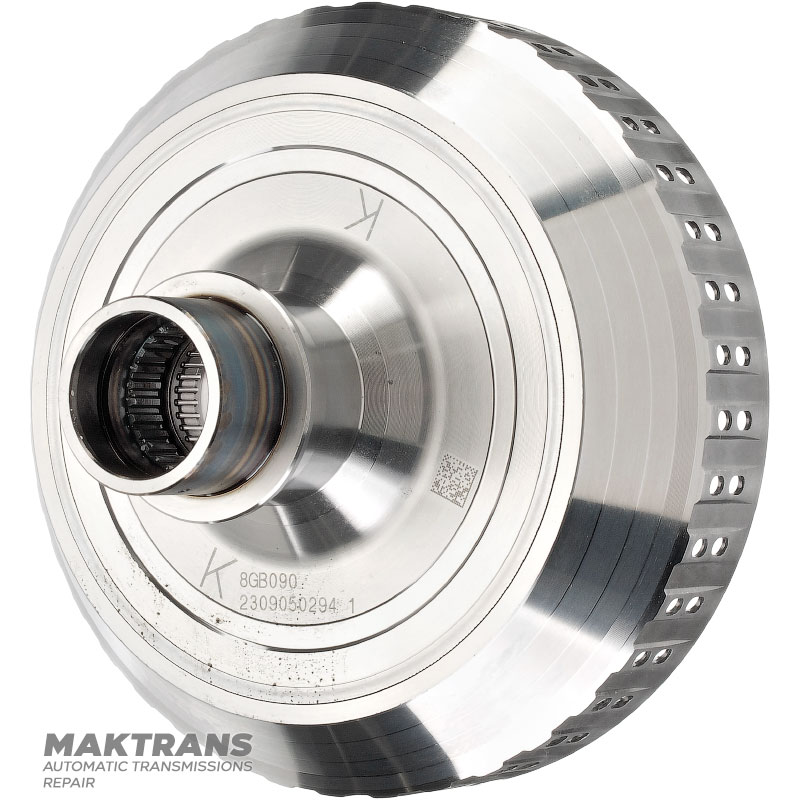

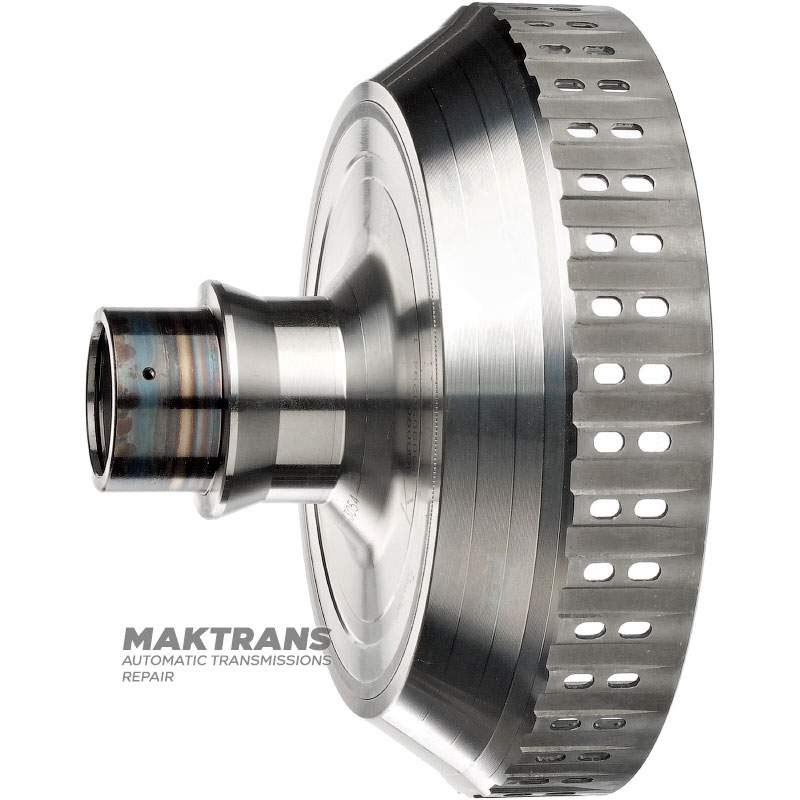

Drum C1 Clutch AISIN WARNER AWF8G30 - 4 friction discs (total thickness of the set 17.60 mm)

• Overall height - 103 mm;
• Outer diameter of the neck - 37.50 mm;
• Drum outer diameter - 162.80 mm;
• Number of splines on the inner side - 28 pcs.;
• Height from piston to retaining ring - 18 mm;

• The total thickness of the set is 17.60 mm;

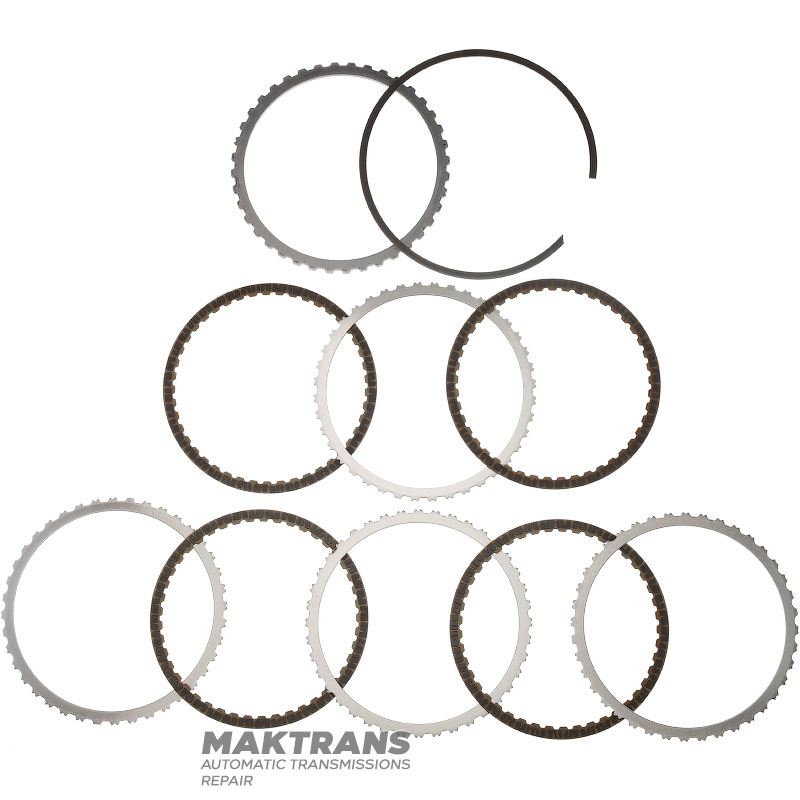

Support disk:

• Thickness - 4.30 mm;
• Inner diameter - 139.75 mm;
• Number of teeth - 40 pcs.;
• Number of disks in the set - 1 piece;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 152.90 mm;
• Number of teeth - 45 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.85 mm;
• Inner diameter - 139.65 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 4 pcs.;
