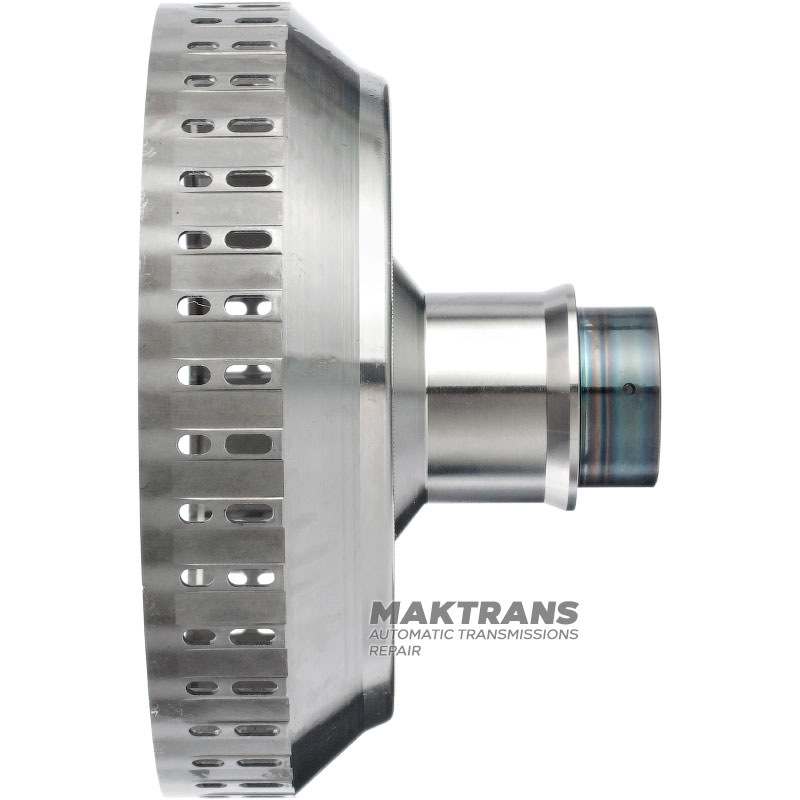

Drum C1 Clutch TOYOTA \ LEXUS UA81E UA81F - 5 friction discs

• Overall height - 106 mm;
• Number of splines on the inner side - 32 pcs.;
• Drum outer diameter - 171.50 mm;
• Height from piston to retaining ring - 22 mm;

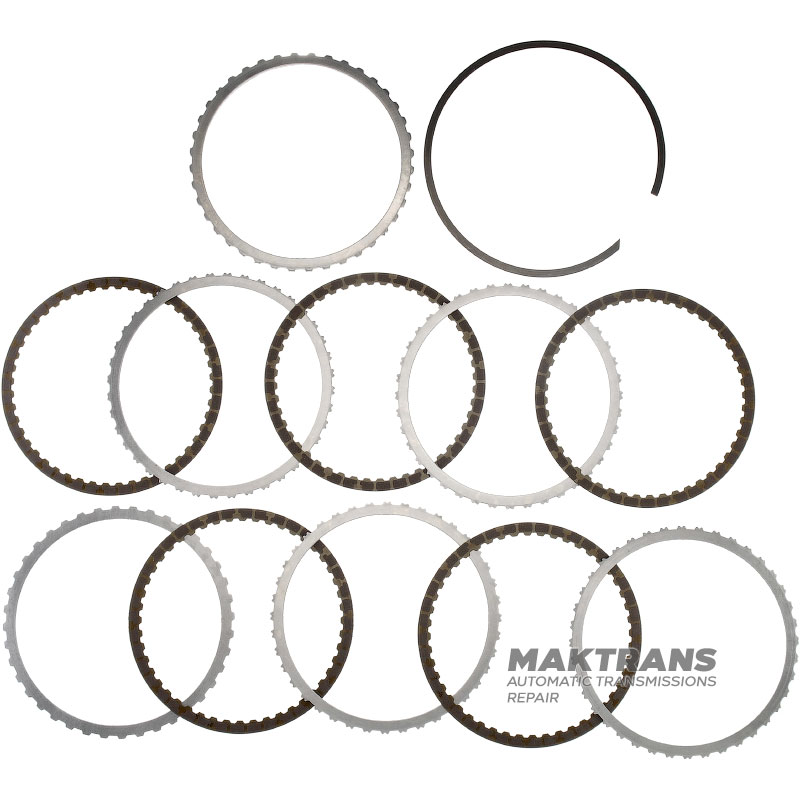

C1 Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 21 mm;

Support disk:

• Thickness - 4.65 mm;
• Inner diameter - 148.30 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 162.80 mm;
• Number of teeth - 48 pcs.;
• Number of teeth in the set - 5 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 148.30 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 4 pcs.;

Pressure disc:

• Thickness - 1.40 mm;
• Inner diameter - 148.30 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;
