Drum C2 Clutch / C3 Clutch TOYOTA / LEXUS A750E, A750F, A760E, A760F — C2 Clutch (4 friction discs, total kit thickness 18.75 mm) / C3 Clutch (5 friction discs, total kit thickness 24.20 mm)

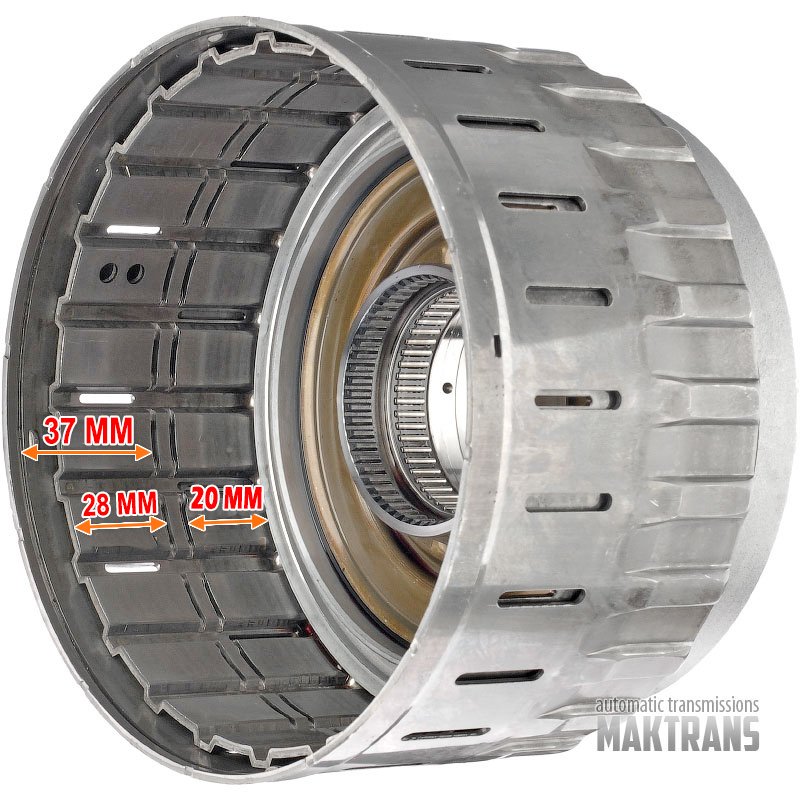

Drum:

• Overall height - 123 mm;
• Drum outer diameter - 180.10 mm;
• Number of splines on the inner side - 57 pcs.;
• Inner diameter under the drum hub - 67.59 mm;

C3 Steel and Friction Disc Set (Reverse):

• Total thickness of the set (without aluminum and spring disc) - 24.20 mm;

Aluminum support disc:

• Thickness - 9.65 mm;
• Outer diameter - 174.65 mm;
• Inner diameter - 149.20 mm;

Support disk:

• Thickness - 3.10 mm;
• Inner diameter - 148.90 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 2.40 mm;
• Inner diameter - 149.40 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 161.80 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 5 pcs.;

Pressure disc:

• Thickness - 3 mm;
• Inner diameter - 149.40 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Spring disc:

• Thickness - 1.50 mm;
• Inner diameter - 151.35 mm;
• Number of teeth - 4 pcs.;
• Number of discs in the set - 1 pc.;

Set of steel and friction discs C2 (Direct):

• The total thickness of the set is 18.75 mm;

Support disk:

• Thickness - 3.65 mm;
• Inner diameter - 149 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 1..80 mm;
• Inner diameter - 149.15 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 5 pcs.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 161.85 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 4 pcs.;
