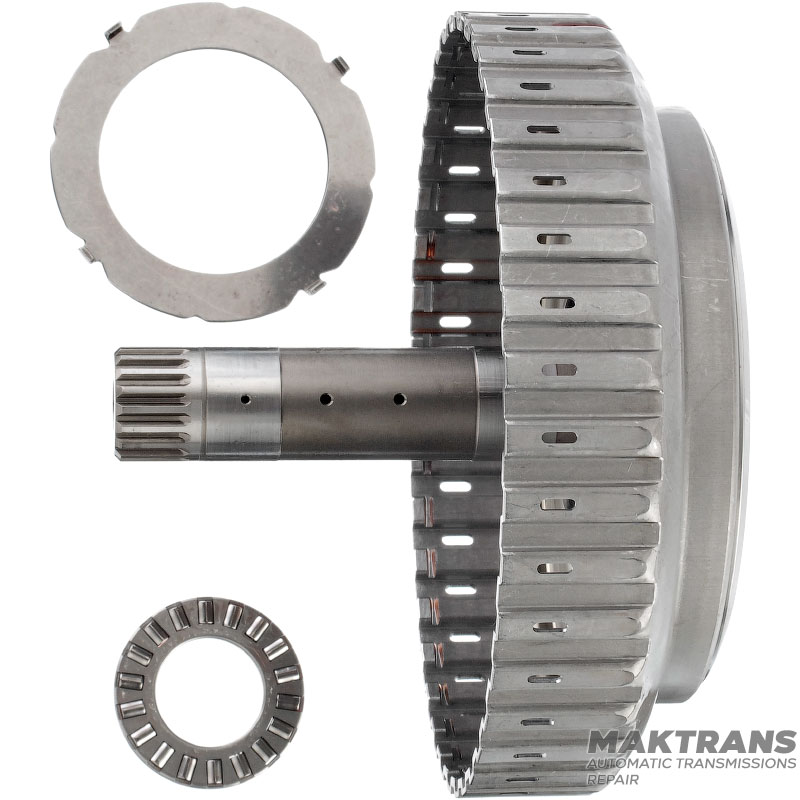

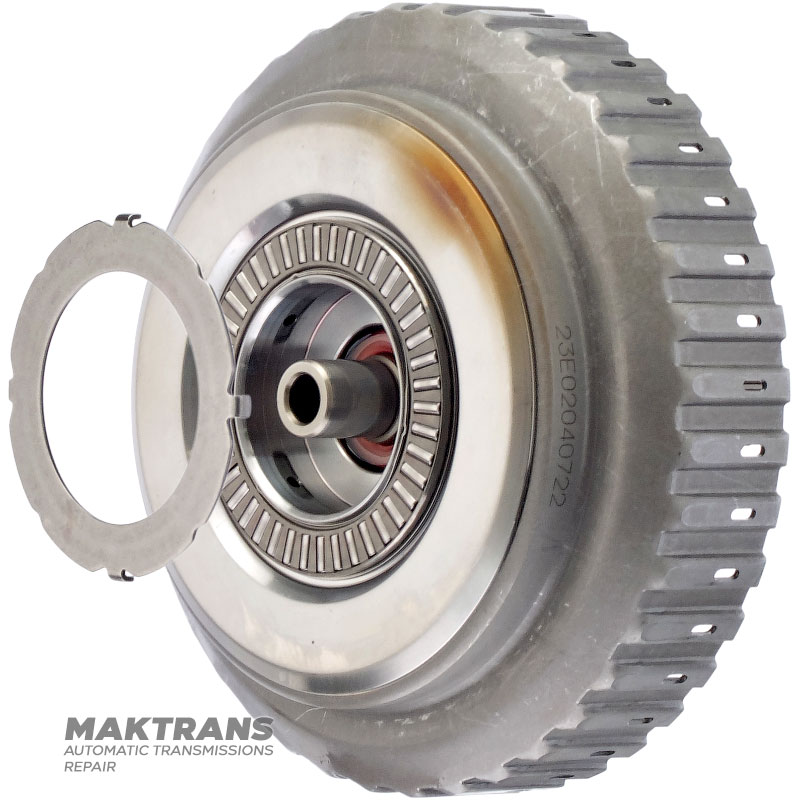

Drum C2 Clutch TOYOTA \ LEXUS UA81E UA81F - overall height 127 mm, 4 friction discs

• Overall height - 127 mm;
• Number of splines on the shaft - 18 pcs.;
• The outer diameter of the splined part is 24 mm;
• The diameter of the working parts of the shaft is 24.15 mm;
• The pilot diameter on the back of the drum is 16.05 mm;

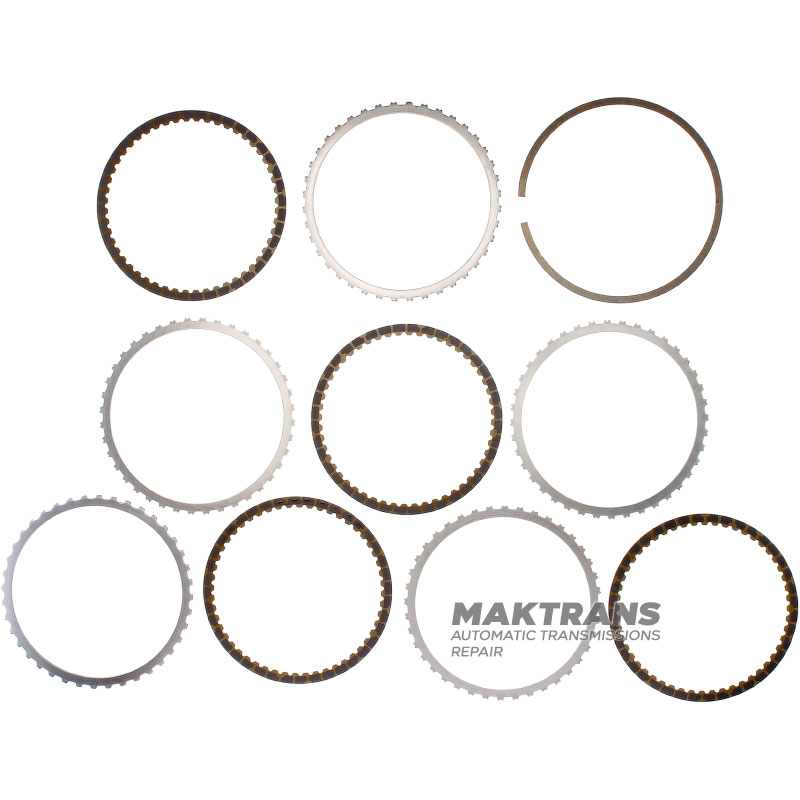

C2 Clutch Steel and Friction Disc Kit:

• The total thickness of the set is 18.45 mm;

Support disk:

• Thickness - 3.95 mm;
• Inner diameter - 140.55 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 153.20 mm;
• Number of teeth - 52 pcs.;
• Number of teeth in the set - 4 pcs.;

Steel disk:

• Thickness - 1.85 mm;
• Inner diameter - 140.60 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 3 pcs.;

Pressure disc:

• Thickness - 3 mm;
• Inner diameter - 140.60 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 1 pc.;
