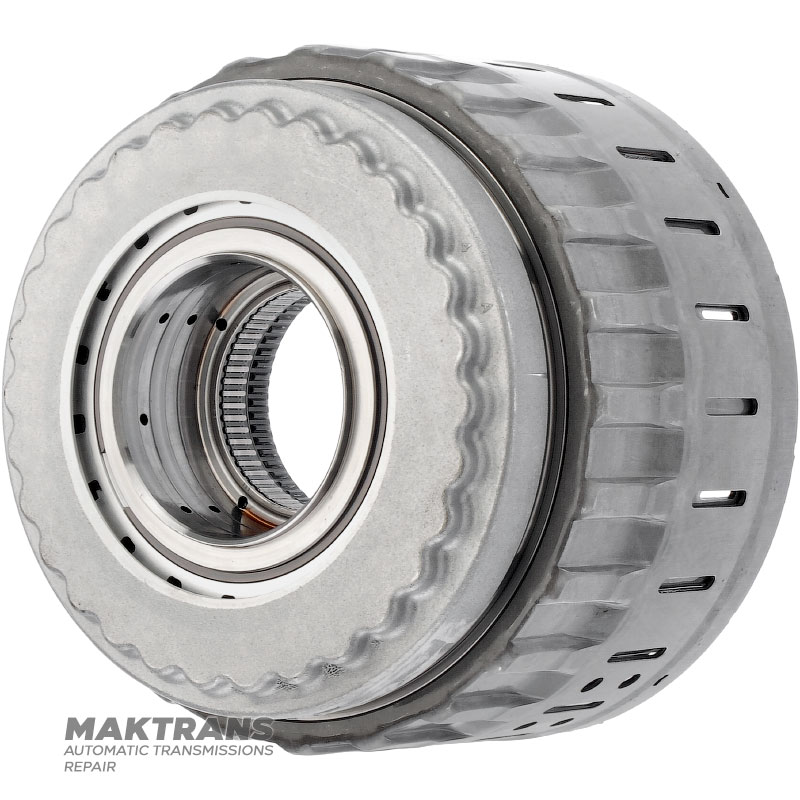

Drum C2 (Direct) / C3 (Reverse) TOYOTA A750 E/F — C2 Clutch (6 friction discs), C3 Clutch (5 friction discs)

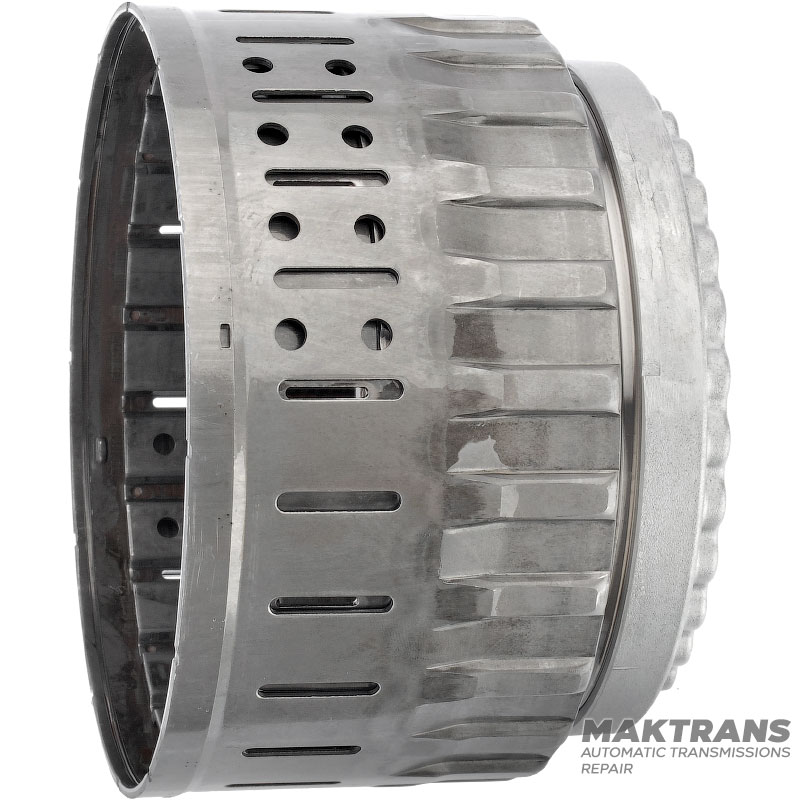

Drum:

• Overall height - 123 mm;
• Drum outer diameter - 180.25 mm;
• Number of splines on the inner side - 57 pcs.;
• Inner diameter under the drum hub - 67.59 mm;

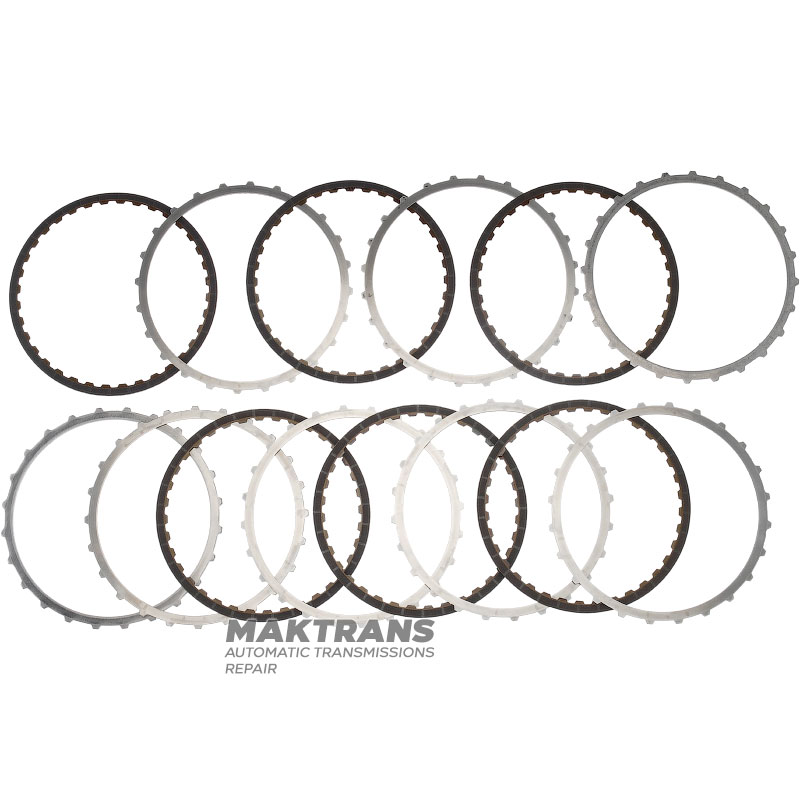

Set of steel and friction discs C2 (Direct):

• The total thickness of the set is 25.40 mm;

Steel disk:

• Thickness - 1.75 mm;
• Inner diameter - 149.15 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 7 pcs.;

Steel disk:

• Thickness - 3.50 mm;
• Inner diameter - 149.15 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 161.85 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 6 pcs.;

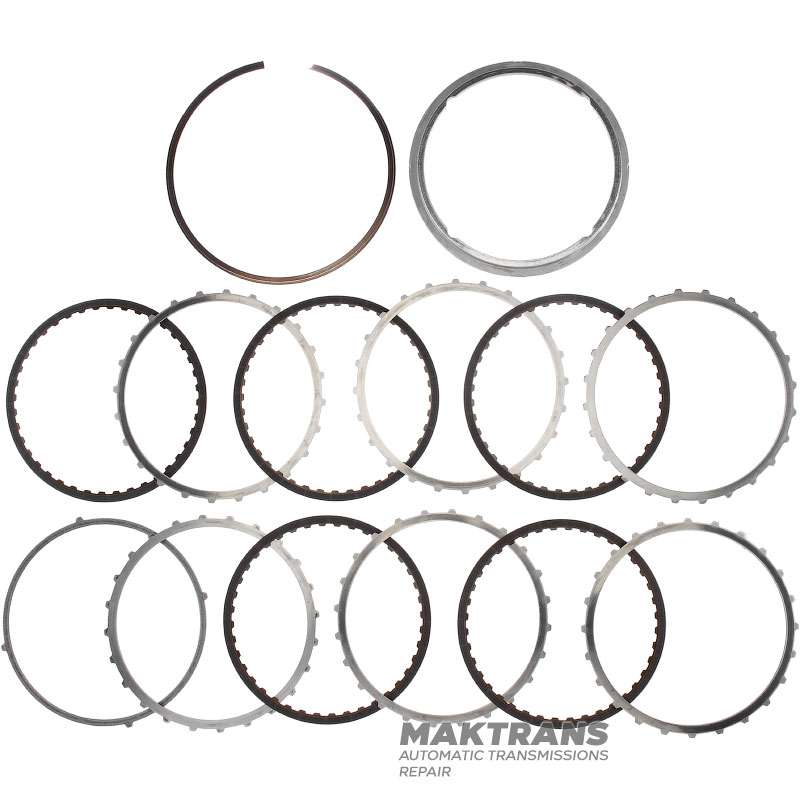

Steel and friction disc set C3 (Reverse):

• Total thickness of the set (without aluminum and spring disc) - 24.40 mm;

Aluminum support disc:

• Thickness - 9.60 mm;
• Outer diameter - 174.65 mm;
• Inner diameter - 149.20 mm;

Steel disk:

• Thickness - 3.25 mm;
• Inner diameter - 149.30 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Steel disk:

• Thickness - 2.40 mm;
• Inner diameter - 149.30 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 3 mm;
• Inner diameter - 149.30 mm;
• Number of teeth - 24 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 161.85 mm;
• Number of teeth - 40 pcs.;
• Number of discs in the set - 5 pcs.;

Spring disc:

• Thickness - 1.45 mm;
• Inner diameter - 151.35 mm;
• Number of teeth - 4 pcs.;
• Number of disks in the set - 1 pc.;

Tags: 3504860010, 9030199147, 9030199141, 3560150030, 9030199149, 9030174002, 3565260021, 3565260020, 3564760010, 3565960020, 35 67260020, 3564860010, 3567760030
