Drum C3 (3 friction discs) / C4 Clutch (4 friction discs) AWF8G45 BMW GA8G4A5AW - engine B47C20B 2.0L (BMW F40 (series 1), BMW F44 / F46 / U06 (series 2), BMW F48 (BMW X1), BMW U10 (X2)

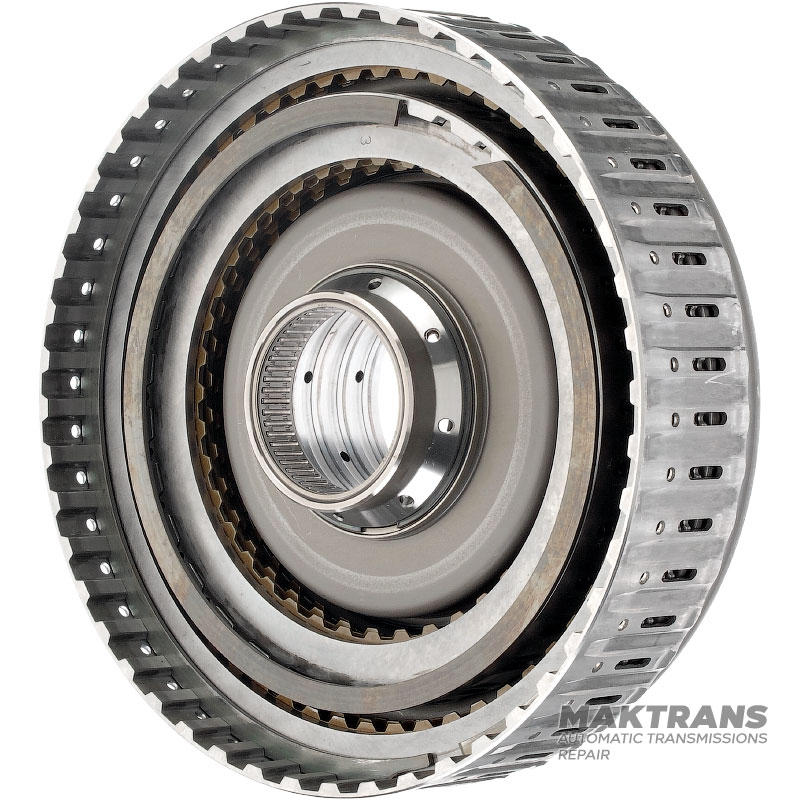

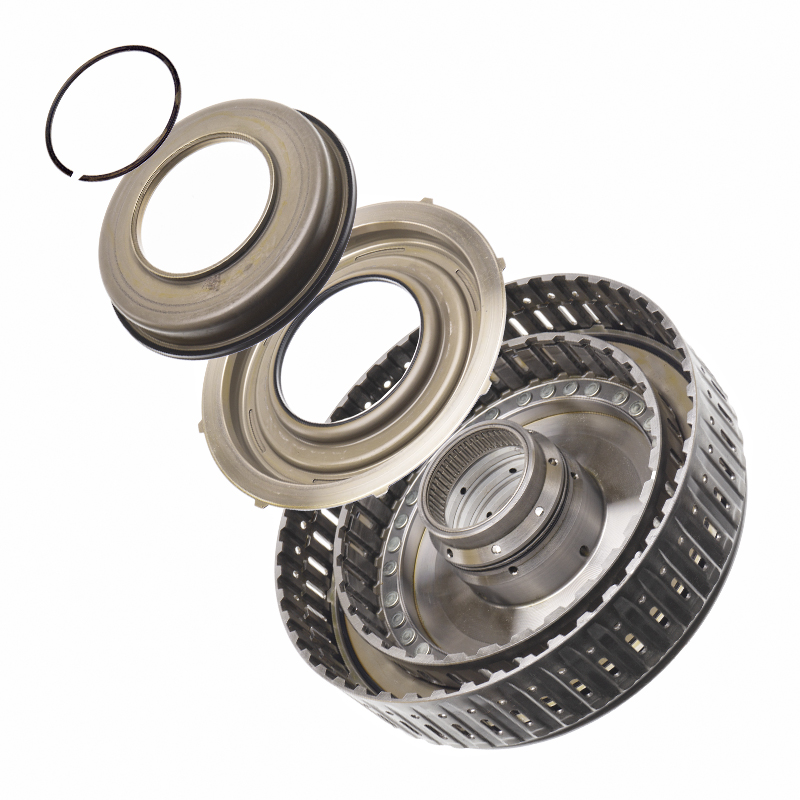

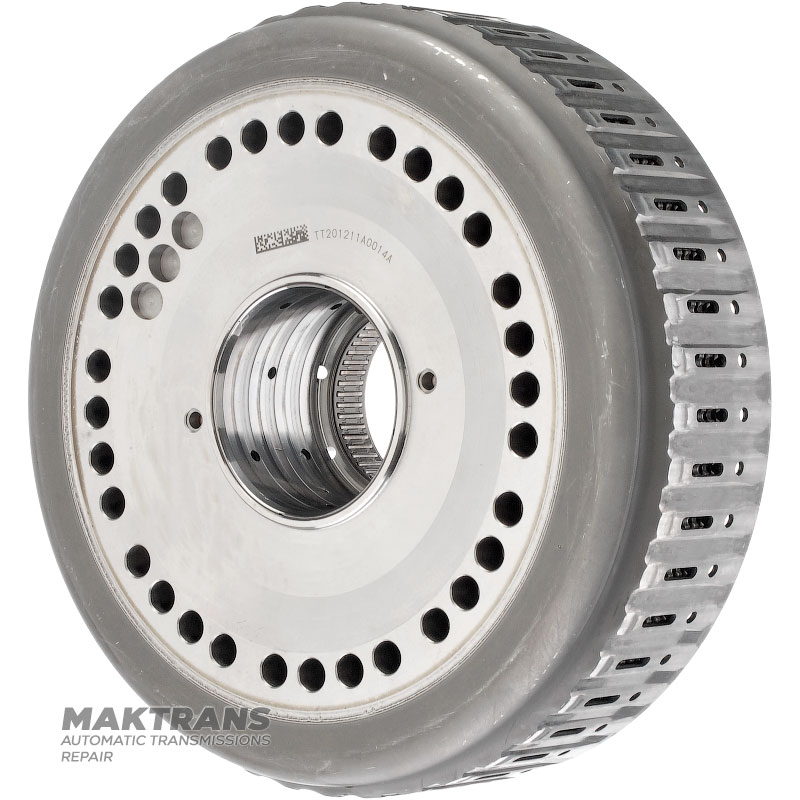

C3/C4 Clutch Drum:

• Overall height - 55 mm;
• Outer diameter - 184.80 mm;
• Inner diameter under the hub - 50.80 mm;
• Needle bearing marking - NSK DB504312W;

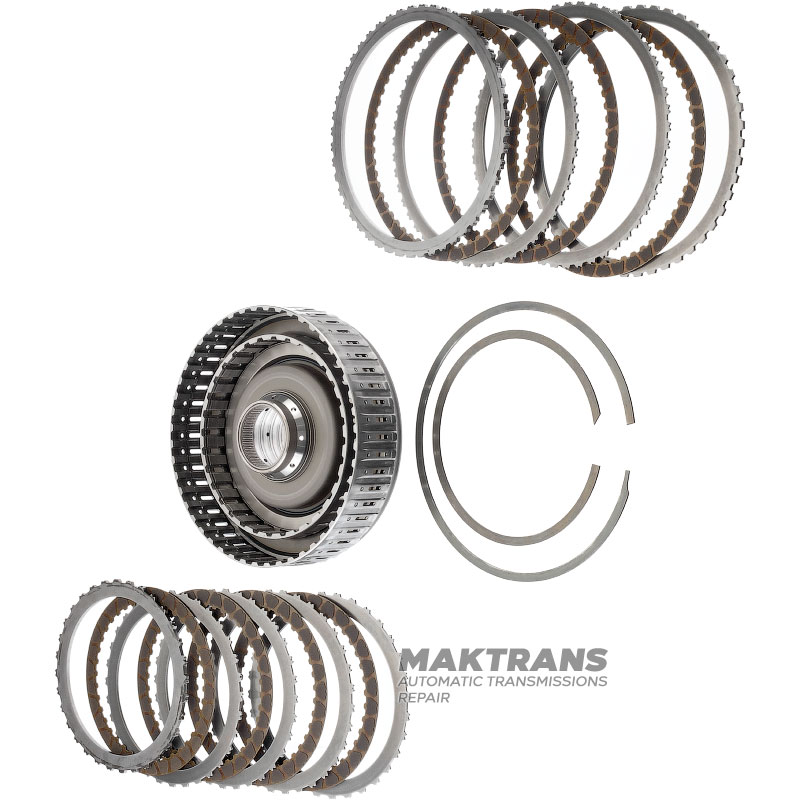

C3 Clutch Steel and Friction Disc Kit:

• Height from piston to retaining ring - 16 mm;
• The total thickness of the set is 15.65 mm;

Support disk:

• Thickness - 4.10 mm;
• Inner diameter - 157.35 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.45 mm;
• Outer diameter - 175.15 mm;
• Number of teeth - 56 pcs.;
• Number of teeth in the set - 3 pcs.;

Steel disk:

• Thickness - 2 mm;
• Inner diameter - 157.25 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 2 pcs.;

Pressure disc:

• Thickness - 3 mm;
• Inner diameter - 157.25 mm;
• Number of teeth - 48 pcs.;
• Number of discs in the set - 1 pc.;

Set of steel and friction discs C4 Clutch:

• The total thickness of the set is 16.50 mm;

Support disk:

• Thickness - 3.35 mm;
• Inner diameter - 114.60 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.50 mm;
• Outer diameter - 135.10 mm;
• Number of teeth - 40 pcs.;
• Number of teeth in the set - 4 pcs.;

Steel disk:

• Thickness - 1.80 mm;
• Inner diameter - 114.55 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 4 pcs.;

The transmission is installed on BMW vehicles with the B47C20B 2.0L Diesel engine:

BMW 1-Series

BMW 1-Series
(08.2019 - present)

hatchback 5 doors, 3rd generation, F40

BMW 2-Series

BMW 2-Series
(10.2019 - present)

restyling, sedan, 1st generation, F44

BMW 2-Series Active Tourer

BMW 2-Series Active Tourer
(06.2022 - present)

hatchback 5 doors, 2nd generation, U06

BMW 2-Series Active Tourer
(06.2018 - 05.2022)

restyling, hatchback 5 doors, 1st generation

BMW 2-Series Gran Tourer

Japan

BMW 2-Series Gran Tourer
(06.2018 - 12.2022)

restyling, minivan, 1st generation, F46

Europe

BMW 2-Series Gran Tourer
(03.2018 - present)

restyling, minivan, 1st generation, F46

BMW 2-Series Gran Tourer
(02.2015 - 01.2018)

minivan, 1st generation, F46

BMW X1

BMW X1
(10.2019 - 01.2023)

restyling, jeep/suv 5 d., 2nd generation, F48

BMW X2

Europe

BMW X2
(10.2023 - present)

jeep/suv 5 doors, 2nd generation, U10

Japan

BMW X2
(04.2018 - present)

jeep/suv 5 doors, 1st generation
