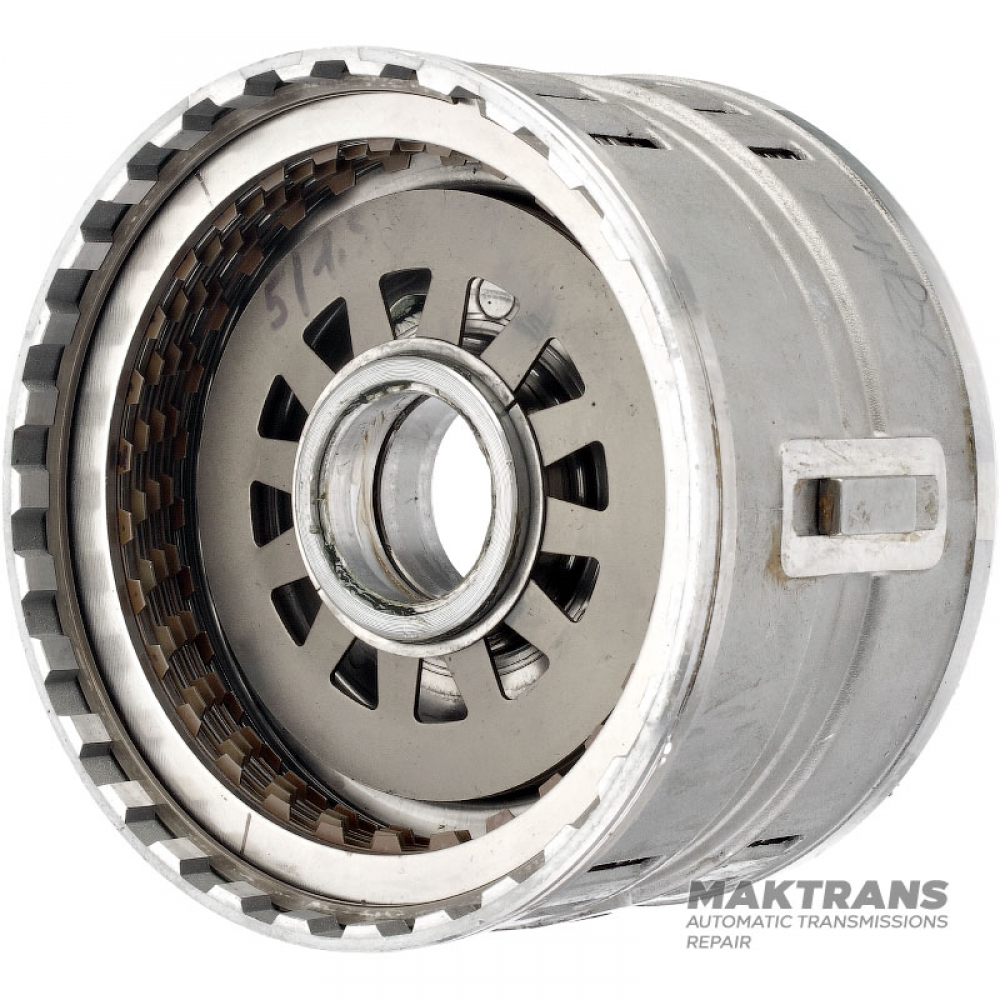

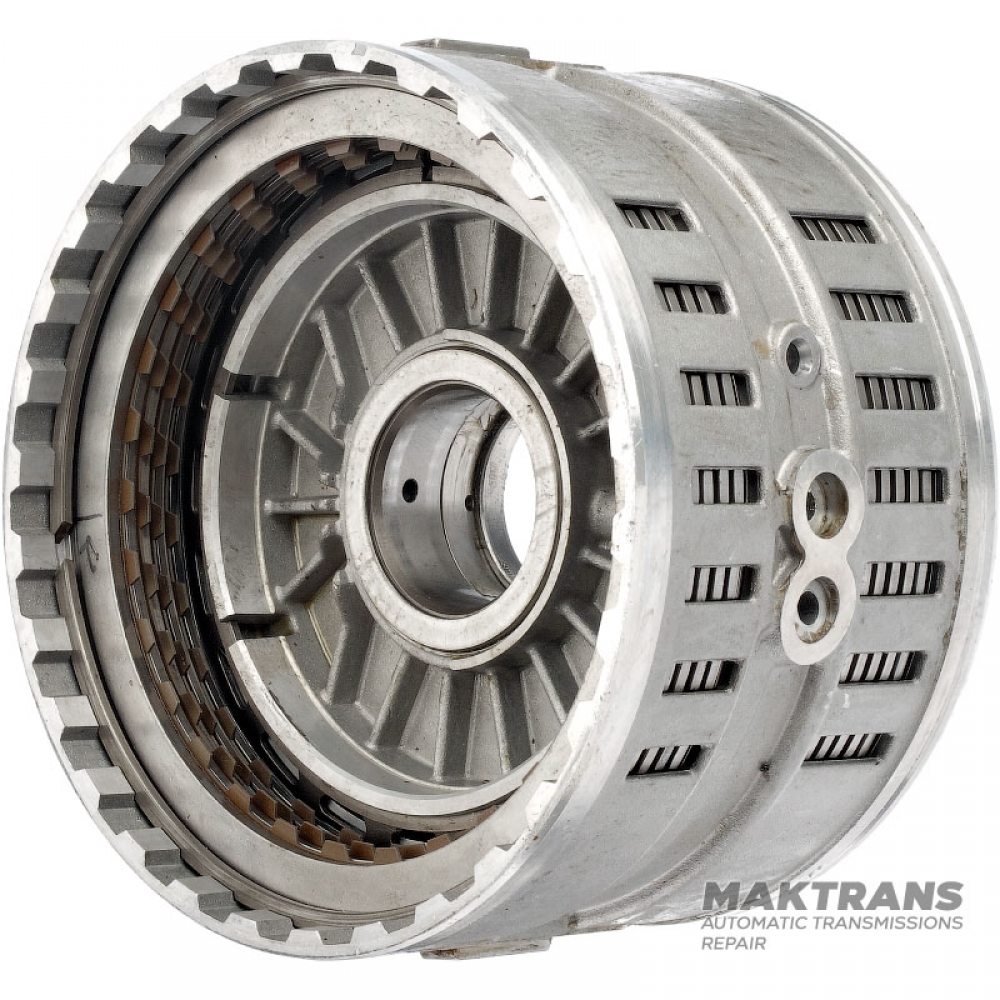

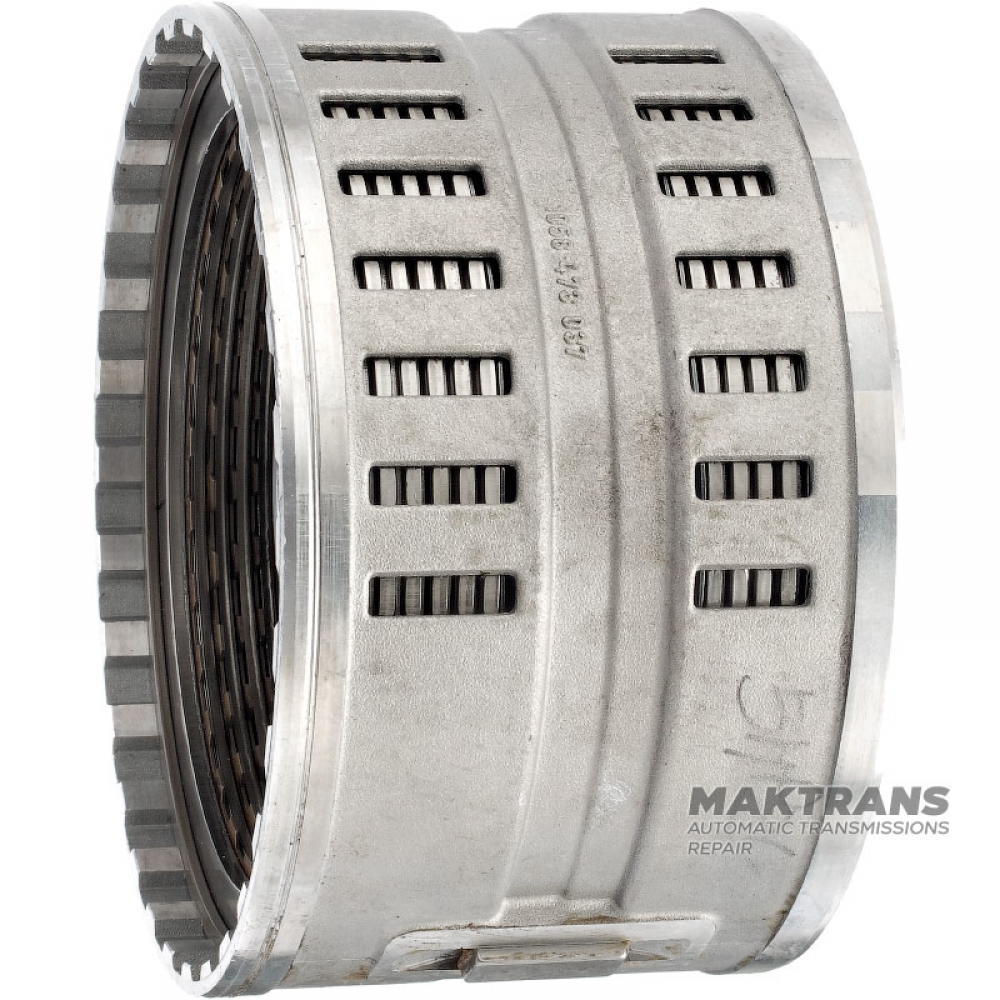

Drum D/E Clutch ZF 5HP24 1058473037 – D Clutch 4 friction discs / E Clutch 5 friction discs

• The total height of the drum is 116 mm;
• The outer diameter of the drum is 194 mm;

• Height from piston to retaining ring - 29 mm;
• The total thickness of the set is 27 mm;

Pressure disk:

• Thickness - 3.85 mm;
• Inner diameter - 154.85 mm;
• Number of teeth - 30 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 1.60 mm;
• Outer diameter - 178.50 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 5 pcs.;

Steel disc:

• Thickness - 3 mm;
• Inner diameter - 154.85 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 5 pcs.;

Spring disc:

• Thickness - 0.80 mm;
• Inner diameter - 154.85 mm;
• Number of teeth - 30 pcs.;
• Number of disks included - 1 piece;

• Height from piston to retaining ring - 24 mm;
• The total thickness of the set is 22.45 mm;

Pressure disk:

• Thickness - 3.95 mm;
• Inner diameter - 154.95 mm;
• Number of teeth - 30 pcs.;
• Number of disks included - 1 piece;

Friction disc:

• Thickness - 1.55 mm;
• Outer diameter - 178.55 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 4 pcs.;

Steel disc:

• Thickness - 3 mm;
• Inner diameter - 154.95 mm;
• Number of teeth - 30 pcs.;
• Number of discs included - 4 pcs.;

Spring disc:

• Thickness - 0.75 mm;
• Inner diameter - 154.95 mm;
• Number of teeth - 30 pcs.;
• Number of disks included - 1 piece;
