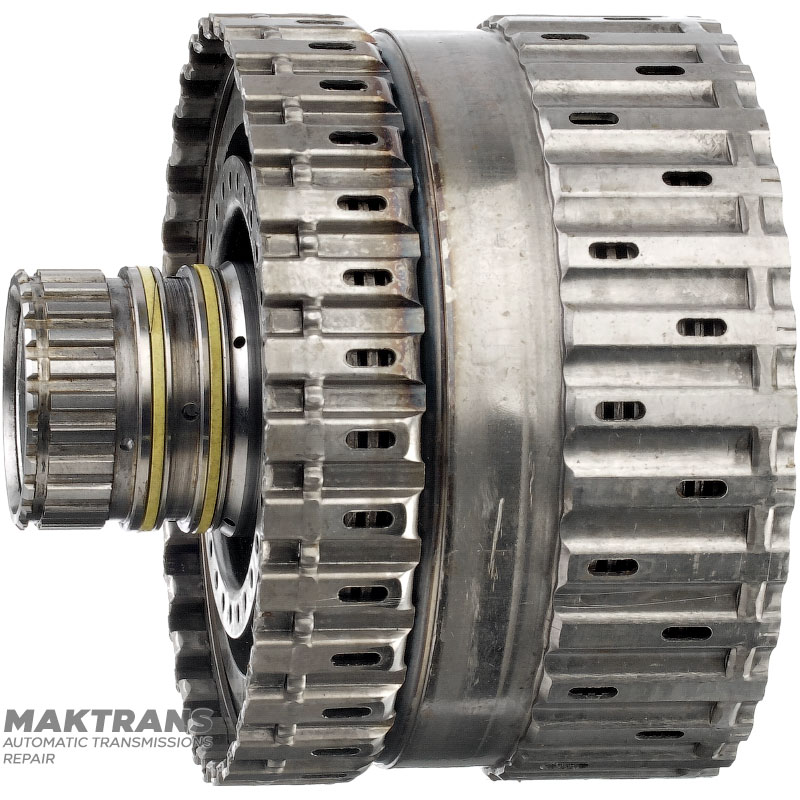

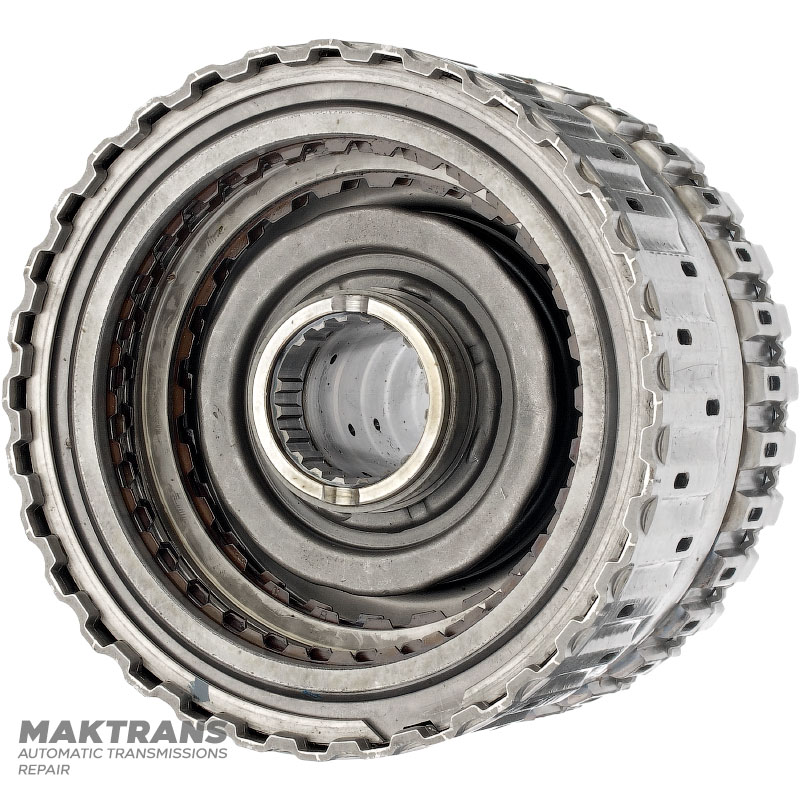

Drum Direct (3 fr.d) / Coast (2 fr.d) / Forward (3 fr.d) Clutch CD4E — 4531200, F5RP-7H232-BC

Direct Clutch:

• Height from piston to retaining ring - 15 mm.;
• The total thickness of the set is 15.03 mm;

Support disk:

• Thickness - 5.85 mm / 4 mm;
• Inner diameter - 104.30 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.70 mm;
• Outer diameter - 134.10 mm;
• Number of teeth - 24 pcs.;
• Number of teeth in the set - 3 pcs.;

Steel disk:

• Thickness - 2.02 mm;
• Inner diameter - 104.25 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 3 pcs.;

Coast Clutch:

• The total thickness of the set is 11.75 mm.;

Support disk:

• Thickness - 4.75 mm;
• Inner diameter - 95.95 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.70 mm;
• Outer diameter - 122.95 mm;
• Number of teeth - 24 pcs.;
• Number of teeth in the set - 2 pcs.;

Steel disk:

• Thickness - 1.77 mm;
• Inner diameter - 95.90 mm;
• Number of teeth - 20 pcs.;
• Number of discs in the set - 2 pcs.;

Forward Clutch:

• Total thickness of the set - 14.20 mm;

Support disk:

• Thickness - 5.90 mm / 4 mm;
• Inner diameter - 108.30 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 1.65 mm;
• Outer diameter - 133.85 mm;
• Number of teeth - 32 pcs.;
• Number of teeth in the set - 3 pcs.;

Steel disk:

• Thickness - 1.77 mm;
• Inner diameter - 108.30 mm;
• Number of teeth - 32 pcs.;
• Number of discs in the set - 3 pcs.;

• Thickness - 1.40 mm;
• Inner diameter - 108.45 mm;
• Outer diameter - 134 mm;
• Number of discs in the set - 1 pc.;
