Drum DIRECT Clutch DODGE / CHRYSLER 46RE, 47RE - 4 friction discs

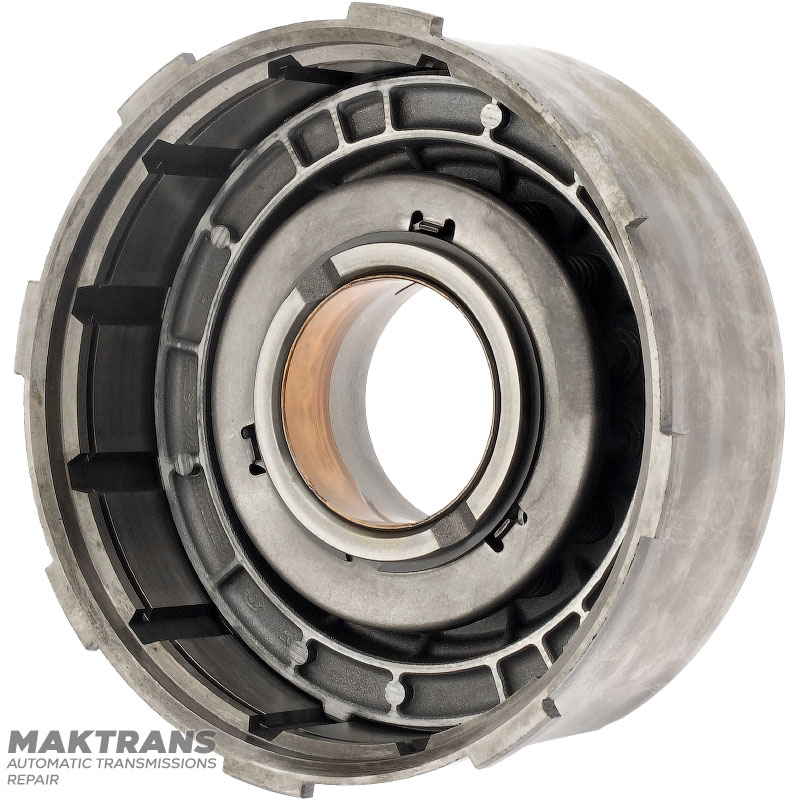

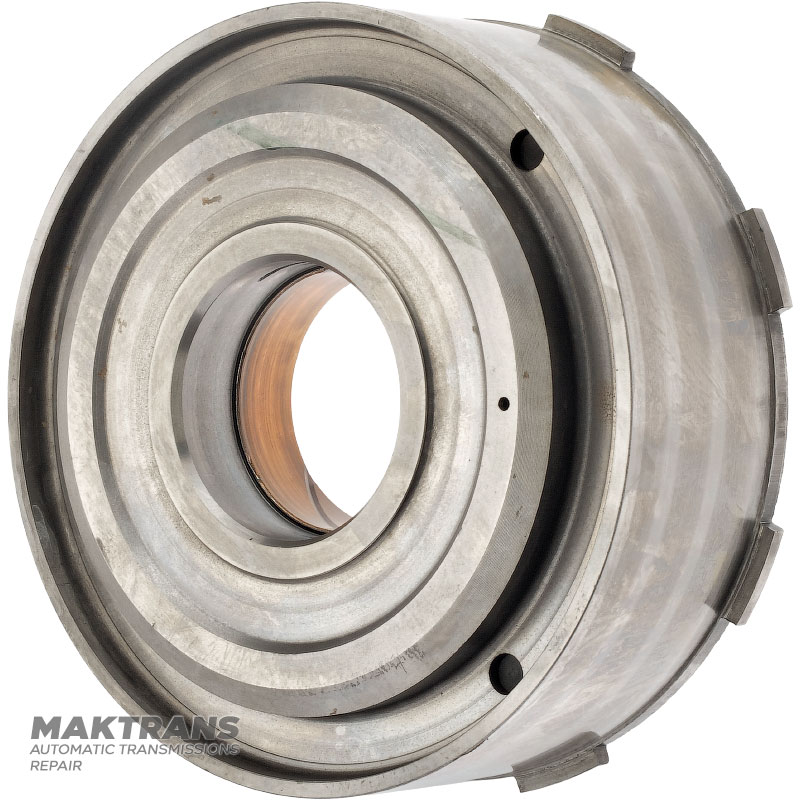

DIRECT Clutch Drum:

• Overall height - 73 mm;
• Number of teeth - 8 pcs.;
• Drum outer diameter - 190.60 mm;
• Inner diameter - 66.80 mm;
• Inner diameter of the sleeve - 63.15 mm;
• Height from piston to retaining ring - 25 mm;

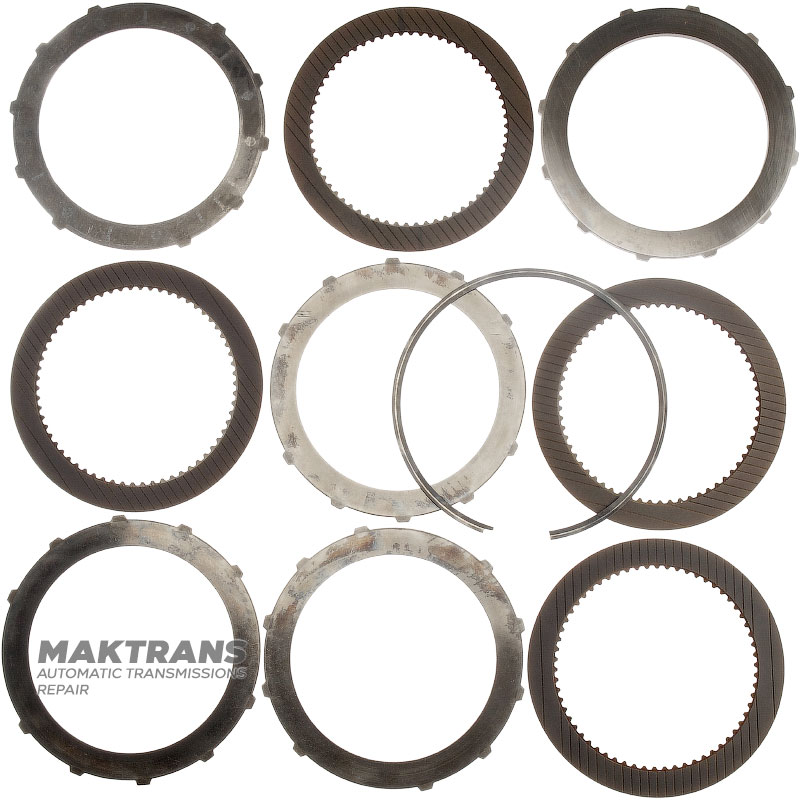

DIRECT Clutch Steel and Friction Disc Set:

• The total thickness of the set is 23.40 mm;

Support disk:

• Thickness - 7.15 mm;
• Inner diameter - 135.50 mm;
• Number of teeth - 12 pcs.;
• Number of discs in the set - 1 pc.;

Friction disc:

• Thickness - 2.25 mm;
• Outer diameter - 170.15 mm;
• Number of teeth - 62 pcs.;
• Number of discs in the set - 4 pcs.;

Steel disk:

• Thickness - 1.75 mm;
• Inner diameter - 135.75 mm;
• Number of teeth - 10 pcs.;
• Number of discs in the set - 3 pcs.;
